Arctic Ocean 2001
Report from streamer test, 26. april 2001

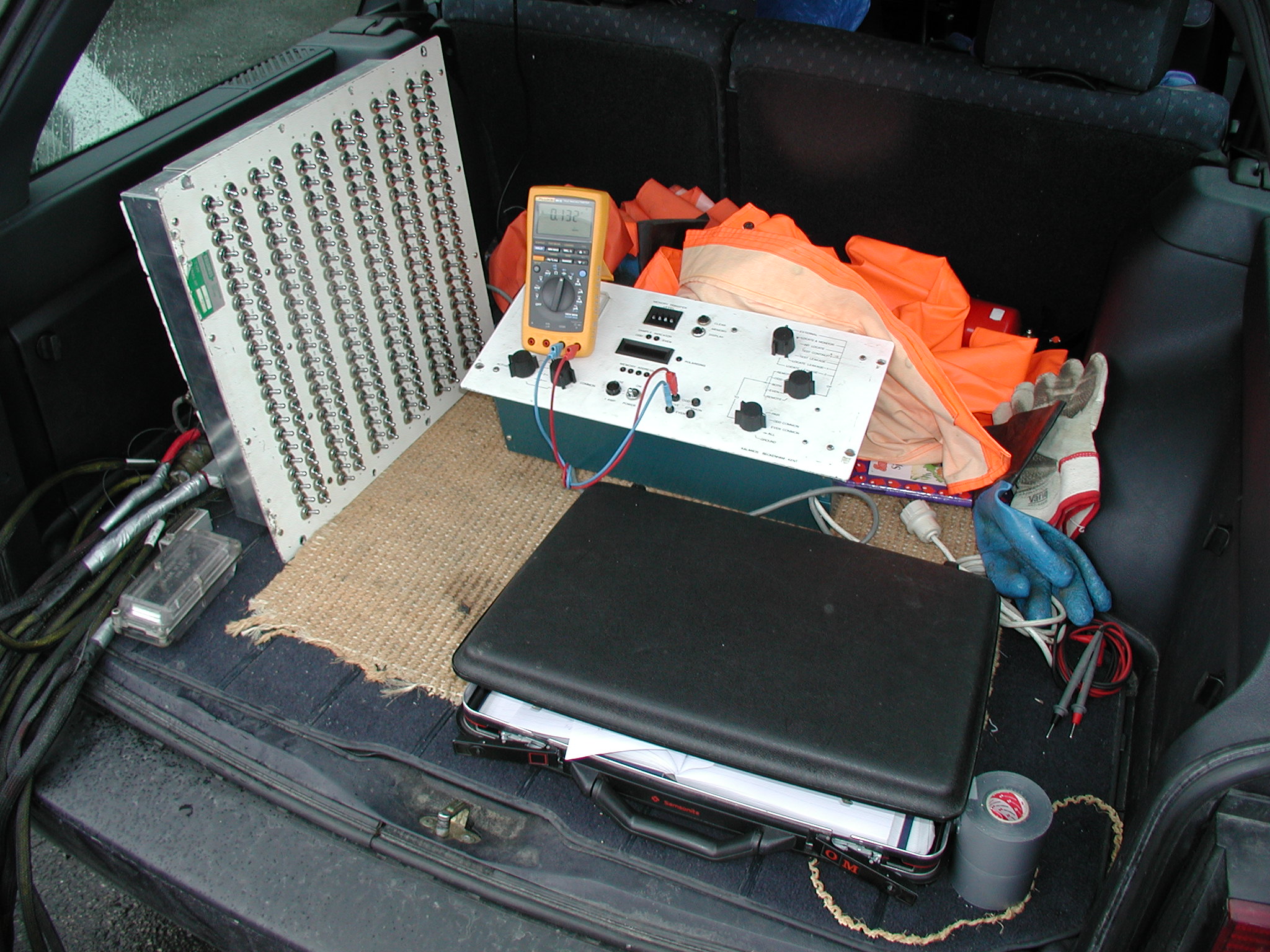

Kalamos switch panel and fault locator. Click image to see larger version.

Date: 26. April 2001.
By: O. Meyer, IFJ, UiB
Other participants: H. Johnsen, IFJ, UiB

Streamer on winch, with this configuration:

1. "Lead-in" = Stretch section, 50 m, S/N: ??
2. Scrambler adapter 25 m GL, 1 m, S/N: ??
3. Active section HSSG, 100 m, S/N: ??
4. Active section HSSG, 100 m, S/N: ??
5. Active section HSSG, 100 m, S/N: ??

Test equipment:

• Kalamos M-4 Fault Locator S/N: w/switch panel
• Multimeter Fluke 89-IV, measuring capacitance.

Test setup:

     _______________             ______________
    |               |           |               |
    |    Kalamos    |___________|  Multimeter   |
    | Fault Locator |           |  Fluke 89-IV  |
    |_______________|           |_______________|
            |
            |
     _______|_______   _               _   _ ___________________         _   ____________________ _ _ _ _
    |               | | |             | | | |                   |       | | | |
    |    Kalamos    | | |_____________|A| |A|  Winch slip ring  |_______|A| |A|     Streamer
    | Switch panel  | | |             | | | |       unit        |       | | | |"lead-in" section
    |_______________| |_|             |_| |_|___________________|       |_| |_|___________________ _ _ _ _

                        Interconnecting
                             cable


  A = GX600 conn

1. Capacitance test

• SW1 = EXTERNAL
• Multimeter to output labelled "ACTIVE"
• B switch down, for each trace
• 25 m Group Length >> 90 nF group capacitance on HSSG sections

Results:

Conclusion: OK
