The Project Plan is a document fulfilling the requirements contained in the Quality Assurance System of Field Operations to establish a plan for how the University of Bergen is going to execute the requirements of one or more seismic program(s) in the best possible manner. The Project Plan's main purpose is to communicate the properties of the operations and list Quality Critical activities to be performed in order to execute the planned seismic programs. The aim of this plan is to assist all parties to achieve the required standards in Quality and HSE (Health, Safety, Environmental) aspects.
The Project Plan is documented using six main chapters and each of these chapters serves the following purpose.
This chapter describes the operations. It will provide references of the vehicles and the technique that will be used. Further this chapter will describe the area where the operations are going to take place and list properties and special attributes relating to infrastructure, (rigs, pipelines, roads) climate and conditions (weather, temperatures). The timing of the operations will also be published in this chapter. The seismic work order (SWO) will be in Chapter 6 C together with any technique specific parameters of importance to the project.
This chapter contains the HSE risk analysis which is an assessment of the operational HSE risks (hazards) associated with the operations described in Chapter 1. The purpose of chapter 2 is to demonstrate that these risks have been analysed and further to act as an interface to the operations Safety Case. The fundamental risk-analysis will identify the HSE critical activities that need to be performed so that the seismic program can be executed at known an acceptable risk-profile. Furthermore, chapter 2 contains a summary of the "MOPO" - Manual Of Permitted Operations - which presents guidelines for UiB's adverse weather working policy for the duration of this program. For All Practical Purposes, the UNIS, SAFETY INSTRUCTIONS FOR FIELDWORK AND EXCURSIONS & INSTRUCTIONS FOR USE OF FIELD EQUIPMENT is the overruling safety document.

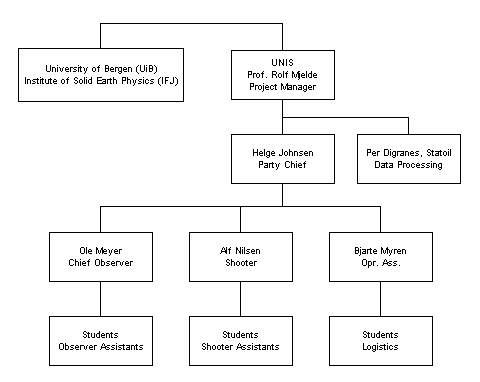

This chapter contains information on the organisations involved in the operations. This information is published by means of organograms showing UNIS and sub functions in the operation of the survey(s). All relevant names, addresses, telephone, Telefax, E-mail and telex numbers are contained in this chapter.
This chapter contains the QA critical activities that must be performed as part of the planning. Each of the activities belong to a process as described in the Acquisition model, and responsible parties or functions are identified in conjunction with the activities. There are four main groups of activities:
This chapter of the Project Plan contains the contingency plans taking the emergency response requirements into account based on the nature of the operations as described in chapter 1. The plans will clearly identify main actions to be taken in case of likely emergency-scenarios. The central element of the contingency plans are the communication plans established for the various emergencies. For All Practical Purposes, the UNIS, SAFETY INSTRUCTIONS FOR FIELDWORK AND EXCURSIONS & INSTRUCTIONS FOR USE OF FIELD EQUIPMENT is the overruling safety document.
This chapter allows for the inclusion of other project specific information in the Project Plan.
The University of Bergen has been contacted by UNIS to perform a "High Resolution Seismic Survey" as Field Work for Seismic Data Acquisition for Course AG-205, during week no. 11, 2001. The survey consists of one 2D-line (profile) over sedimentary deposits over Adventdalen. Data will be studied in the field and analysed at the processing-"center", at UNIS, after the Field Course. Main activities for the students will be to participate and follow in the various crew positions. To give an understanding of survey planning HSE (Health, Safety, Environment) and Quality are important parts of the Course. The total survey distance will be approx. 5 km. See attached map.
The recording vehicle is is a wide track Snowmobile towing a sledge mounted recording and shooting instrumentation. The Recording equipment is a Geometrics 24 ch. system. The Recorder (Observer) and the Shooter will both carry VHF radioes and advise the activity as the operation goes on. The radios cover the working frequencies between the crew in the party and also the emergency frequency. For further information, see Appendix A of the Safety Case.
The Source Vehicle is, for this operation, part of the Recording vehicle. Timing Control and Firing Unit are installed in a heated chamber on the sledge. There is also a small generator at the sledge running power for battery charging and heater for the chamber. See Appendix I for further information.
Snowscooters are used by the crew members for operating in the various positions at the seismic crew as well as for transportation to and from fieldwork area. How to operate the snowscooters is covered in the general field course for students at UNIS. See Chapter 6 B.
The snowstreamer technique is based on a main cable for towing and carriers for the signals. The geophones are connected to the main cable with typical 5 meters between take-outs. The Geophone is a gimbal mounted geophone with the best physical parameters for the specific survey. Our system has one gimbal geophone (z) per take-out. The system is put together by cable sections each 125 m long.
The snowstreamer cable is normally carried on and laid out from a streamer winch mounted on a sledge. When the cable is deployed and located on the seismic line, as planned, we will start to shoot in the planned position. The Offset between source and first receiver group has to be established. All stations have to be marked with "pegs", which is numbered sticks along the seismic line. Station numbers will relate to shotpoint positions and receiver positions. When receiver noise has been checked and accepted and the shooter is ready (checked that shotposition is cleared for crew and animals) the shot will be fired and recorded. The shooting/recording sequence is operated from the RecordingVehicle, but the shooter can at anytime time abort the shot by a springloaded switch which he operates by hand.
When the recording of the shot is finished and accepted the Recording Vehicle will tow the Snowstreamer to the next receiver stations. At the same time a new shot will be prepared in the next shot location. Same sequence and same procedure as for previous shot will be carried out and the shot and recording will be done. The operation continues like that until the line is completed.
A typical 2D Snowstreamer crew using dynamit / shot holes as source is typical 13 persons.
The Snowstreamer technique can be used on snow, ice, sand and seabed surface and coupling tests for comparison between planted geophones and towed gimbal mounted geophones shows equal results.
Timesharing
Situation not established.
Environments
Situation will be established in the permits for work given by the Authorities (Sysselmannen).
The Crew is equipped with VHF Radios. We have one working channel and one "emergency channel.
In addition there are four GSM mobile telephones on the crew. Communication has been tested for the working area.
See Section 5 for further details on Contingency Plans and Emergency Response
Mobilisation will take place in Longyearbyen 7-11 March 2001. The Field Course will be held 12-16 March 2001.
The Work Order for the Survey is enclosed. (Chap. No 6 C).
