Course GEOL-110: Seismic survey, February 2008
O.M., 14 Feb. 2008
University of Bergen, Norway
Dept. of Earth Science

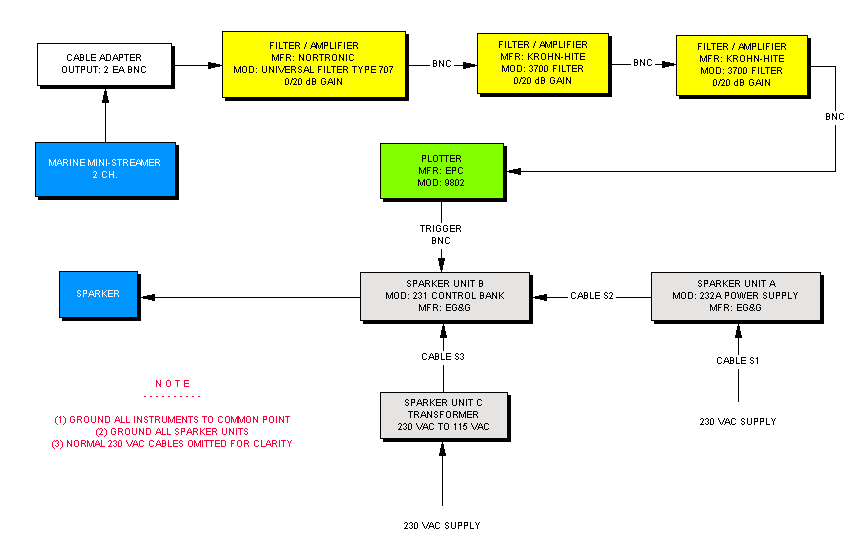

1. Instrumentation diagram

Fig. 1. Instrumentation
diagram, GEOL-110, February 2008
2. Filter / Amplifier settings
- On each unit you can select 0 or 20 dB gain. In
the 2007 survey - with identical streamer, source and
instrumentation - we used 20 db gain on all units; in total 60 dB gain
(= 1000 x voltage amplification).

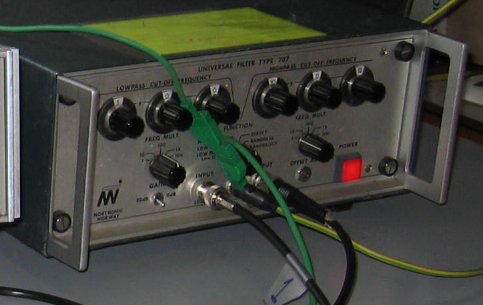

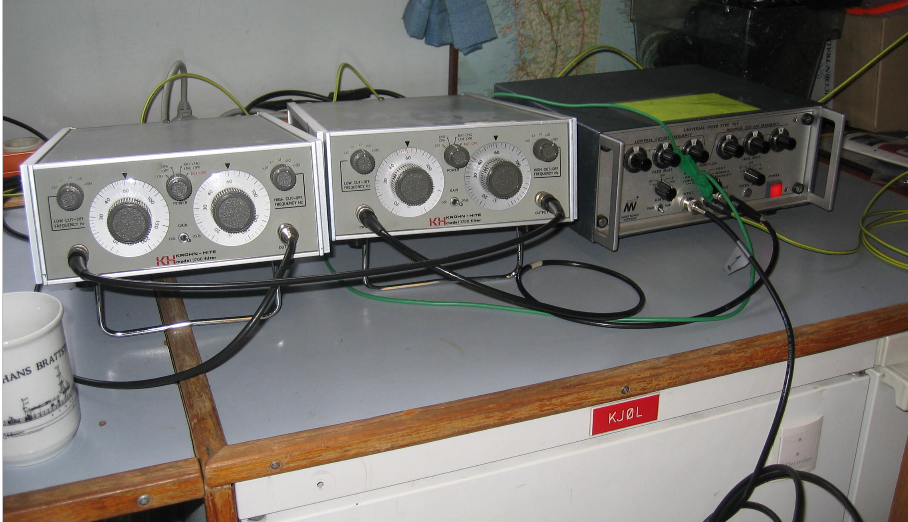

- Filter settings used 2007:
- NORTRONIC unit: No filter => "DIRECT"

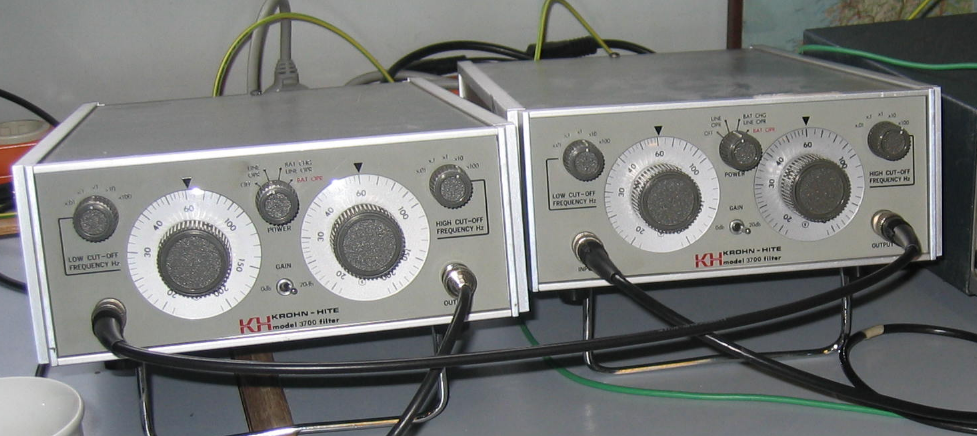

- KROHN-HITE units: Both had identical settings:
- Low-frequency cut-off: Switch x 1.0, knob: 60 =>
60 Hz
- High-frequency cut-off: Switch x 10, knob: 60 =>
600 Hz
3. Connection of Sparker
The sparker element has no polarity.

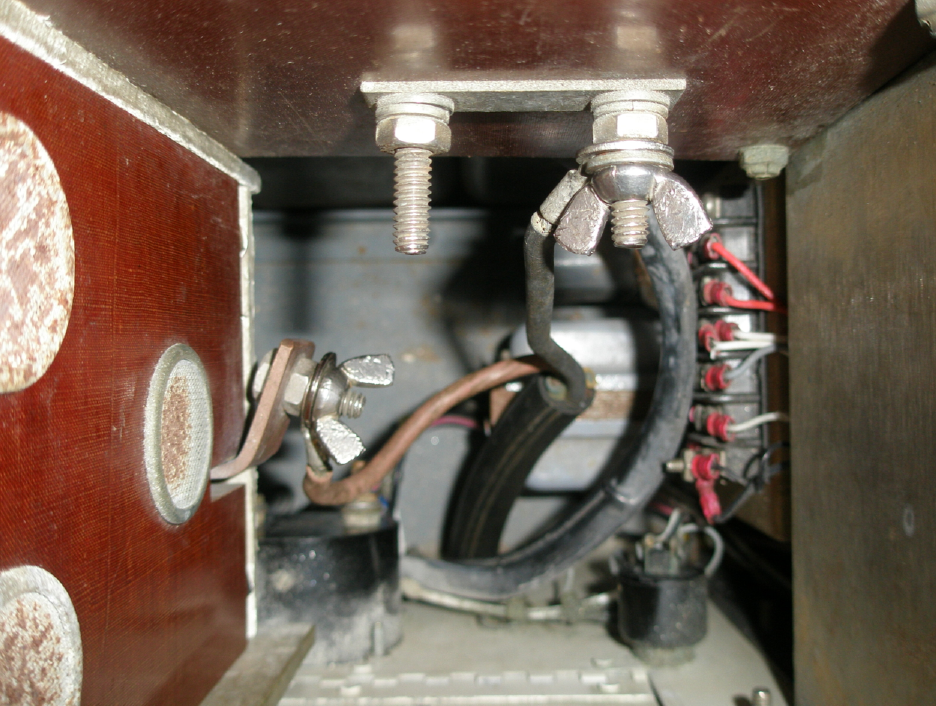

For the record: Boomer plate HAS polarity. Brown wire should go
to Sparker Control Bank "positive"
terminal (left on picture below). Boomer plates will move in opposite
direction (which is not desirable) if polarity is not correct.

Fig. 2. Connection of sparker. No polarity on sparker; on boomer connect "brown" wire to left terminal.
4. Grounding
Filter/amplifier and EPC plotter grounds should be connected to a
common point.
Sparker ground lugs should be connected to ship's ground.
5. Sparker energy output

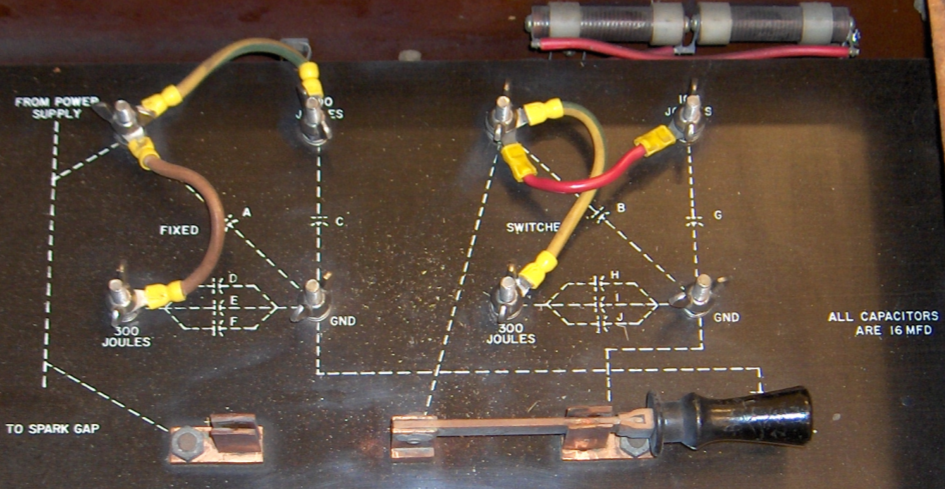

Ref. this picture from top of Sparker Control Bank:

Fig. 3. Selecting sparker
capacitance
The wiring straps now divide the capacitance (expressed as energy - in
Joules) into two sections. The one to the left is 300 + 100 + 100
Joule = 500 Joule. The section to the right also represents 500 Joules.
The large switch will either short-circuit the section to the right, or
include it in operation. As shown, the right capacitor section is short-circuited.
6. Spark gap cleaning
You might need to clean spark gap terminals:

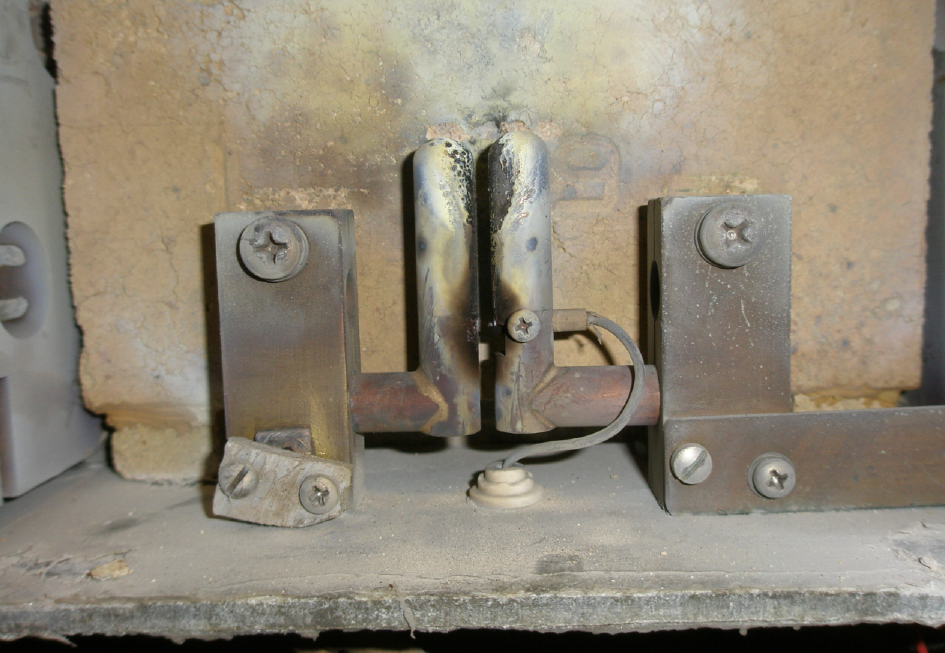

Fig. 4. The spark gap terminals may need cleaning. Use abrasive paper sheets.
7. Sparker Cables
Referering to cable numbering in fig. 1, we use these cables:
7.1 Cable S1

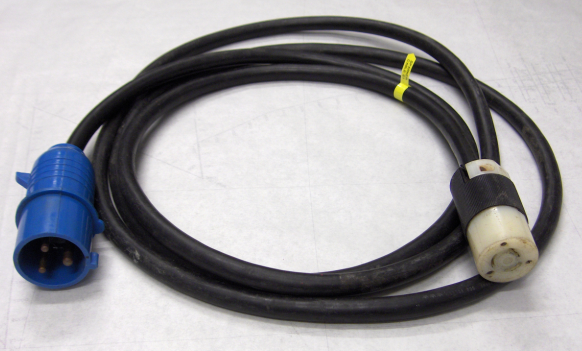

Fig. 5. Sparker cable S1
We have two adapters for this cable.

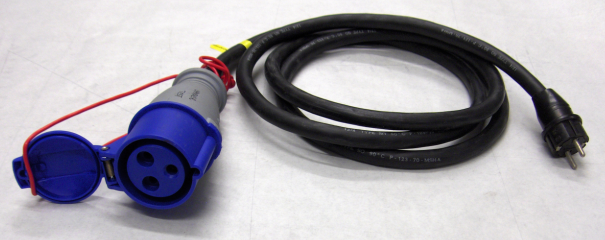

Fig. 6. Adapter A, for
Sparker cable S1
If
you use this cable, please note that fuses may blow on a 16
Amp power line that already supplies other equipment.

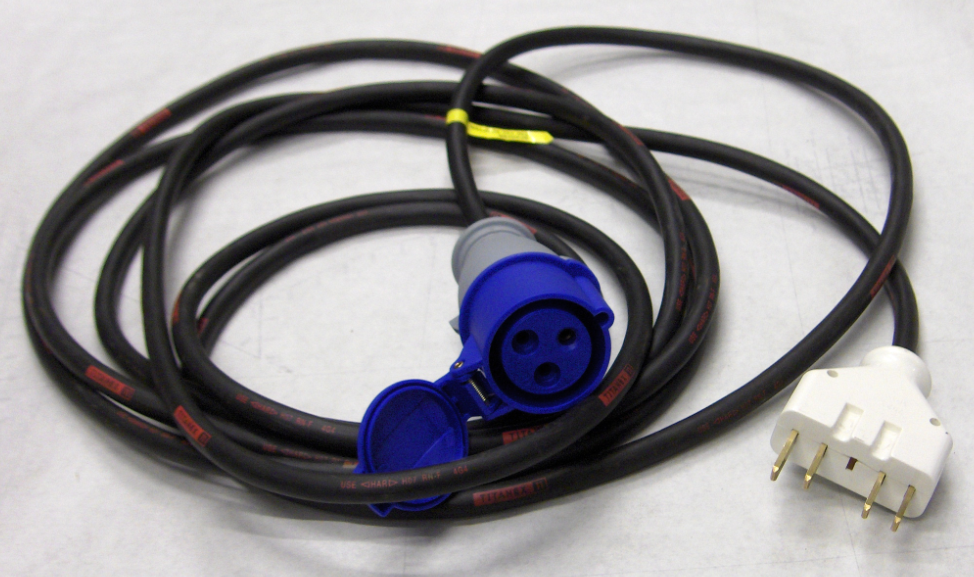

Fig. 7. Adapter B, for
Sparker cable S1
The grey/blue connector can be purchased at Onninen,
Minde. Part number is printed on connector lid.
7.2 Cable S2

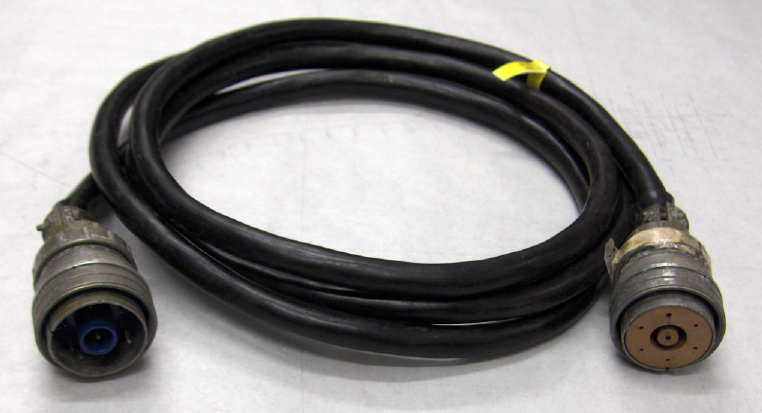

Fig. 8. High-voltage
cable between the two main sparker boxes.
7.3 Cable S3

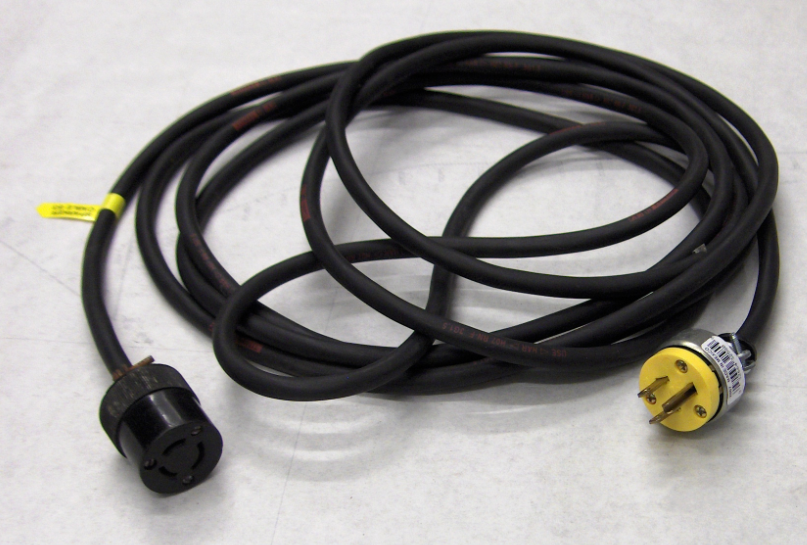

Fig. 9. 115
Vac cable between transformer and sparker control unit.
8. Transformer 230 Vac to 115 Vac

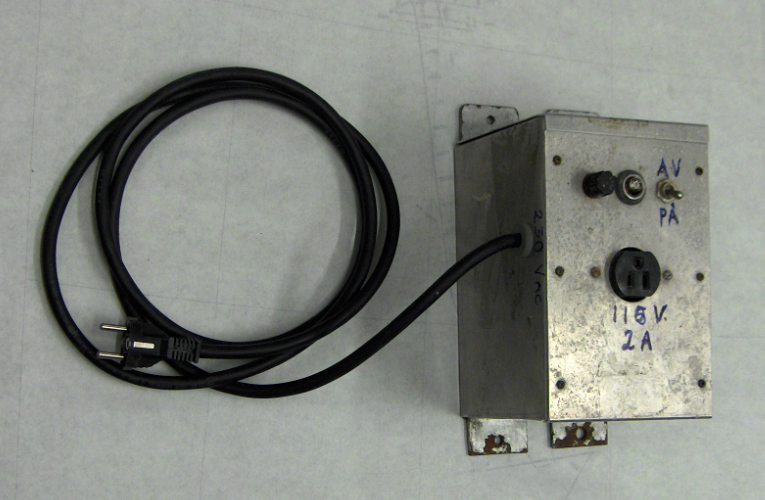

Fig. 10. Transformer, 230
Vac to 115 Vac.
9. EPC Key
output
The EPC
"Key" output should be a positive pulse, in order to trigger the
Sparker Control unit.

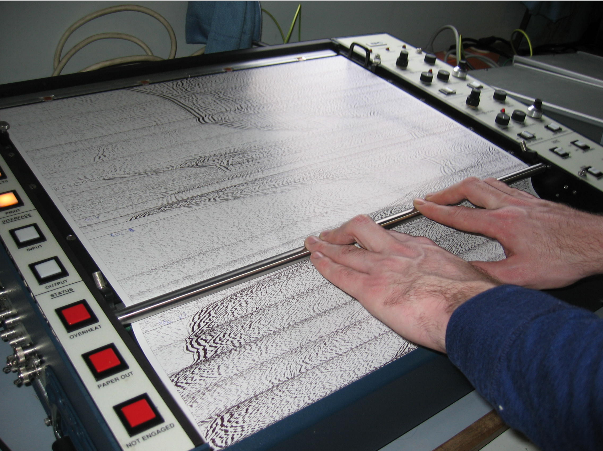

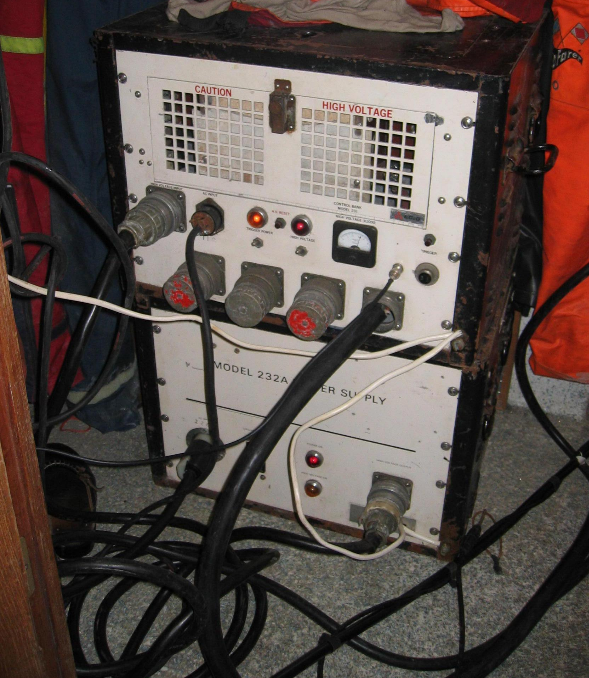

10. Pictures from 2007 survey
