XGT - Cross axis gyro torque signal (gyro input)

This signal is a sum of the cross accelerometer output plus a constant times its integral.

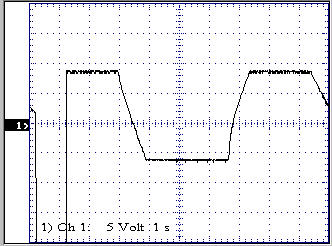

Ch.1: XGT

Cross torque motor switch = OFF
The platform has been rotated slowly from side to side in the cross axis direction.

Ignore the leftmost part of the curve (scope anomaly).

April 6, 2001 (OM)
