INSTRUMENTATION -- OBSOLETE - KEPT FOR REFERENCE

1.  AIRGUN PRESSURE SENSOR, RV HÅKON MOSBY

1.1  Specifications 2001 pressure sensor

Date of purchase: October 2002 Manufacturer: Tecsis, http://www.tecsis.de Model no.: VDT 3376.084.001 Range: 0 - 250 Bar Output: 4 - 20 mA Accuracy: 0.5 % Material: SS 304 housing, SS 316 wet parts

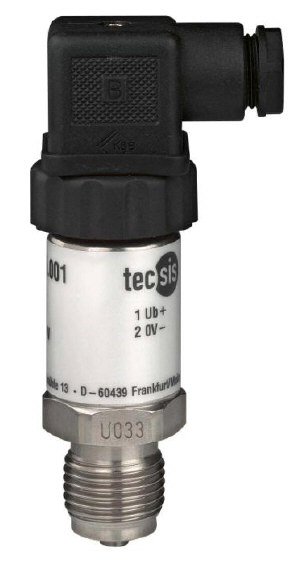

1.2  Specifications new 2011 pressure sensor

Manufacturer: Tecsis, http://www.tecsis.de Model no.: VDT.P3276.B08460 Range: 0 - 250 Bar Output: 4 - 20 mA Accuracy: 0.5 % Pressure input: G ½ B (DIN 16288) Data sheet: Tecsis_3276_pressure_sensor_2011.pdf

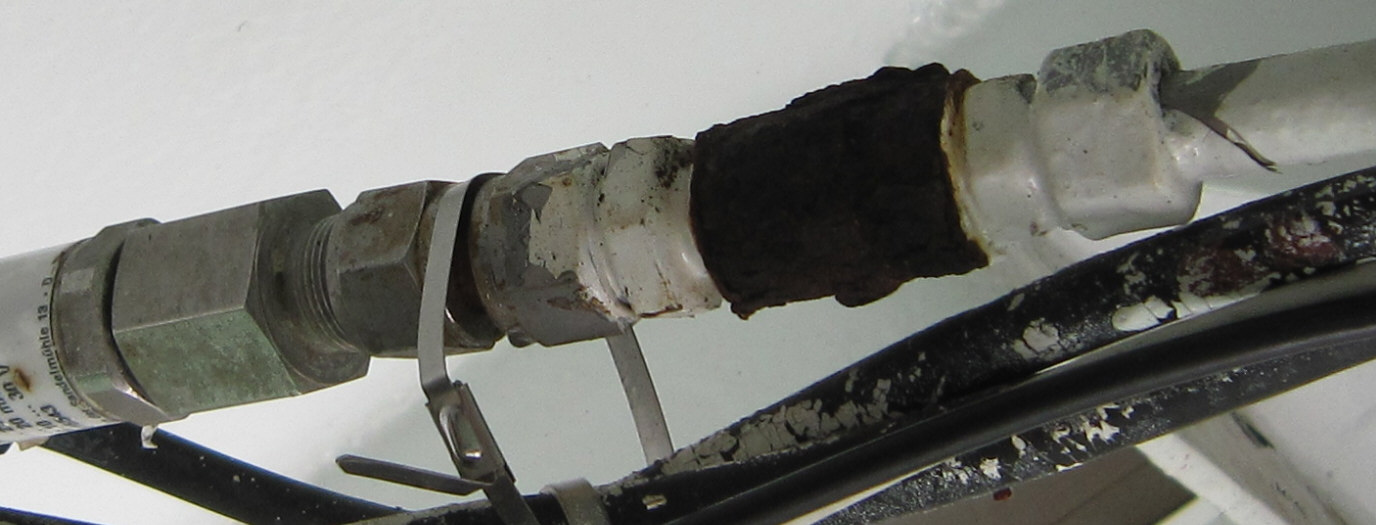

1.3  2001 sensor, installation on Mosby

6. August 2011: Click image to see larger version.

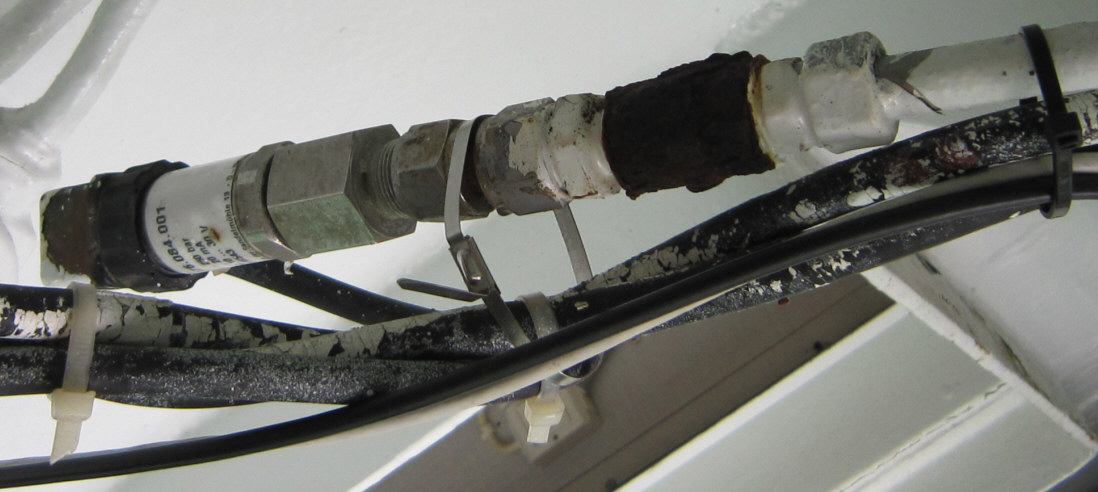

Airgun pressure sensor on RV Håkon Mosby, 6 Aug 2011 (click to see large version).
