RV "G.O. SARS" GEOFYSISK INSTRUMENTERING / KABLING / KONNEKTORER				UNIVERSITETET I BERGEN Institutt for geovitenskap Allé gt. 41, 5007 Bergen, Norge

0.2	Oppdatering 2025	-	30. april 2025	OM	OM	-
0.1	UTKAST - for kommentarer	-	25. aug. 2003	OM	OM	-
VER.	STATUS	ENDRING	DATO	AV	KONTROLL	GODKJENT

RV "G.O. SARS" during building at "Flekkefjord Slipp og Maskinfabrikk", February 2003.

INNHOLDSFORTEGNELSE

"G.O. SARS": BAKGRUNNSINFORMASJON

TEGNINGER, KABLING FOR GEOFYSISK INSTRUMENTERING

Nr.	Tegning	Beskrivelse	Last ned	Dato	Ver

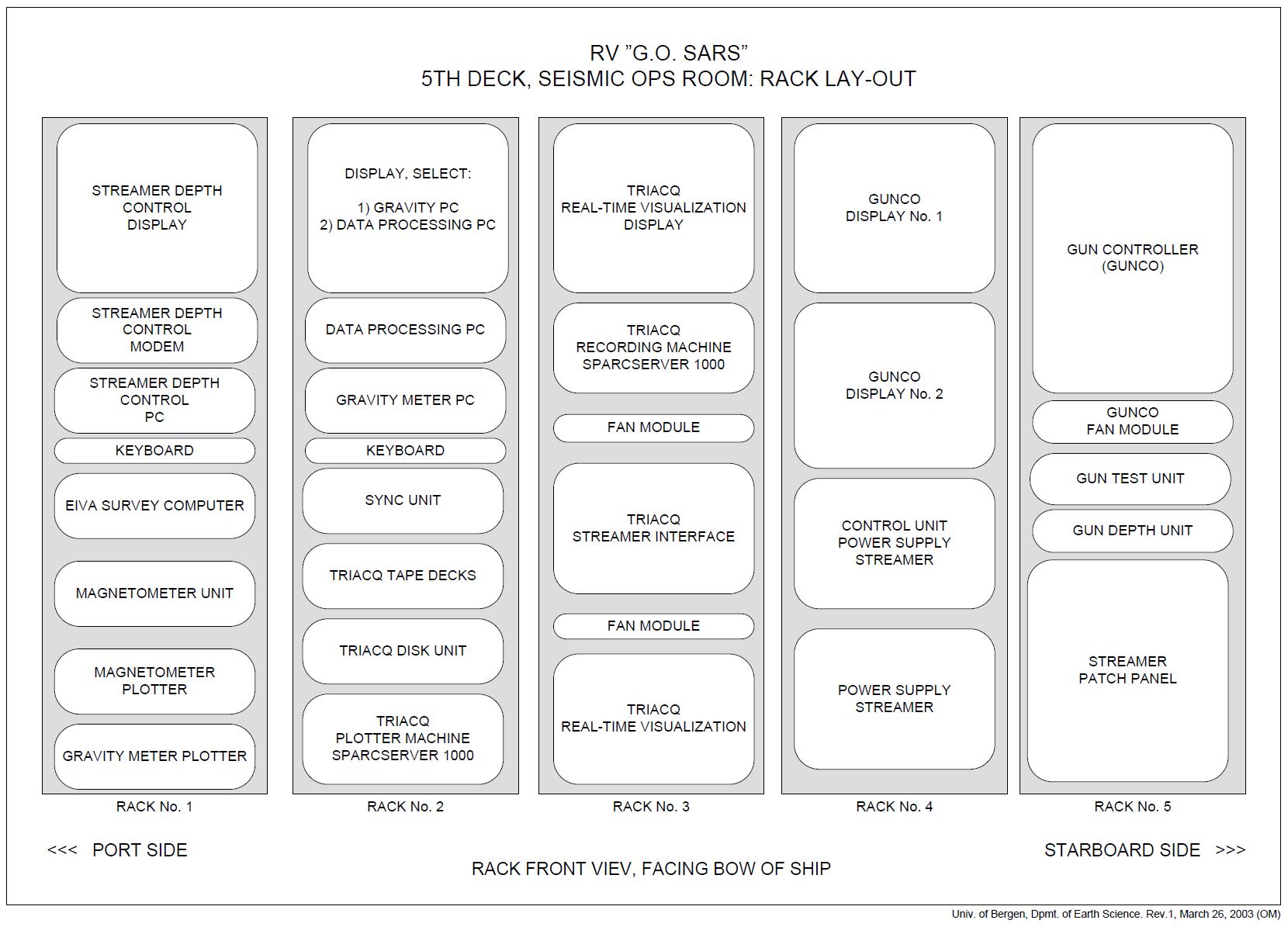

1	Klikk for større bilde.	Rack layout, 5th deck, seismic ops room	Racks-seismics-ops-room.vsd (VISIO format) PDF	26. mars 2003	1.0

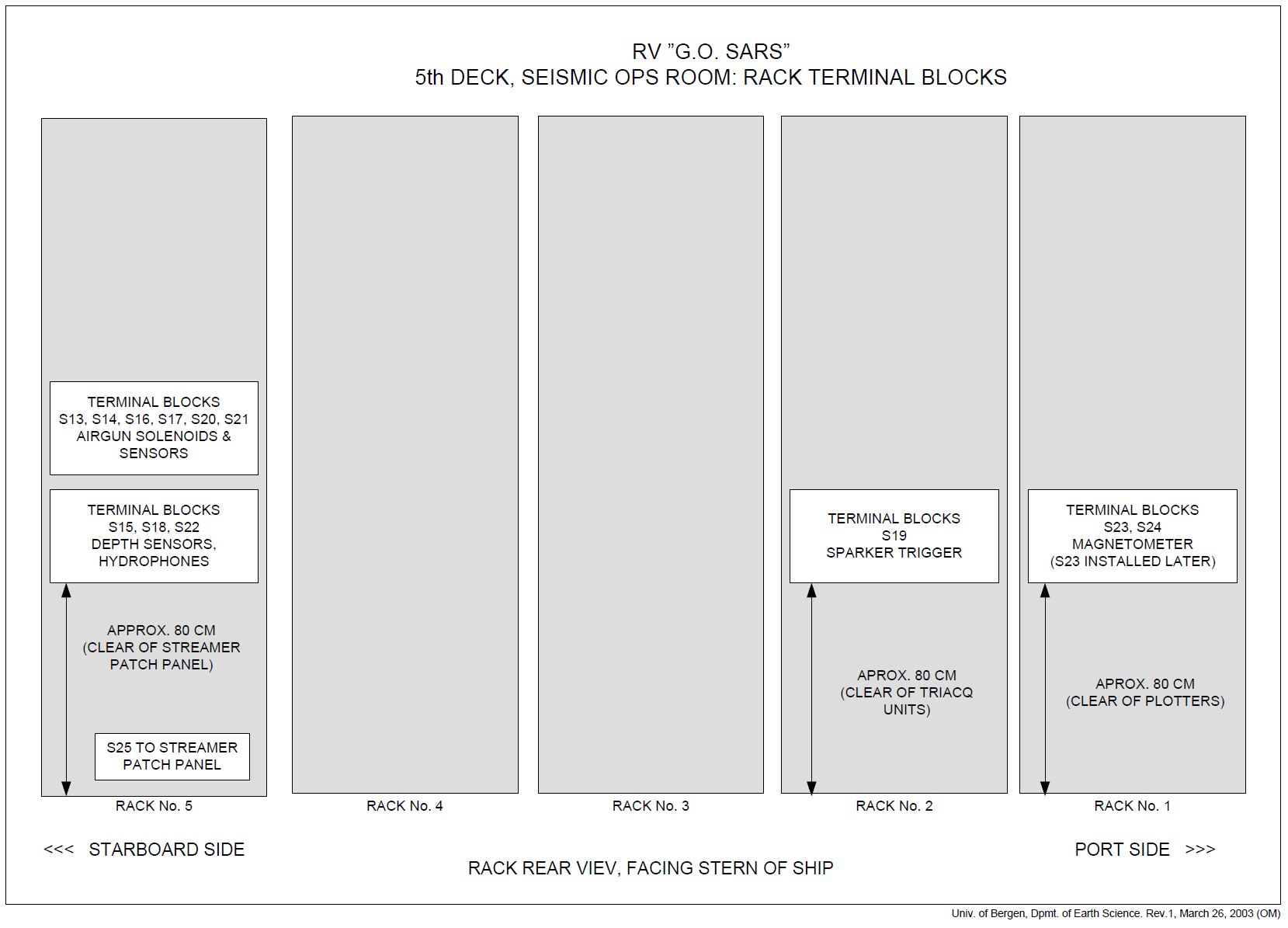

2	Klikk for større bilde.	Terminals in racks, 5th deck, seismic ops room	terminal-blocks-seismics-ops-room-ver-1.vsd (VISIO format) PDF	26. mars 2003	1.0

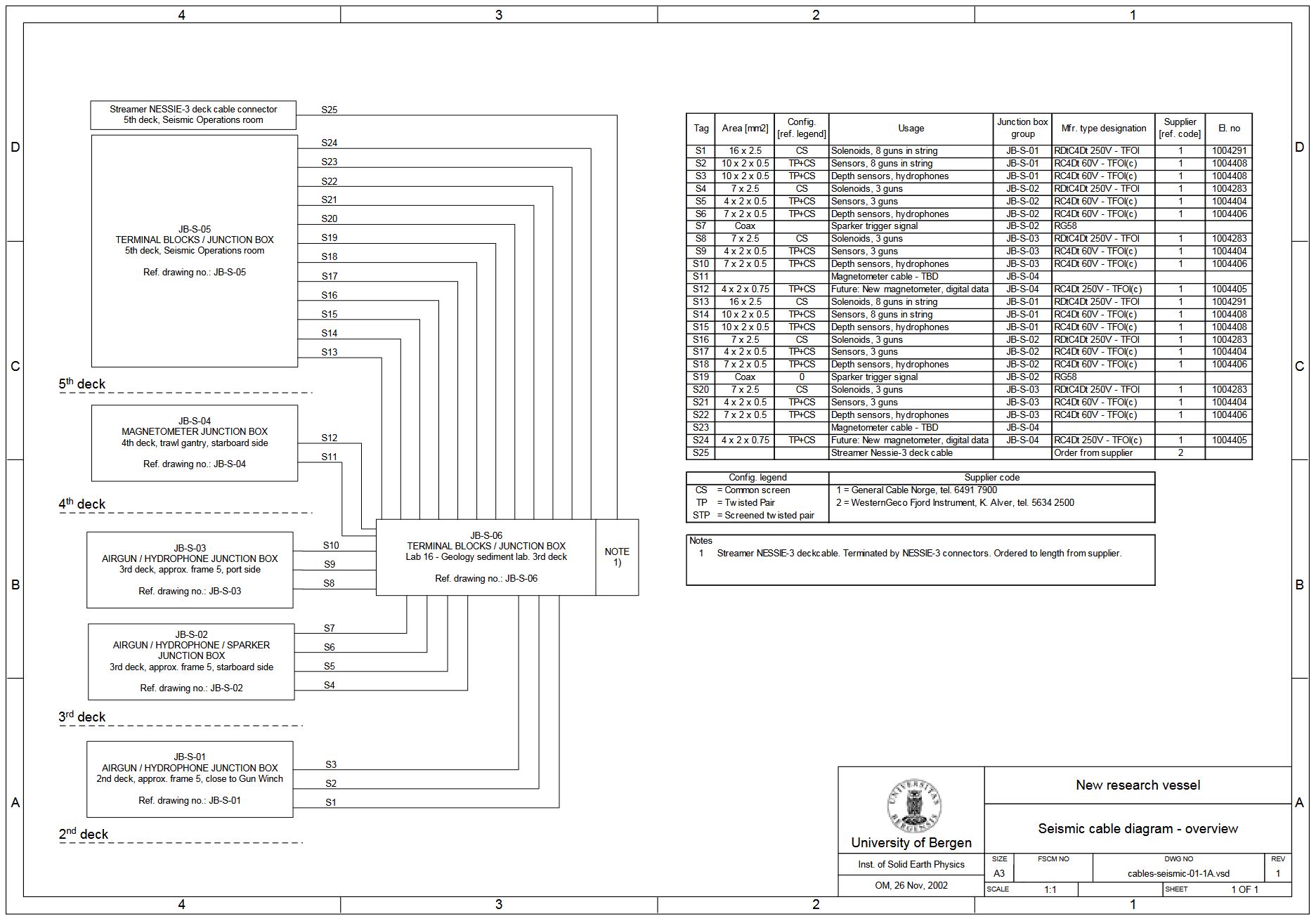

3	Klikk for større bilde.	Main diagram	cables-seismic-01-1A.vsd (VISIO format) PDF	26. nov. 2002	1.0

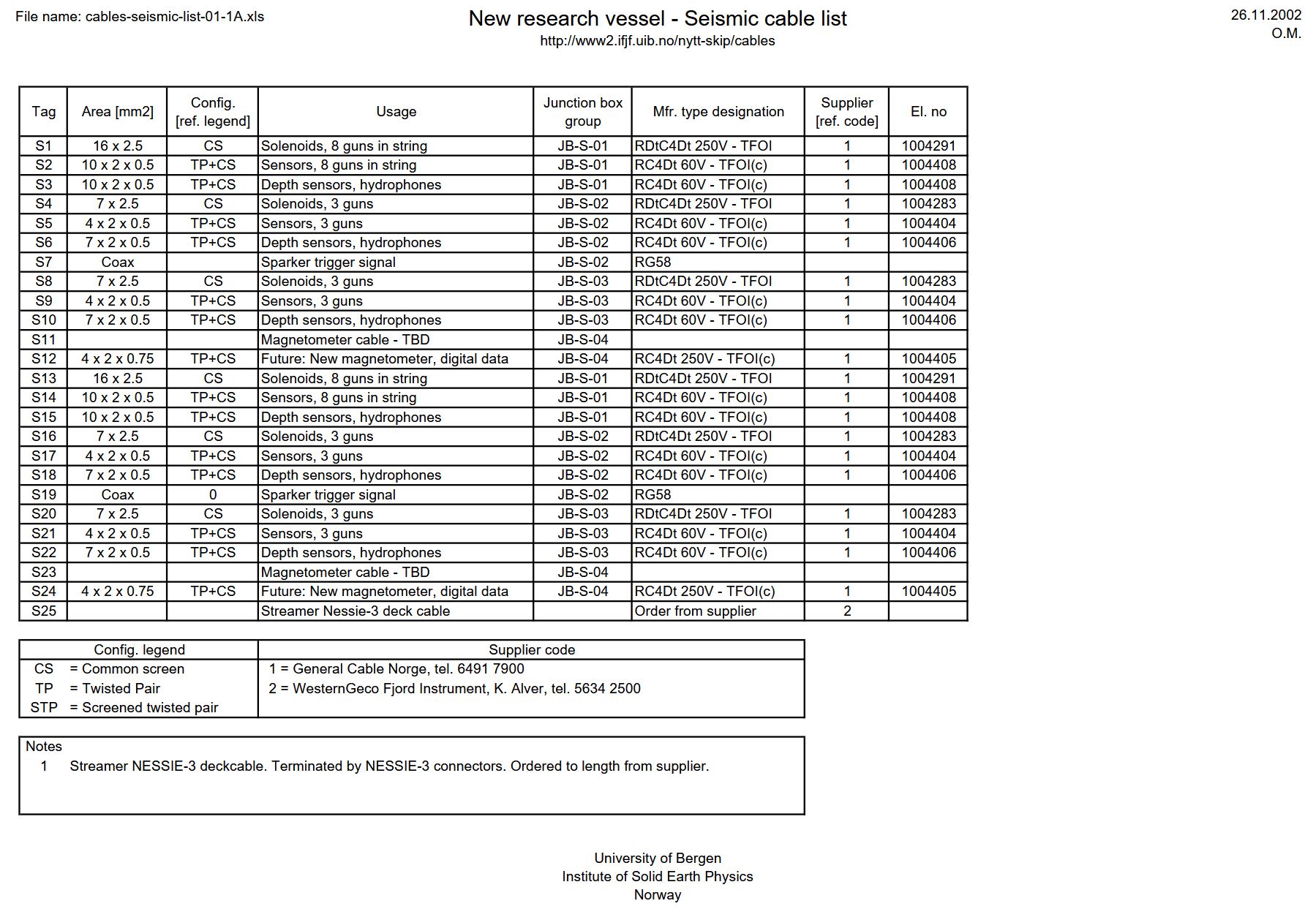

4	Klikk for større bilde.	Cable tag list	cables-seismic-list-01-1A.xls (EXCEL format) PDF	26. nov. 2002	1.0

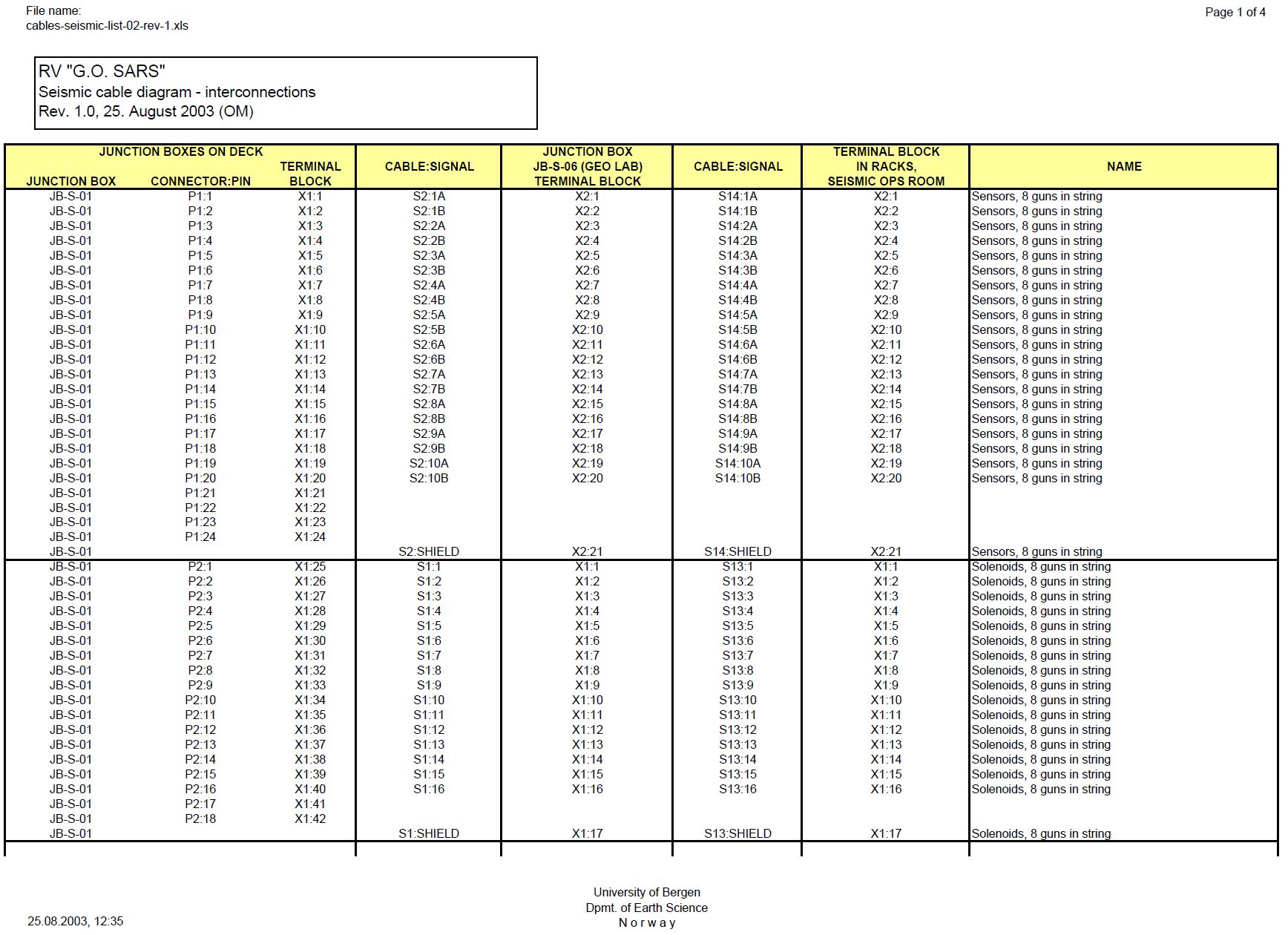

5	Klikk for større versjon (PDF).	List of interconnections	cables-seismic-list-02-rev-1.xls (EXCEL format) PDF	25. aug. 2003	1.0

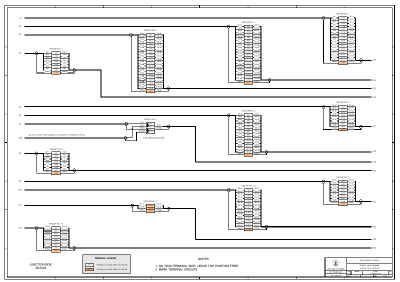

6	Klikk for større versjon (PDF).	Junction Box JB-S-06 3rd deck, lab. 16	jb-s-06-rev1.vsd (VISIO format) PDF	27. feb. 2003	1.0

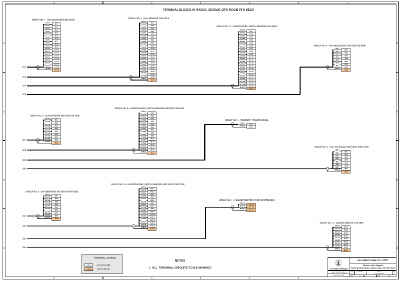

7	Klikk for større bilde.	Terminal blocks in racks, seismic ops room 5th deck	jb-s-05-rev2.vsd (VISIO format) PDF Change history: Rev. 2: Mirrored all terminal groups. Cable entries will then match those on drawing "jb-s-06-revX". Text describing all terminal groups.	25. aug. 2003	2.0

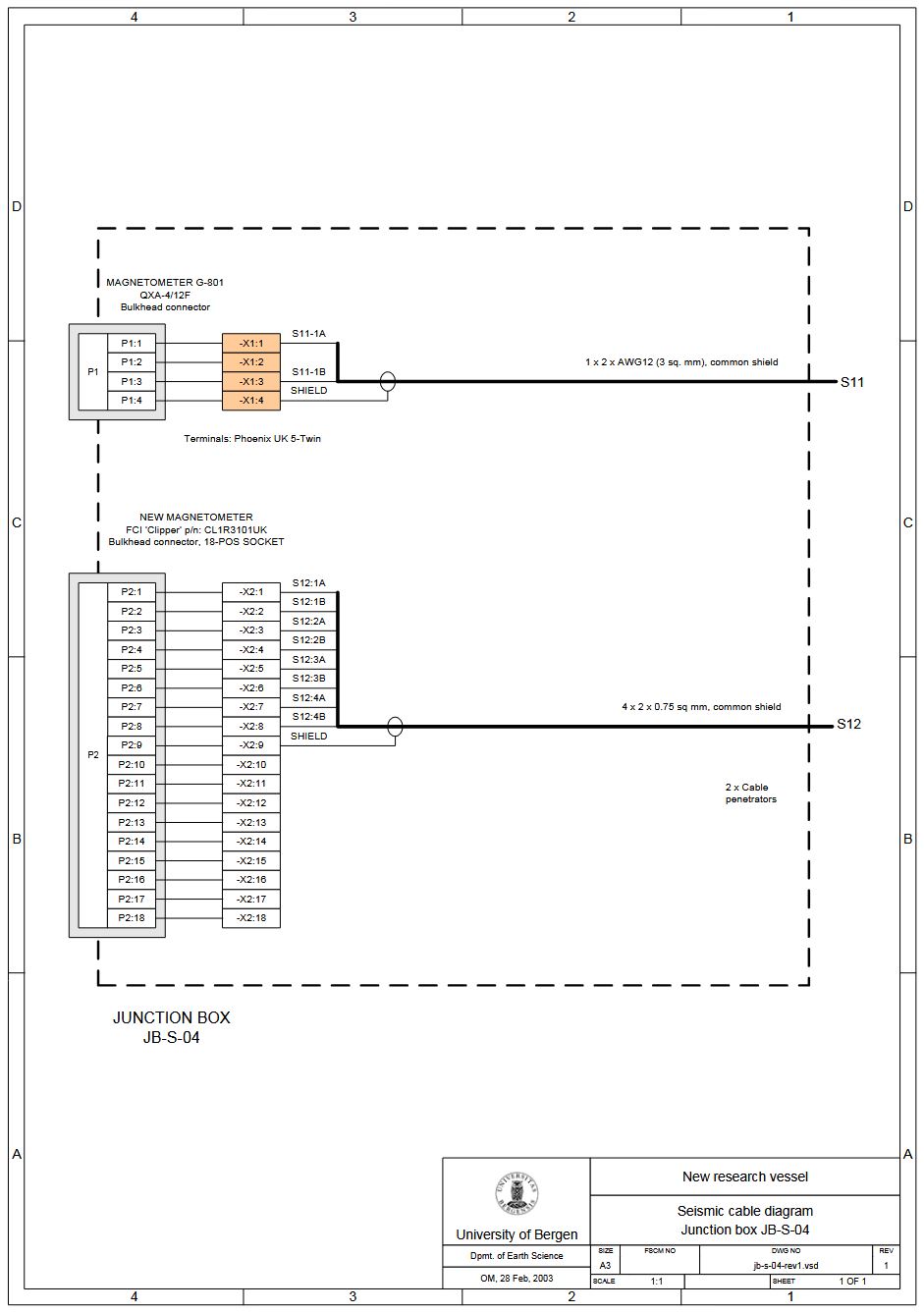

8	Klikk for større bilde.	Junction Box JB-S-04 4th deck, trawl gantry, starboard side	jb-s-04-rev1.vsd (VISIO format) PDF	28. feb. 2003	1.0

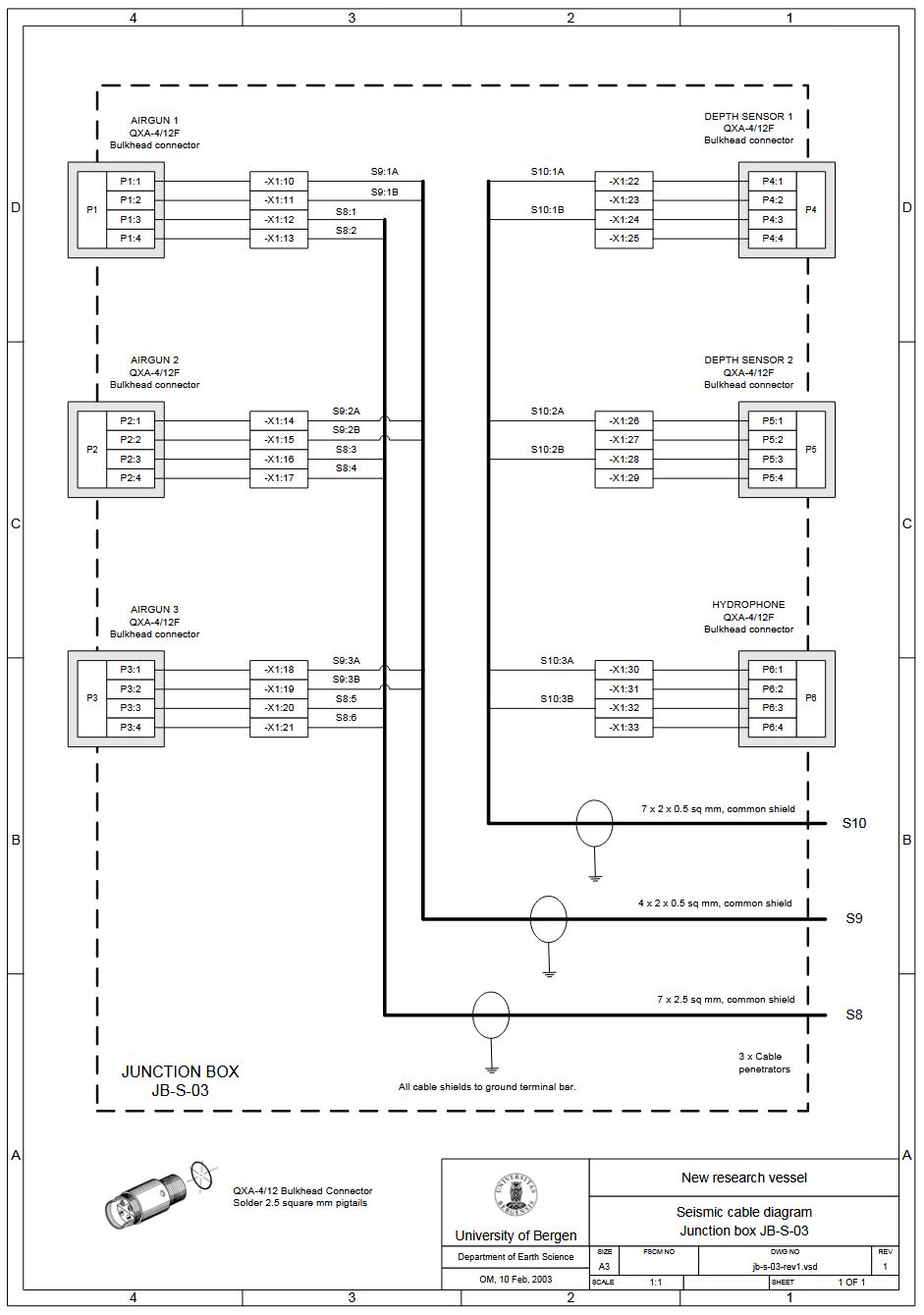

9	Klikk for større bilde.	Junction Box JB-S-03 3rd deck, approx. frame 5, port side	jb-s-03-rev1.vsd (VISIO format) PDF	10. feb. 2003	1.0

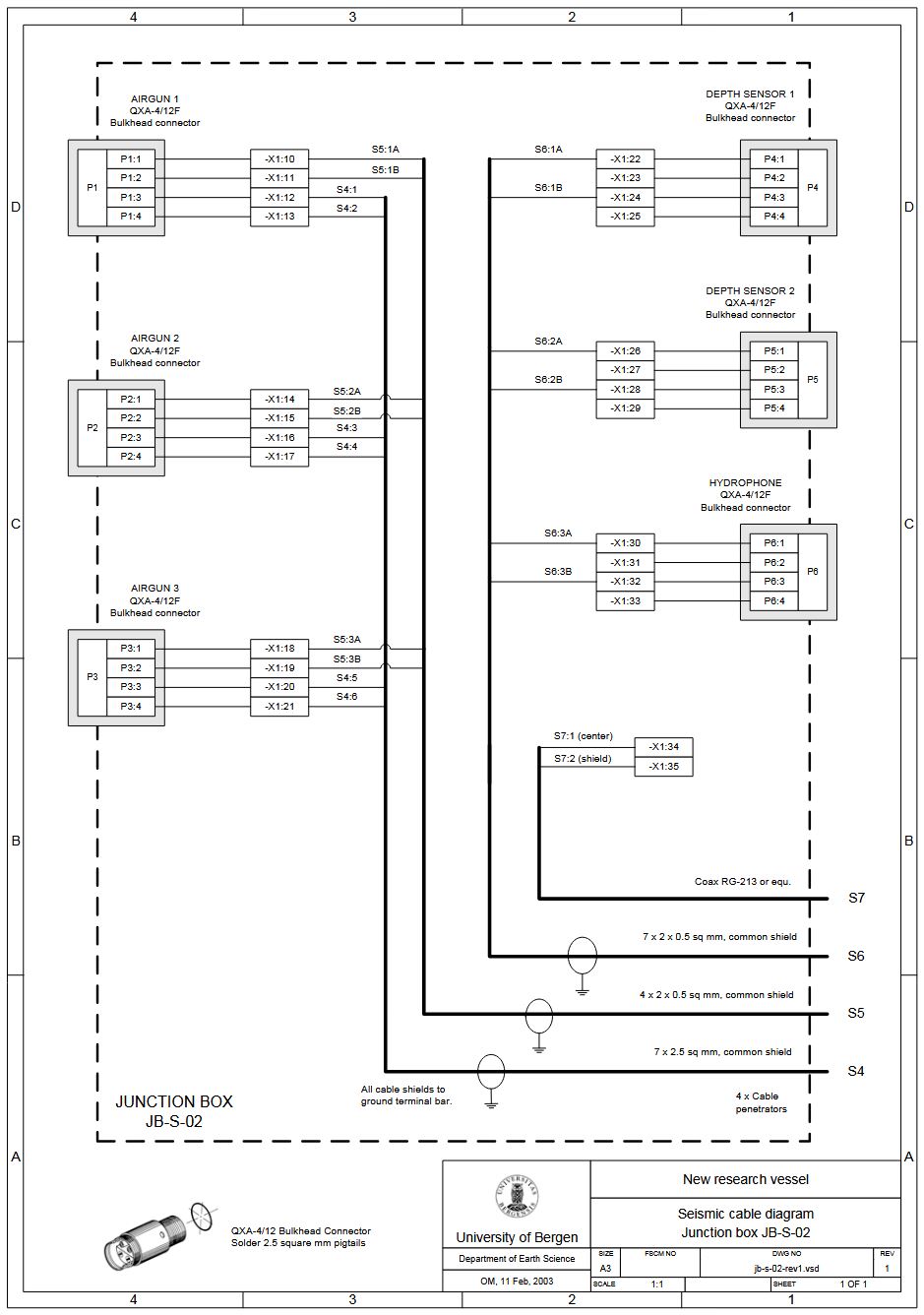

10	Klikk for større bilde.	Junction Box JB-S-02 3rd deck, approx. frame 5, starboard side	jb-s-02-rev1.vsd (VISIO format) PDF	11. feb. 2003	1.0

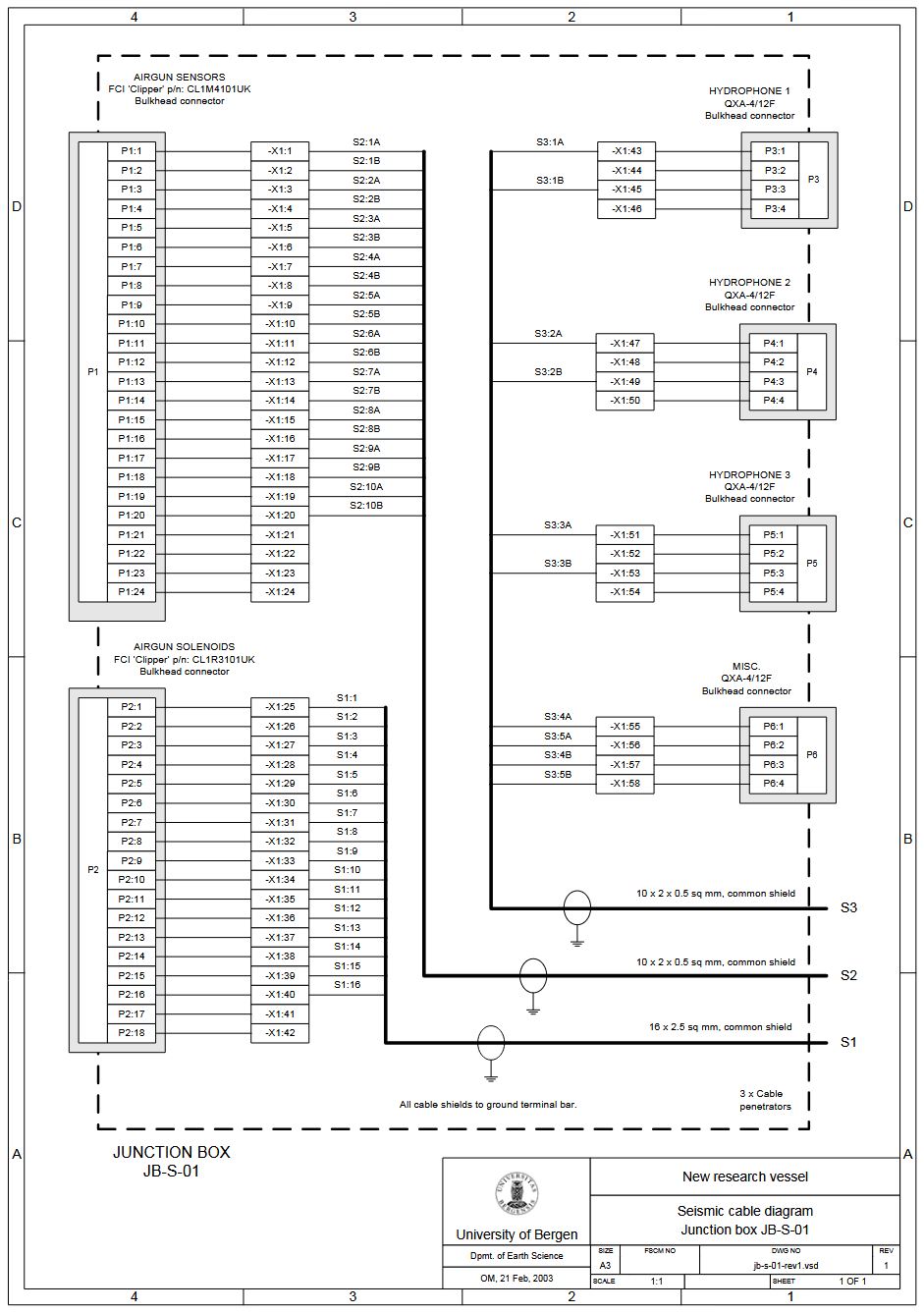

11	Klikk for større bilde.	Junction Box JB-S-01 2nd deck, approx. frame 5, close to Gun winch	jb-s-01-rev1.vsd (VISIO format) PDF	21. feb. 2003	1.0

KONNEKTORER

For Mag. vinsj koplingsboks på 4.dekk

Kabelkonnektor

Sealed plug mating seal -- Male contacts -- 18 contacts, #16 -- CL1P3101

2025 dokumentasjon:

Manufacturer: Eaton - Souriau
Shell size: 3
18 contacts, #16 (Ø1.6mm)
Mfr. part number:
- Sealed plug mating seal: CL1P3101

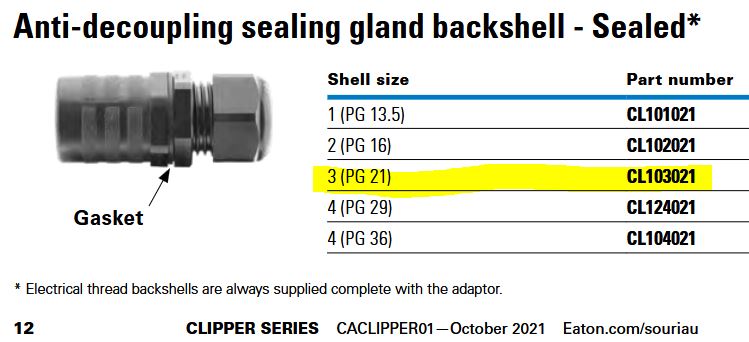

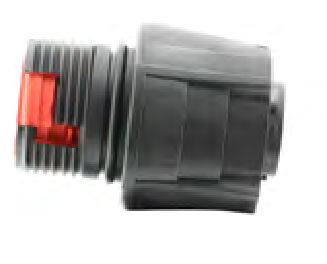

- Anti-decoupling sealing gland backshell - Sealed -- Shell size 3 (PG21): CL103021
Souriau CLIPPER series data sheets (PDF) --- Også lokal kopi
Supplier: Farnell
- CL1P3101 -- Circular Connector, Souriau Clipper Series, Cable Mount Plug, 18 Contacts -- Art.nr.: 1902692

Fra Souriau CLIPPER series data sheets (PDF)

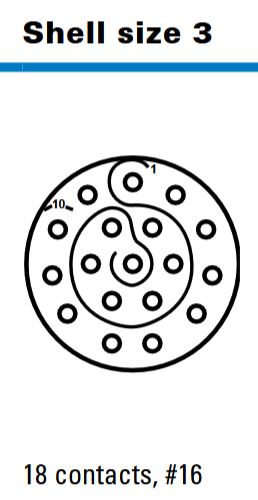

Layouts face male contact

Bulkhead-konnektor i Junction Box

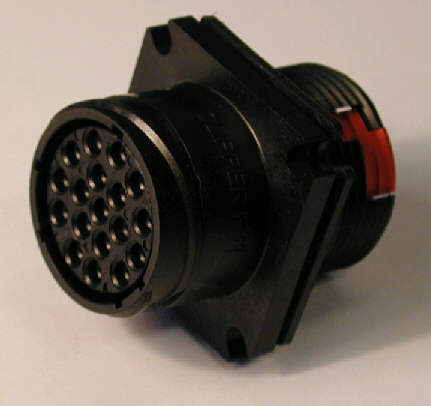

18-pin bulkhead, socket contacts -- Junction box 4. Klikk for større versjon.

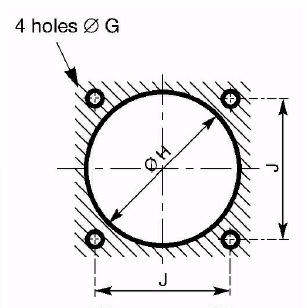

Drilling of holes in bulkhead (Shell size = 3):

H = 31 mm
J = 28.6 mm
G = 2.8 mm

2025 dokumentasjon:

Manufacturer: Eaton - Souriau
Shell size: 3
18 contacts, #16
Mfr. part number: CL1R3102
- "Sealed receptacle with panel gasket" - for 18 contacts, female contacts
Souriau CLIPPER series data sheets (PDF) --- Også lokal kopi
Supplier: Farnell

2003 dokumentasjon:

Manufacturer: FCI
Mfr. part number: CL1R3101UK/FC FAB KIT 4172607
18-pin bulkhead connector, sockets
Clipper Industrial Plastic Connectors (PDF, 28 pages)
Supplier: Farnell
- Supplier part. no.: 749151
- Supplier designation: RECEPTACLE SQ.SKTS 18WAY FAB KIT 4172607
