CAMERA SYSTEM


Introduction


Axis_241Q_front_panel

Axis Video Server 241Q_front_panel.

The hovercraft is equipped with several cameras. Signals from these are distributed on vessel data network through AXIS Video Server Mod. 241Q.

Connecting to the Video Server


The Video Server has a web based data interface. The unit has a fixed IP adress of 192.168.0.90. Enter this address in web browser, as shown below:



Configuration of Video Server

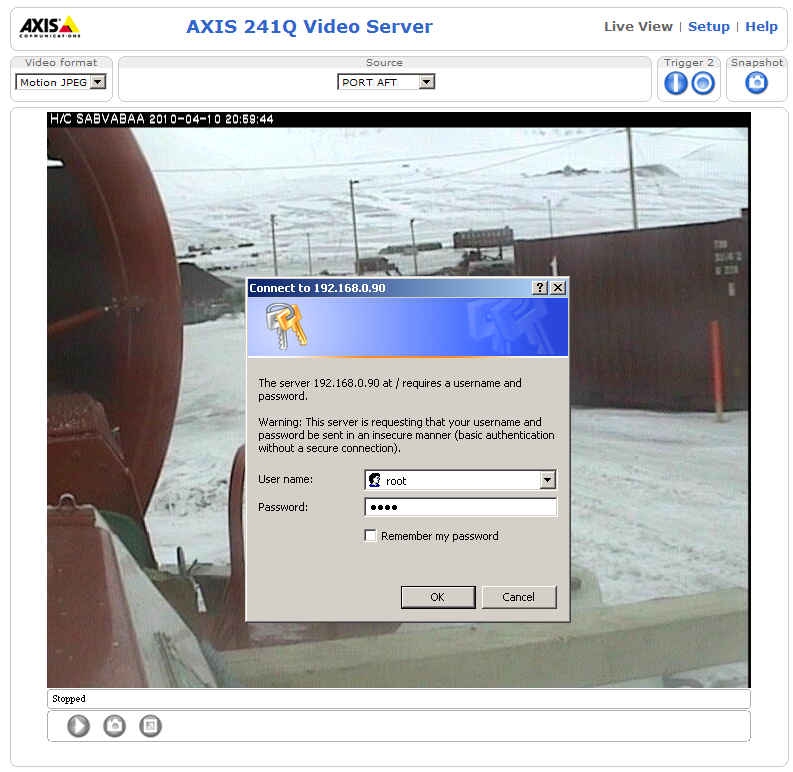

Login Axis mod. 241Q Video Server

Clock Setup in upper right corner. Enter user name and password:

  • Username : root
  • Password : pass

(these are default values).

The configuration meny is then displayed.
