| Title
Petrobar-2007 Survey
Notes on instrumentation support
|
By O.M.
| Date 27 Nov 2012
| Version 0.1
|

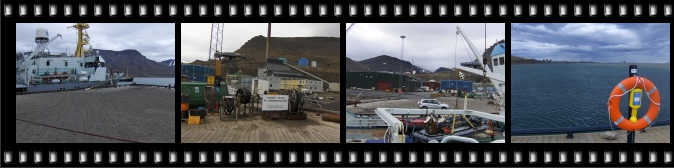

Click to see photo album.
Offset distances
- EIVA Survey Computer offset is such that positions are referred to ship's Center of Gravity (CG).
- Guns: 64 meter behind ship's CG.
Navigation data, logs, GPS timestamp of shot events
Datum / UTM Zone
| Survey Computer (EIVA) files [Time in UTC]
| Timestamps ASHTECH GPS [GPS time, 14 s ahead of UTC time]
|
Shot events
| Data logging 10 s interval
|
WGS84 / Zone 35X
|
|
|
|
Ashtech "GG24" GPS - Time stamp of shotpoints
NOTE:
- Time is GPS-time. As of 16 August 2007, GPS time is 14 seconds ahead of UTC time.
- Files contain two types of data:
- NMEA GPGGA sentences, every 10 seconds. The number of satellites used can be monitored.
- Time stamps. Example:
$PASHR,TTT,2,21:59:03.5468332*0D
Sonobuoys
The Sonobuoy receiver system consists of these parts:
- Antenna:
- Radio receivers
These receivers are ordered from Greenridge Sciences. They modify the low-frequency properties so that bandwidth is extended down to 5 Hz (- 3dB).
- Mfr: ICOM
- Model: PCR1500
Modified, calibrated sonobuoy radio receiver
Lower -3dB frequency cut-off: 5 Hz
Upper -3dB frequency cut-off: 20 kHz
- Supplier: Greeneridge Science, Inc.
- Antenna pre-amplifier:
- Model: P160-175VDG-C
Preamplifier, receive only, 160-175MHz, w/BNC connectors, w/choke (powered via coax), packaged in a watertight container for mounting near antenna.
- Supplier: Greeneridge Science, Inc.
- DC-Injector, for antenna preamplifier
- Model: 3 DC-INJ-B
DC Injector Bias 'T', w/BNC connectors. Pair of banana jacks to accept 10-16 VDC from user supplied power supply.
- Supplier: Greeneridge Sciences, Inc.
- Software for tuning and controlling multiple radios from a single window
- Supplier: Greeneridge Sciences, Inc.
TIPS: Two receivers can be operated at the same time on a Win XP computer, by starting a separate session in two different user accounts.
