CAVE INSTRUMENTATION
 Prof. Stein Erik Lauritzen book: "Grotter: Norges ukjente underverden".
| Speleology is the science of exploration and study of all aspects of caves. At the Department of Earth Science, Prof. Stein-Erik Lauritzen conducts research in this area.
The instrumentation group's attempts to support this activity have had limited success, mainly due to constraints on time and personnel. The situation might change in the future, so these web pages are kept as reference.
|
---|

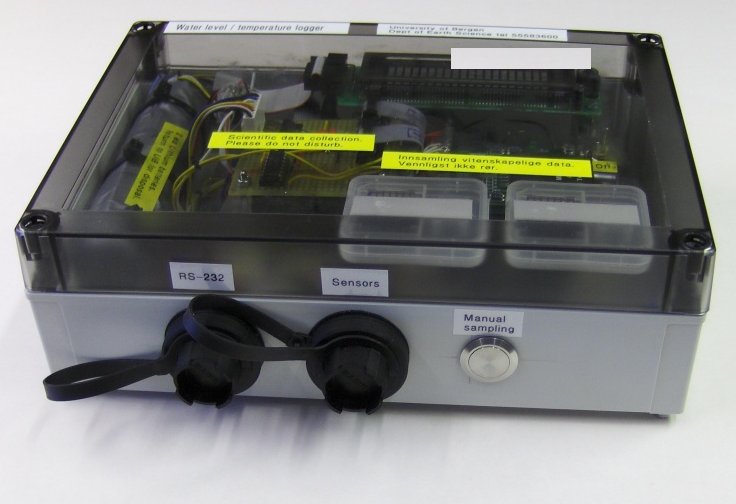

PROJECTS
CAVE INSTRUMENTATION ISSUES
Logger comparison
Comparison of some Tiny Tag and Campbell loggers:
Parameter \ model
| Campbell CR-200
| Campbell CR-800
| Tiny Tag Plus Re-Ed'
| Manufacturer
| Campbell Scientific
| Campbell Scientific
| Gemini
| No. of channels
| 5 SE
| 6 SE or 3 Diff.
| 1 SE
| Storage
| 32000 data points
| 2MByte
| 16000 data points
| A/D resolution
| 13 bit
| -
| 8 bit
| Input voltage range
| 0 - 2500 mV
| Selectable:
- ± 5000 mV
- ± 2500 mV
- ± 250 mV
- ± 25 mV
- ± 7.5 mV
- ± 2.5 mV
| Selectable:
- ± 0 - 2.5 V
- ± 0 - 10 V
- ± 0 - 25 V
| Scan rate interval
| 1 Hz - ?
| 100 Hz - ?
| 1 Hz - 10 days
| Excitation channels
| 2 (2.5 or 5 Vdc)
| 2 (with DAC; +/- 2 V range, 0.67 V resolution)
| 1 (100k output impedance), 159 ms duration; sampling after 150 ms, 3.5 V pulse
| Real-time clock
| -
| Yes
| -
| Temperature range
| -
| -25 to 50 deg C
| -40 to 85 deg C
| Current drain
| -
| Sleep mode: 0.6 mA 4.2 mA (1 Hz scan rate: without RS-232 data output)
| Internal Lithium battery
| Document links
|
|
|
| Price
| NOK 6240
|
- CR 800: NOK 12860
- CR 850 (w/display and keyboard): NOK 15860
|
- Tinytag Plus Re-Ed (8 bit) IP 68: SEK 1990
- Tinytag Plus Re-Ed (8 bit) OEM: SEK 1490
| Supplier
| IT-AS
| IT-AS
| Intab
| Accessories needed
|
|
|
|
Drip rate counter
CO2
Water level
Digital
- SDI-12 protocoll
- RS-232, either bipolar volatge levels, or TTL
- RS-485, multidrop
- digital pulses
Analog
MODEL
| DESCRIPTION
| AANDERAA INSTRUMENTS WATER LEVEL SENSOR
|
| CAMPBELL SCIENTIFIC
| Campbell Scientific
Water level sensor types
- Sensor types (quoting from their web page)
- Groundwater level, in deep observation wells: 6-wire resistive gages or vibrating wire pressure transducers
- Groundwater level, in more shallow water applications: Piezometers, bubblers, or float and pulley systems
- Surface water level, "measurements are often made in a vertical stand-pipe (stilling well) installed adjacent to a lake, river, or stream". "A float and pulley is often used, but pressure transducers, ultrasonic, and resistive tape sensors work well also ..."
- Measurement range: 0.5 - 10 m
- Accuracy: +/- 1 cm, or 0.4% of distance to target (whichever is greatest)
- Operational accuracy: 1" (2.54 cm) typ
- Resolution: 0.1 mm
- Output: Serial ASCII, pulse train, SDI-12
| UNIDATA WATER LEVEL SENSOR
|
- Unidata, Australia
- Mod 6541 Precision Water Level Instrument
- Based on float system; as the water level changes the input shaft rotates. An optical encoder is mounted on the input shaft.
- Measurement range: 0 - 65.5 m, or 0 - 13.1 m
- Resolution: 1.0 mm, 0.2mm, 0.1 ft (depending on float pulley used)
- Accuracy: Same as resolution
- Output: "High speed serial signal UNIDATA HSIO standard". Options for SDI-12, 4-20 mA and dual HSIO channels.
- Power: Internal battery pack, 1 year. Or external battery.
- Based on differential pressure sensor, with venting tube to air. Also measures water temperature.
- Operating range: 1, 2, 5, 10, 20 metres of water
- Resolution: 0.05%, 0.05 mm @ 1 m range
- Accuracy: +/- 0.2% full scale digital output (depth), +/- 0.3% full scale analog output
- Power: 6 - 18 Vdv, 6 mA
- Range: Three models, 0 - 0.5 m, 0 - 1.0 m, 0 - 2.0 m
- Accuracy: 0.5 % of full scale reading
- Output signal: 0 - 2.55 Vdc full scale
- Power: 5 Vdc, 3.5 mA
| STEVENS WATER MONITORING SYSTEM
|
- http://www.stevenswater.com/
- Their water level web page provide a description of sensor principles used: Pressure, Encoders/floats, Non-contact (ultrasonic), Capacitive. They have a broad range of sensors.
| "PRESSURE BLADDER" WATER LEVEL SENSOR
|
Specifications:
- Measurement range: 5 - 50 cm water
Design
UNIT CONVERSIONS
- Source: Elfa.se
- 1 PSI = 70.31 cm H2O = 6.895 kPa
- 1 cm H2O = 0,01422 PSI = 0.09806 kPa
- 1 kPa = 0.1450 PSI = 10.20 cm H2O
SENSORS
- Pressure sensor #1
- Pressure sensor #2:
- Supplier: ELFA, http://www.elfa.se p/n: 73-404-09
- Mfr: HONEYWELL, p/n: DC030NDC4
- Differential
- Pressure range: ±30.0" (76.2 cm) H2O
- Sensitivity: 0.133 V/inch H2O = 52.4 mV / cm H2O
- Temperature compensated, amplified bridge output
- Pressure port dia.: 4.8 mm
- Pressure bladder:
- Valve dia. (metal threading): 7.7 mm
- Valve dia (neck): 8.1 mm
ITAS WATER LEVEL SENSOR
- Supplier: ITAS
- Model: MT_3
- Range:
|
Draught meter
Radiolocation
Communication
Can it also be used for data communication?
Weather Station
Draught detection
SPORING VINDHASTIGET
HVORDAN KNUSE AMPULLEN
- Elektromagnet
Attach:elektromagnet.jpg Δ
- Kraft: 16N @ 1mm / 1.1 N @ 15mm
16 N -> tilsvarer kraft fra lodd på 1.6 kg.
- Elfa P/N: 54-603-73
- 24 V dc spole / 11 W
- Forme akse som presser mot ampullen til en spiss slik at trykk pr. flateenhet blir større.
- DC/DC-omformer som tar inn 1.5 V / 3 V spenning og konverterer til 24 Vdc, lagre energi i kondensator som så "avfyres" i spolen.
- Fjær med utløser
- Fjær som spennes, med elektronisk utløsermekanisme.
- Motor m/gear som driver skrue
- Skruen er spisset. Vi kan her sikkert få den kraften vi trenger.
ELEKTRONISK BRYTER
Det finnes mange komponenter som er effektive brytere, og som kan slippe mye strøm igjennom. La oss si 15 A, 24 Vdc - bruker Power Mosfet - kanskje 0.3 ohm motstand over "bryteren" når den er på. Noen kan styres med 0 - 5 V puls. Tyristorer kan også vurderes.
SPØRSMÅL OM TIDSSTYRINGEN
- Er det et bestemt klokkeslett som skal innstilles, eller er det nok å kunne velge x minutter frem i tid, fra man aktiverer enheten?
MEKANISK
- Hva er max ønskelige mål?
LINKS
Cave research
- How cave studies are related to climate research. (Norwegian)
- The Cave Man - on TV (Norwegian)
- Norwegian Speleological Society (Norwegian)
- Extensometric Measurements to Monitor Fault Activity in the Rochefort Cave (Belgium). Also measuring temperature, driprate ....
- Speleogenesis - Online Scientific Journal
- Trace elements in speleothems: a short review of the state of the art
- In situ measurement of seasonal d18O variations and analysis of isotopic trends in a modern speleothem from southwest Australia
- Chemical Kinetics, Speleothem Growth and Climate, by Wolfgang Dreybrodt, Institute of Experimental Physics, University of Bremen
- Study of karst hydrology ..., A.F. Tooth & C. Spötl, Dept. of Geology and Palaeontology, Univ. of Innsbrück.
- The Geology and Geochemistry of the Gunung Mulu and Gunung Buda Caves
- Absolute temperature records and rainfall patterns from tropical speleothems
- Research Pages of Karst, Caves and Karst Water Resources
- Smoke tracer system for rock fracture mapping
- Research Projects, cave related, Univ. of Birmingham
Tourist attractions
.. Stump Cross is the scientific work occurring in the cave .. Data loggers are currently in the cave measuring drip rates ..
Instrumentation
The electronic journal Speleonics is the official publication of the Communications & Electronics Section
- Auriga is a Palm OS cave survey freeware.
- Hydrolab Minisonde: Temperature, DO, Conductivity, and pH plus up to two additional sensors
|
