	Title     SVALEX-2013     E-workshop documentation
	By O.M.	Date 24 January 2014	Version 0.1

SVALEX-2013, SURVEY WITH RV "HÅKON MOSBY"

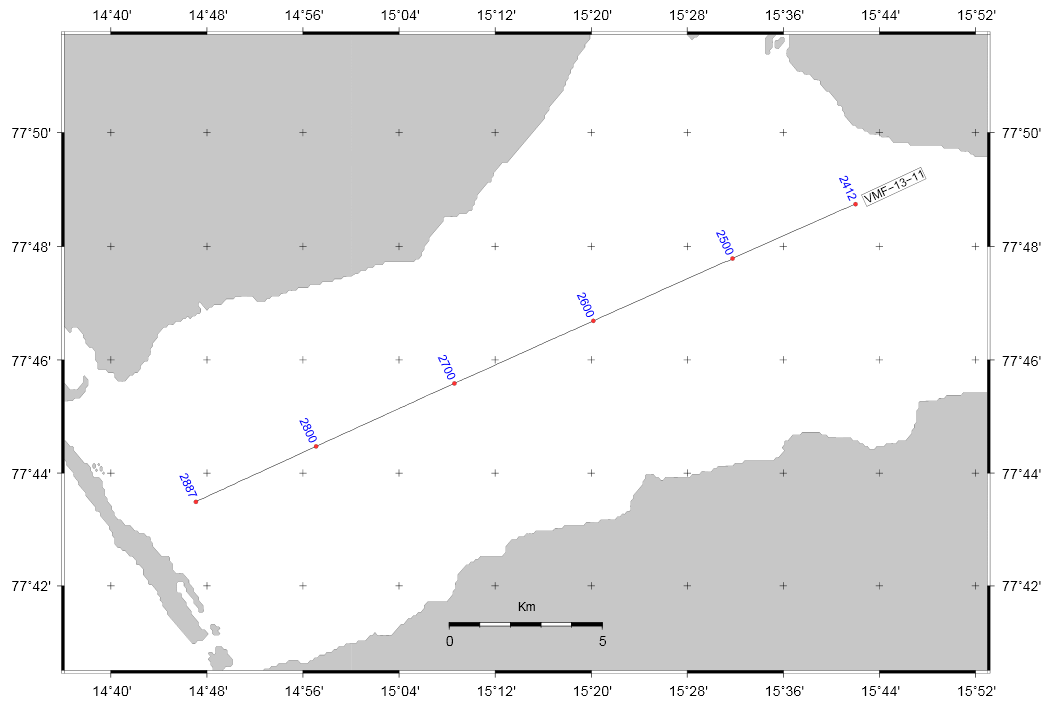

UKOOA P1-90 NAVDATA, SHOT POINT MAPS

The shot point maps are made by GEO software on a Linux workstation. Contact B.R. or O.M. if you need to regenerate the map on e.g. a different scale.

Click to open shot point map directory, or select file from table below.

1. Shot point maps are provided as PDF files (open directory listing). Take screenshots from PDF viewer and convert to JPG or other image format, as needed. Remember to open the PDF file separately in Adobe Acrobat Reader, which provide a clear rendering of fonts and lines (unlike some PDF viewers that are browser embedded).

10-SECOND INTERVAL GRAV/MAG DATA

These data were collected on the Eiva Survey Computer.

• Link to data directory (data are in sub-directories, each for one day)

STREAMER CONFIGURATION

• Hakon_MosbyN3_Svalex30aug2012.xls

GRAVIMETER

Raw gravity meter data

Gravity meter raw data.

Base reading Longyearbyen, "Bykaia", 14. august 2013

  Still reading:
  ----------------------------------------------------
  DoY     UTC        DG       ST      CC    RAW    TC
  ----------------------------------------------------
  226   18:40:40   14634.7  14634.9   0.0    10    0.1

  Alongside ship:
  h = 2.75 m

   UTC     COUNTS
  ----------------
  19:03   6422.105
  19:05   6422.103
  19:07   6422.105

  Adjacent to Harbor Office:

   UTC     COUNTS
  ----------------
  19:15   6422.420
  19:16   6422.421
  19:18   6422.420

  Alongside ship again:
  h = 2.77 m

   UTC     COUNTS
  ----------------
  19:30   6422.095
  19:32   6422.098
  19:34   6422.100

  Still reading again:
  ----------------------------------------------------
  DoY     UTC        DG       ST      CC    RAW    TC
  ----------------------------------------------------
  226   19:40:50   14634.8  14634.7   0.0    19    0.1

Base reading Longyearbyen, "Bykaia", 23. august 2013

  Still reading:
  ----------------------------------------------------
  DoY     UTC        DG       ST      CC    RAW    TC
  ----------------------------------------------------
  235   11:01:30   14633.2  14633.3   0.0   -23   -0.2

  Alongside ship:
  h = 2.88 m

   UTC     COUNTS
  ----------------
  11:18   6421.935
  11:20   6421.935
  11:22   6421.935

  Adjacent to Harbor Office:

   UTC     COUNTS
  ----------------
  11:34   6422.302
  11:35   6422.302
  11:36   6422.302

  Alongside ship again:

   UTC     COUNTS
  ----------------
  11:48   6421.980
  11:50   6421.979
  11:52   6421.980

  Still reading again:
  ----------------------------------------------------
  DoY     UTC        DG       ST      CC    RAW    TC
  ----------------------------------------------------
  235   11:54:40   14633.0  14633.3   0.0   -3    -0.4
