RV "KRONPRINS HAAKON": GRAVITY METER <back to main page>


Back to RV "Kronprins Haakon" main GEO page

INTRODUCTION

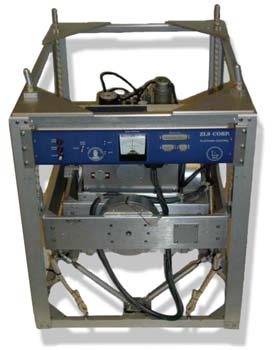

A gravity meter measures, as it's name indicate, minute variations (ppm level) in earth's gravity field. Any movement of the instrument - like those of a vessel at sea - will mask this variation. In order to eliminate effects of a moving vessel, the sensor is mounted on a two-axes gyro stabilized platform that keeps it level at all times; in addition the vessel must keep constant course and speed during measurements; also raw data is filtered in specific ways.

The gravity meter should be installed close to center of gravity of the vessel, in order to minimize roll and pitch movements.

INSTALLATION ON RV "G.O.SARS" AND RV "HÅKON MOSBY"


RV "G.O.SARS"

CLICK TO ENLARGE
Click to enlarge.

Gravity meter and power supply (beige transport case, in the background), installed on R/V "G.O.SARS". Click to enlarge.

Click to enlarge.

Gravity meter and power supply (beige transport case, to the right), installed on R/V "G.O.SARS". Click to enlarge.

Click to enlarge.

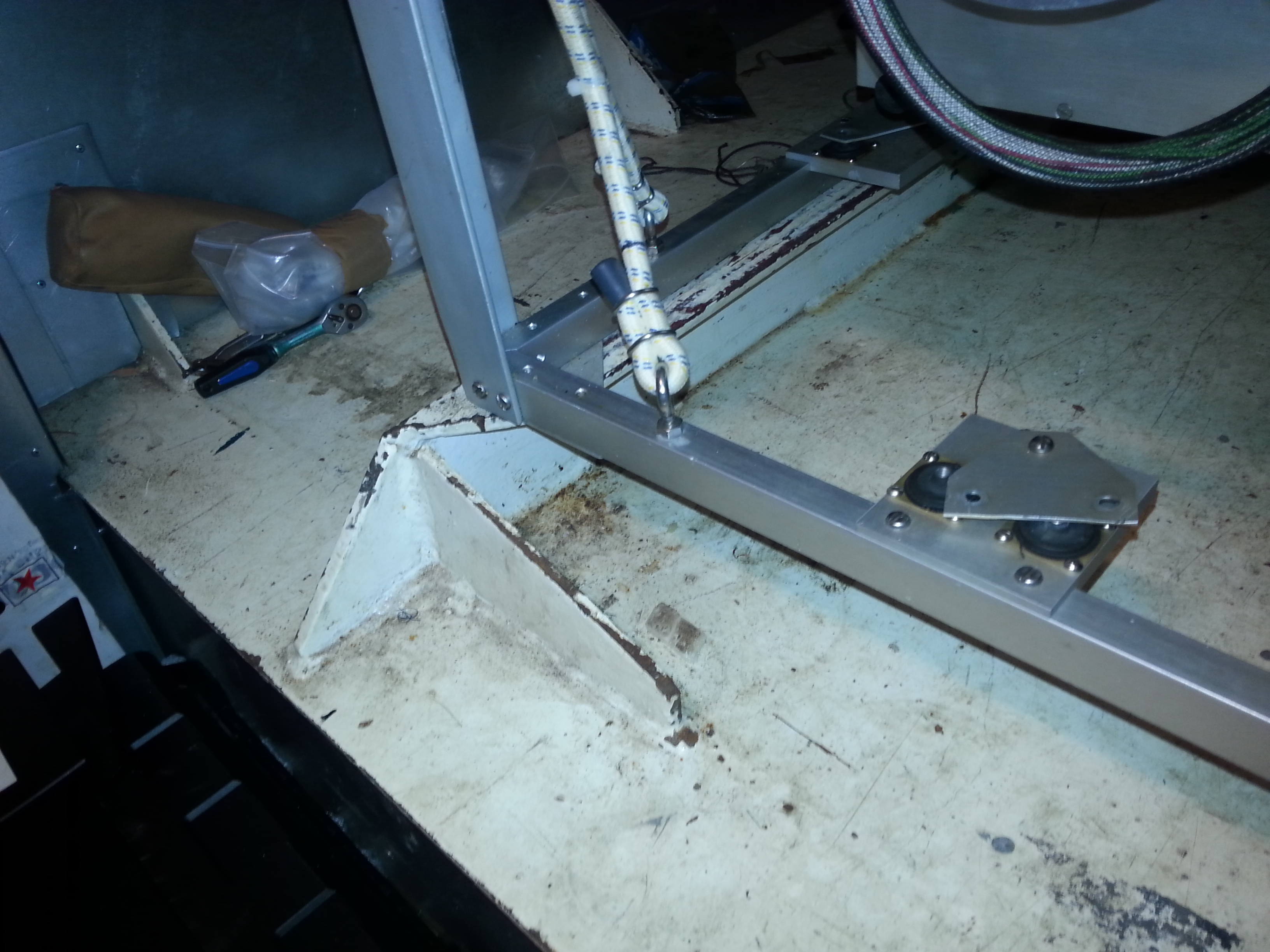

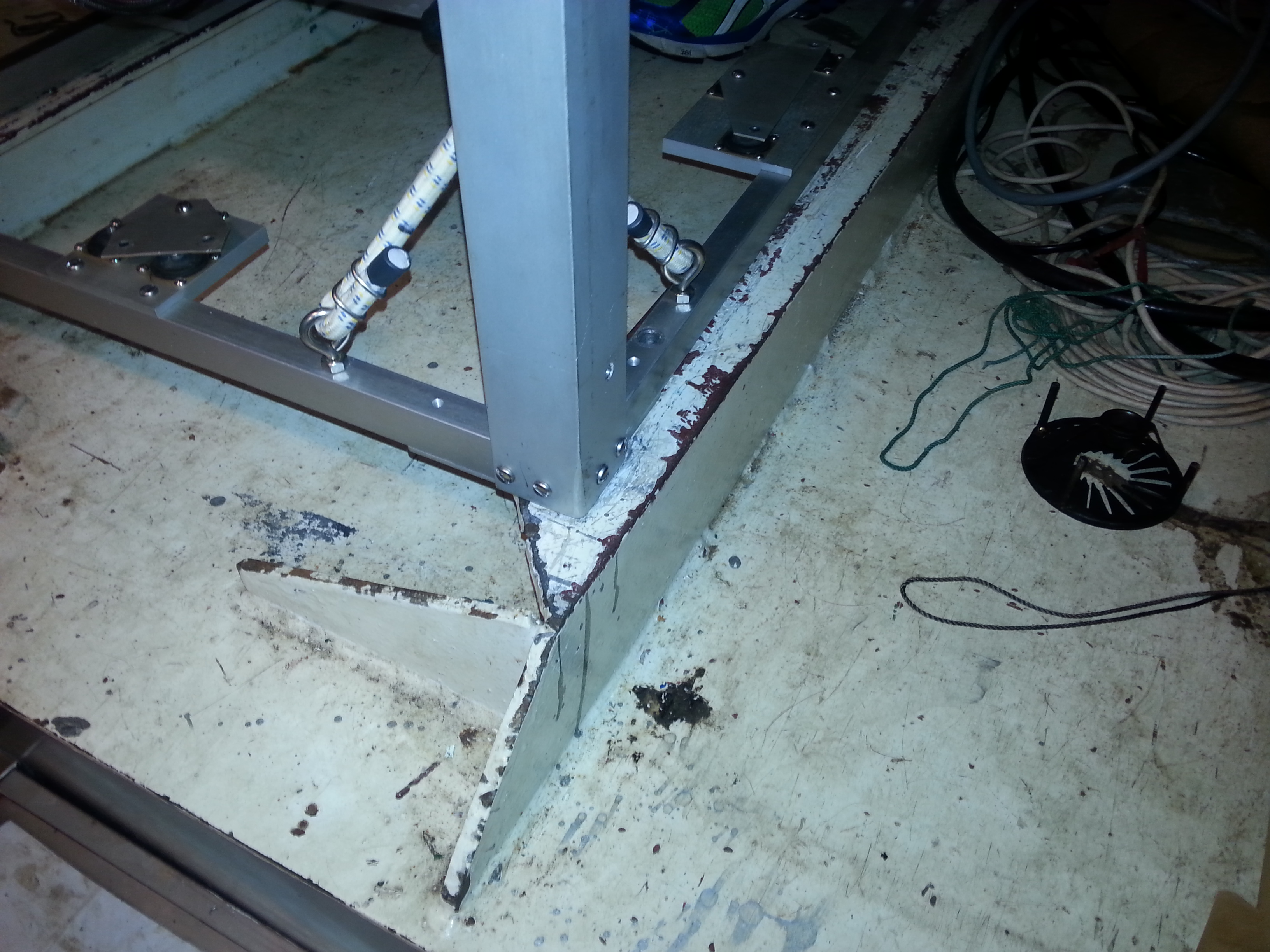

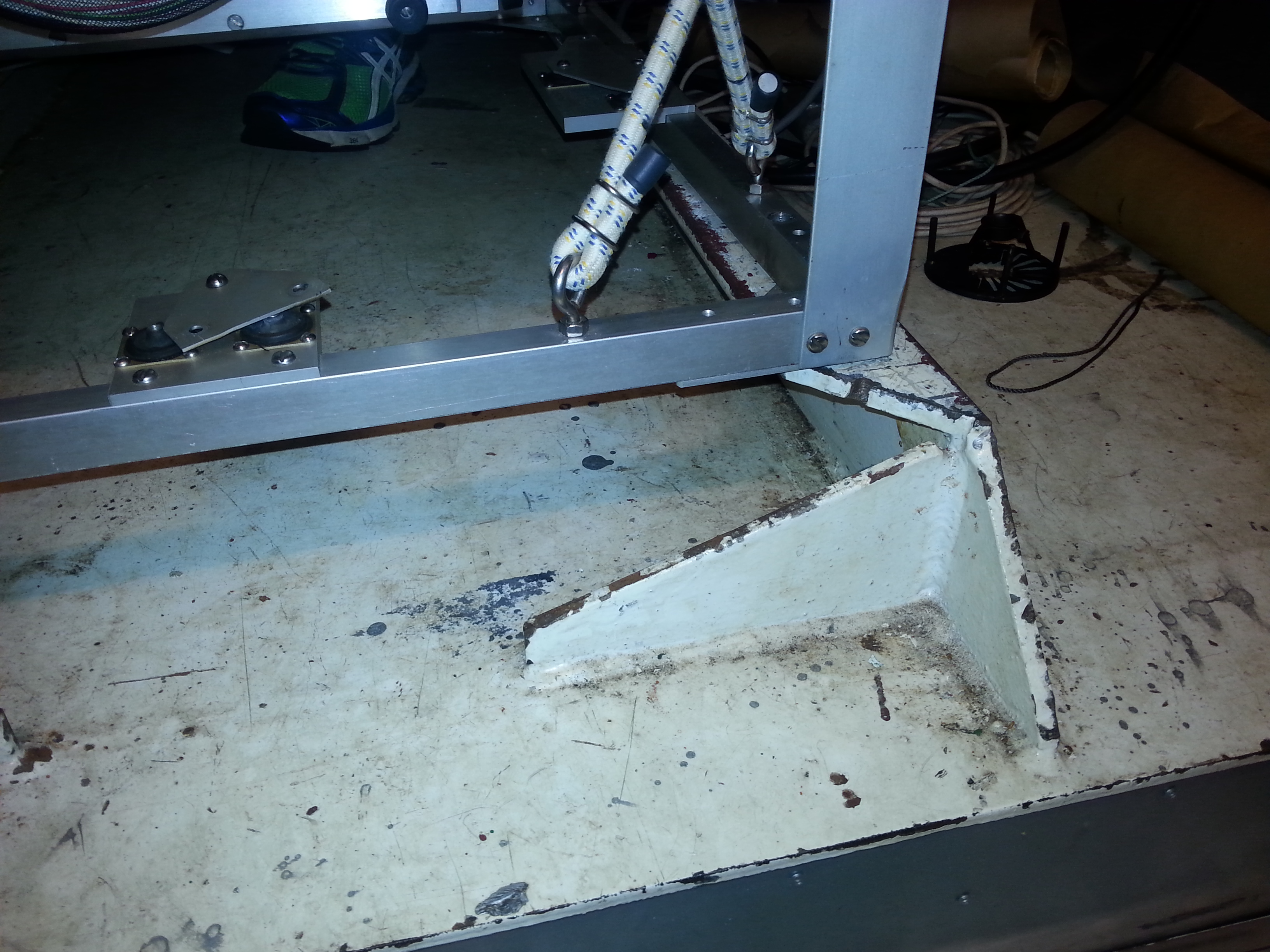

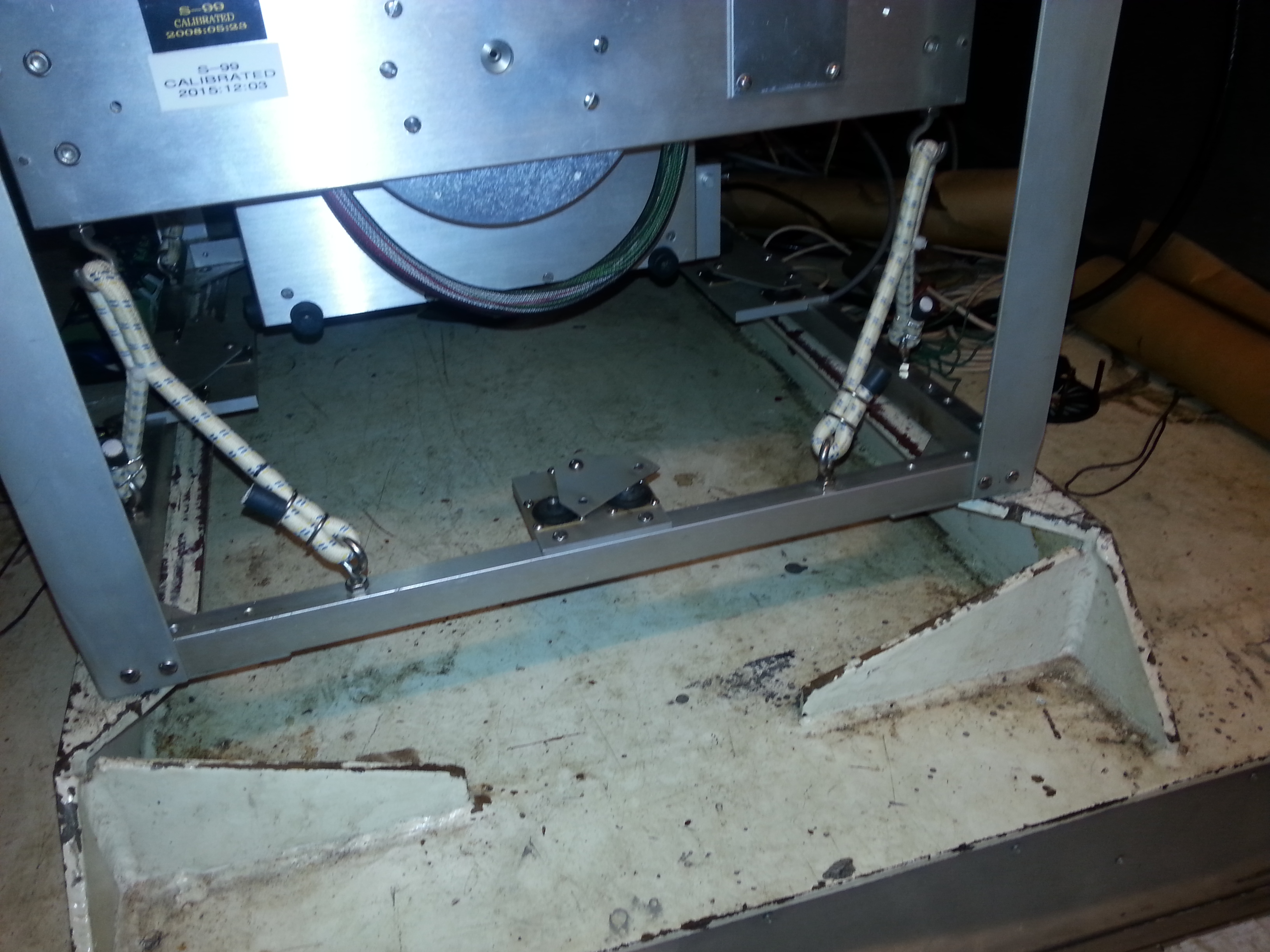

Gravity meter, installed on R/V "G.O.SARS", frame seen from side. Click to enlarge.

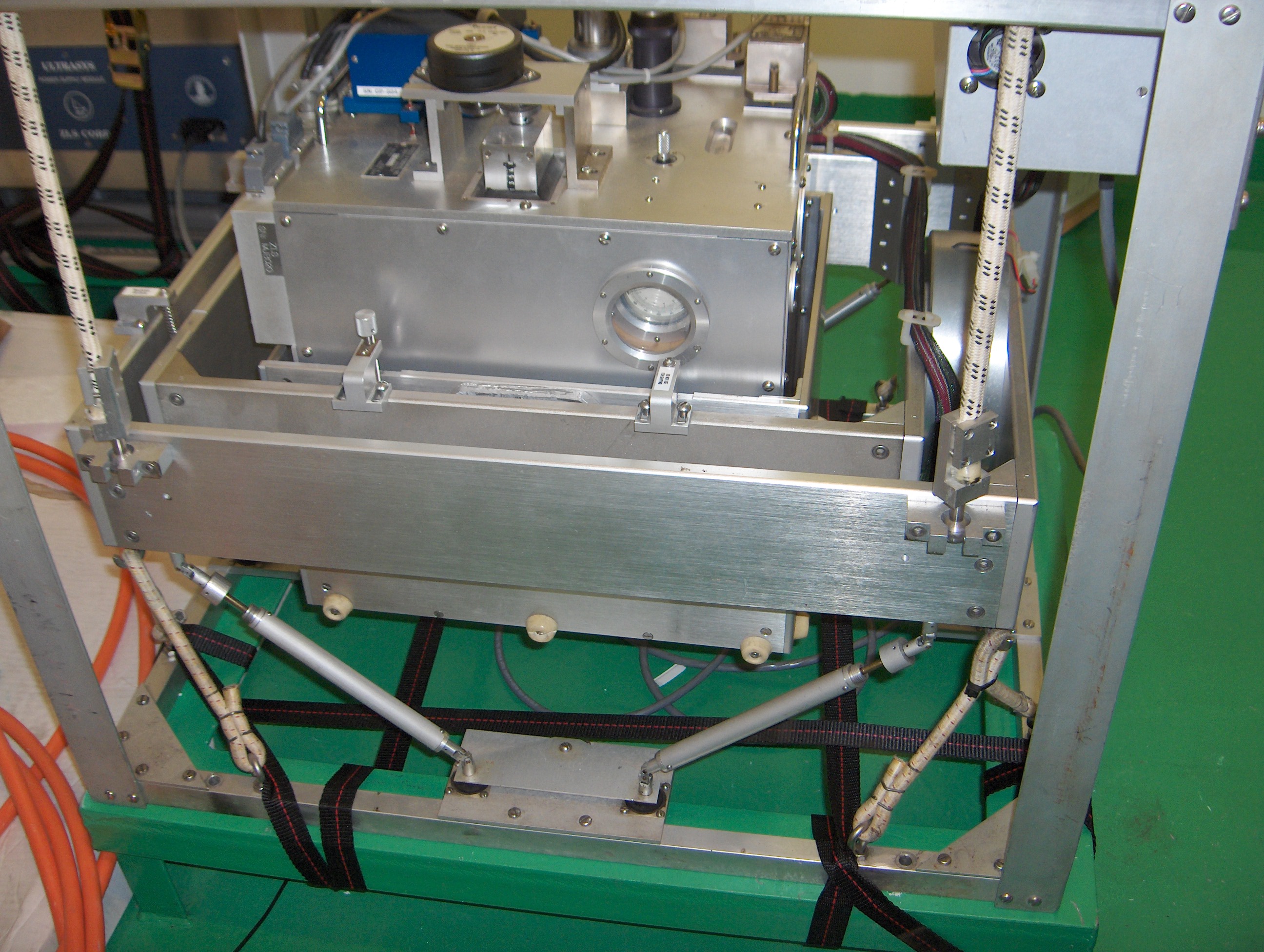

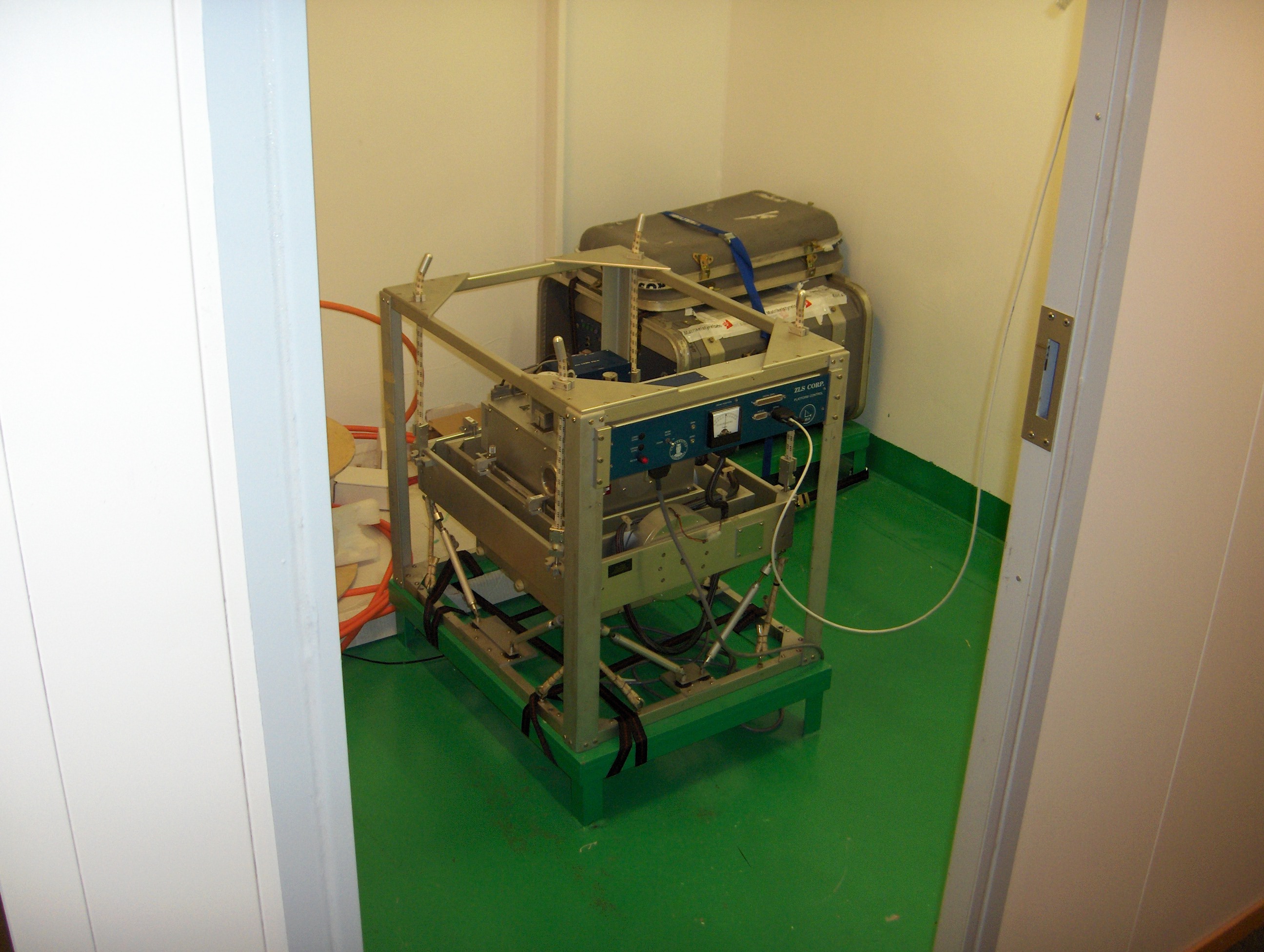

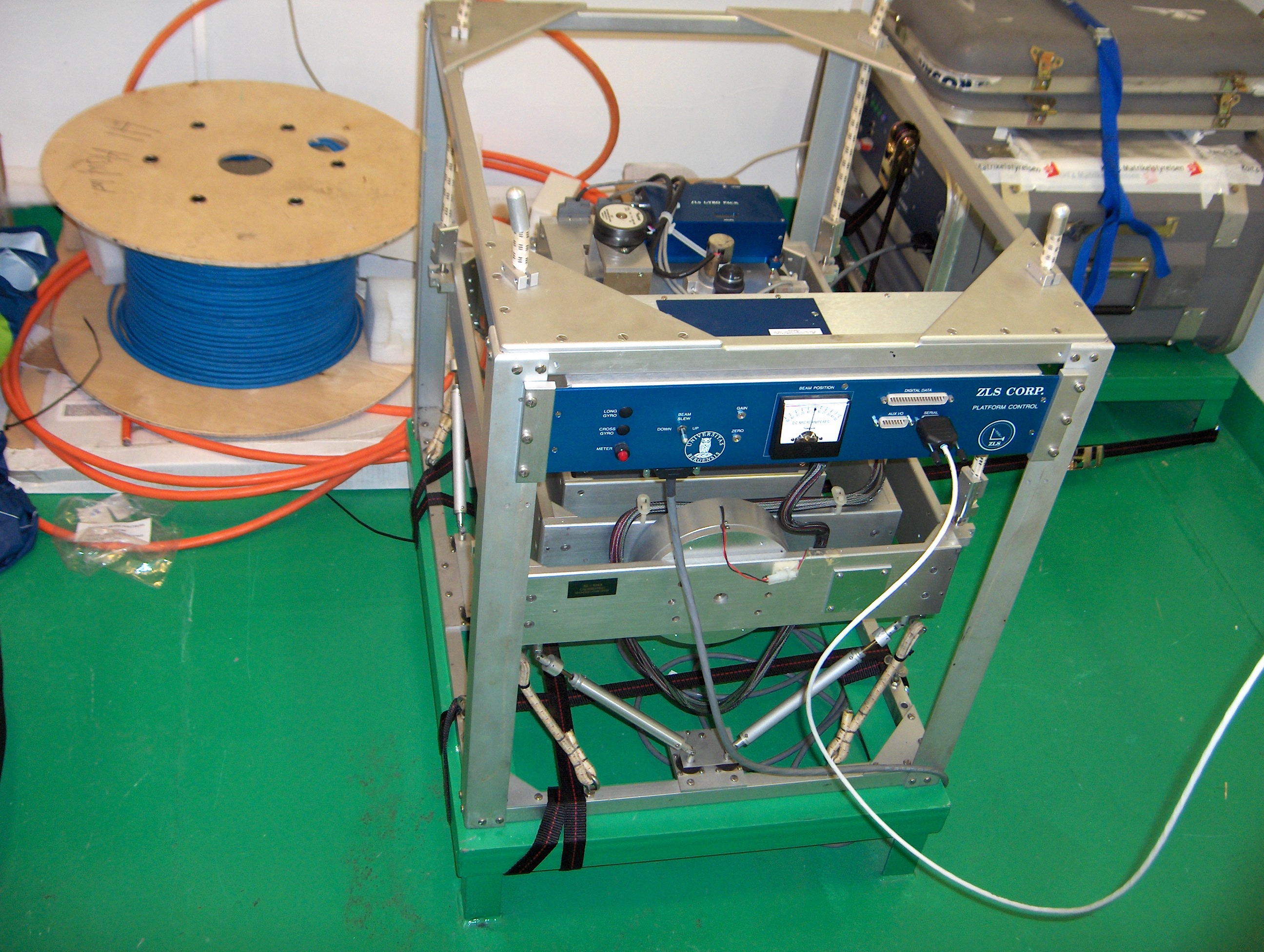

RV "HÅKON MOSBY"

CLICK TO ENLARGE
Click to enlarge. Click to enlarge.
Click to enlarge. Click to enlarge.


WEIGHTS AND DIMENSIONS


As measured, 29 July 2016


Click to open PDF version.

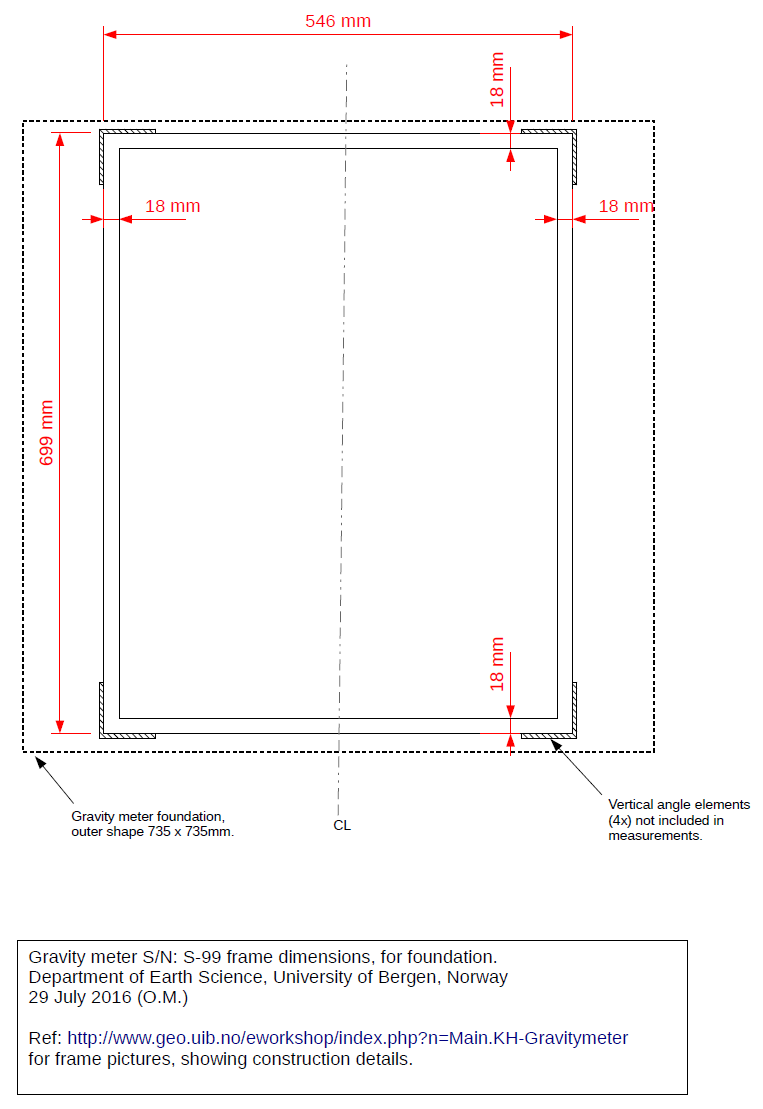

Gravity meter S/N: S-99 frame dimensions, for foundation. Dashed line is outline of foundation on RV "Fridtjof Nansen" being built 2016. PDF version.

Must be verified


The instrument consists of two units: 1) Sensor placed in a cradle within a frame, and 2) power supply module.

  #############################
    PART 1  -  GRAVITY METER
  #############################

        Weight (it consists of two main parts):

        Frame, with sensor cradle ..........: 50 kg
      + Sensor (contained within frame) ....: 22 kg
        -------------------------------------------
      = Total weight gravity meter..........: 72 kg
        ===========================================

       Dimensions, transport case for frame:
          Width (front)..: 66 cm
          Depth .........: 82 cm
          Height ........: 73 cm

       Estimated dimensions, frame:
          Width (front)..: 56 cm
          Depth .........: 72 cm
          Height ........: 63 cm


  ####################################
    PART 2  -  POWER SUPPLY MODULE
  ####################################

        Weight (it consists of two parts):

        Transport case ...............................................: 22 kg
      + Power supply, 19" unit, normally used inside transport case...: 11 kg
        ---------------------------------------------------------------------
      = Total weight power supply ....................................: 33 kg
        =====================================================================

       Dimensions, transport case for power supply:
          Width (front)..: 78 cm
          Depth .........: 58 cm
          Height ........: 26 cm


POWER REQUIREMENTS, CONSUMPTION


  Input voltage ...........................: 87 - 270 Vac, 47 - 400 Hz
  Power consumption, system in operation ..: 391 Watt (1.7 A @ 230 Vac)
