RV "KRONPRINS HAAKON": EL. CABLES SEISMICS/GRAV/MAG <back to main page>

Back to RV "Kronprins Haakon" main GEO page

2015/16 DRAWINGS - NVC-395 POLAR

Pos	Description	Drawing PNG version - click to enlarge (PDF in rightmost column)	Location	Date	Rev.	Download PDF

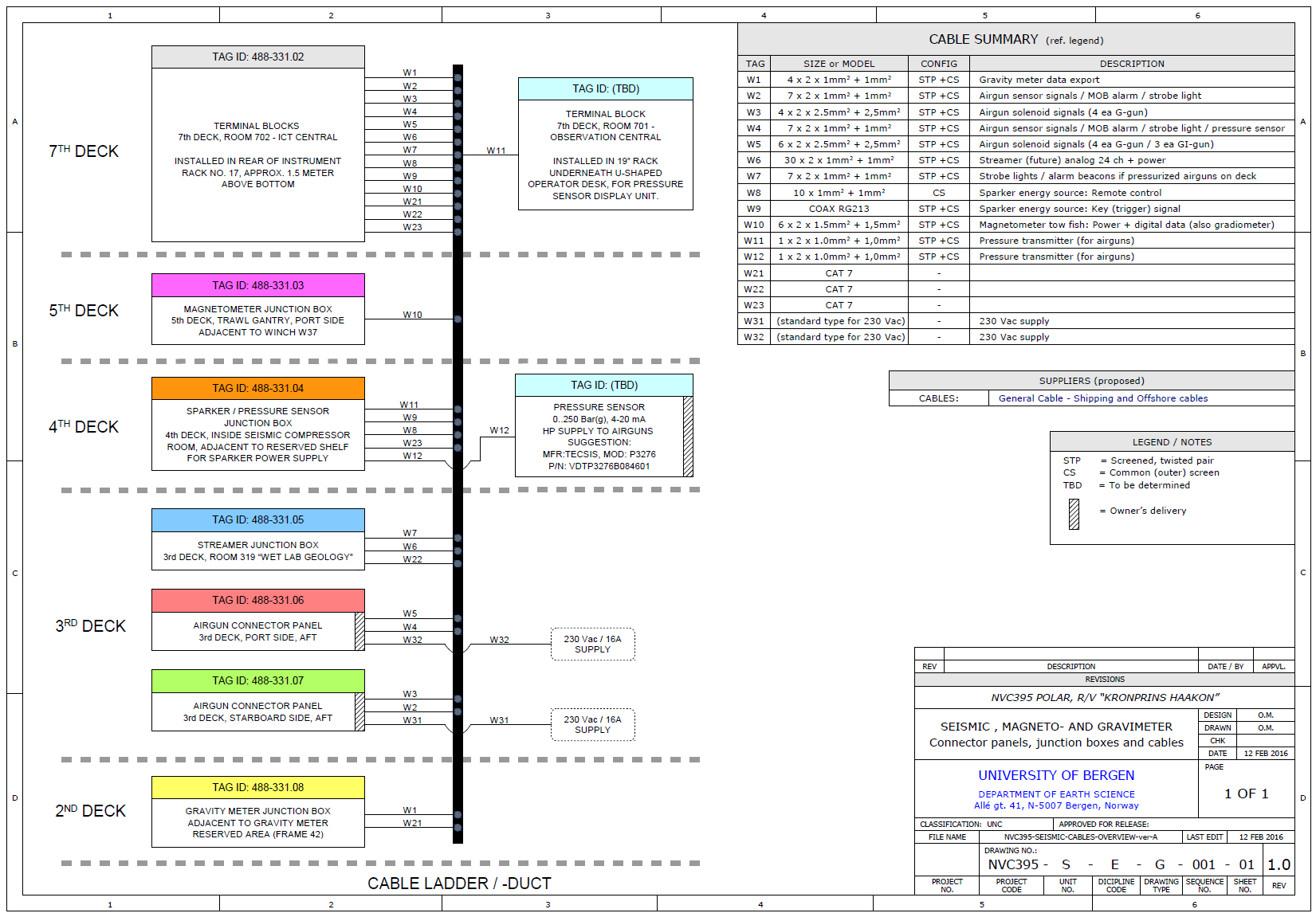

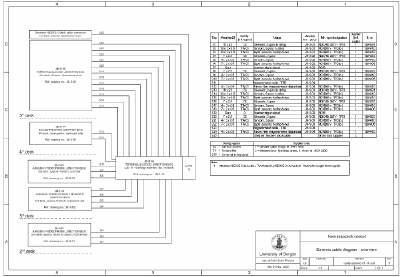

1	Connector panels, junction boxes and cables		-	12 Feb 2016	A (draft)

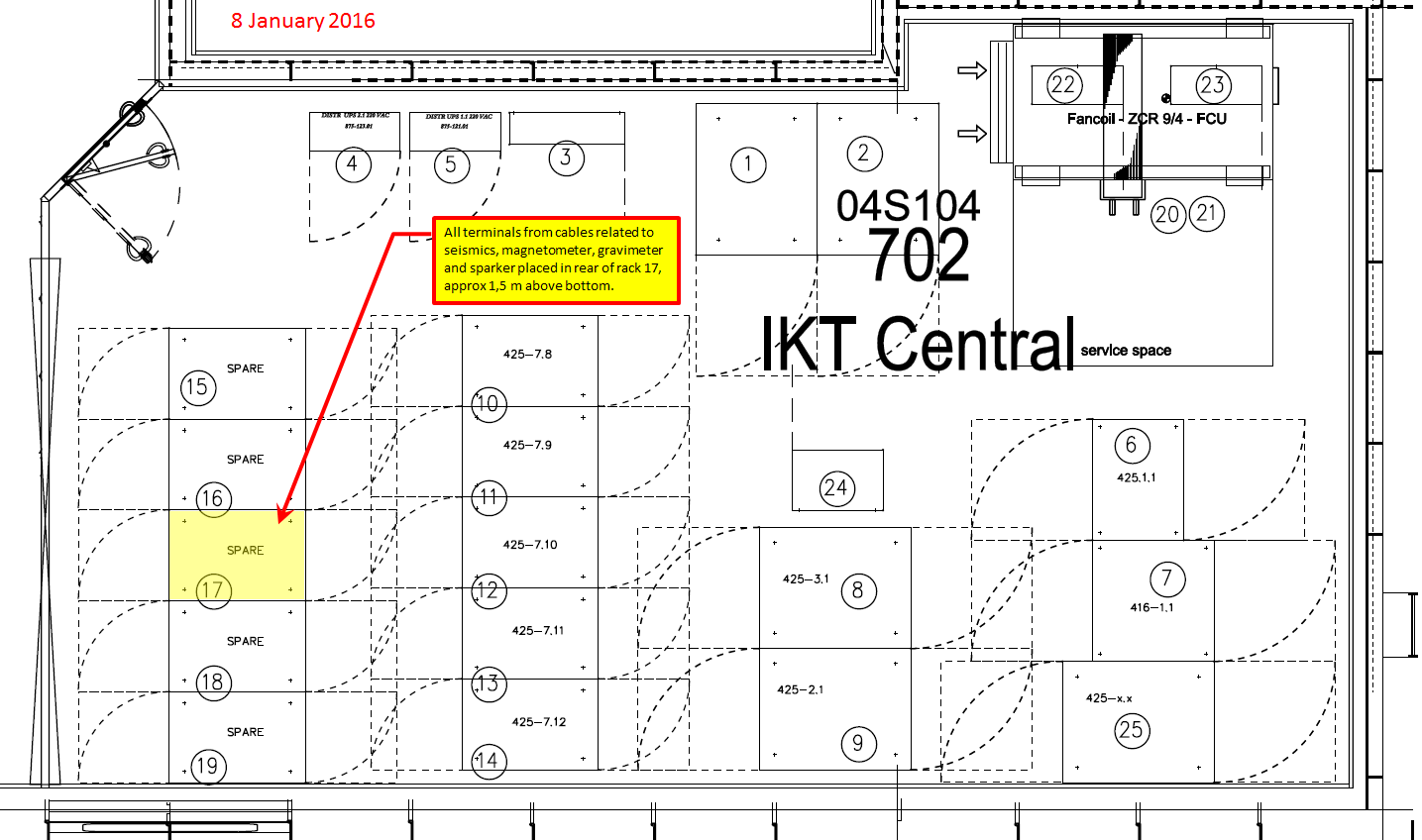

2	Terminals, room 702, IKT central, 7th deck			15 Jan 2016	A (draft)

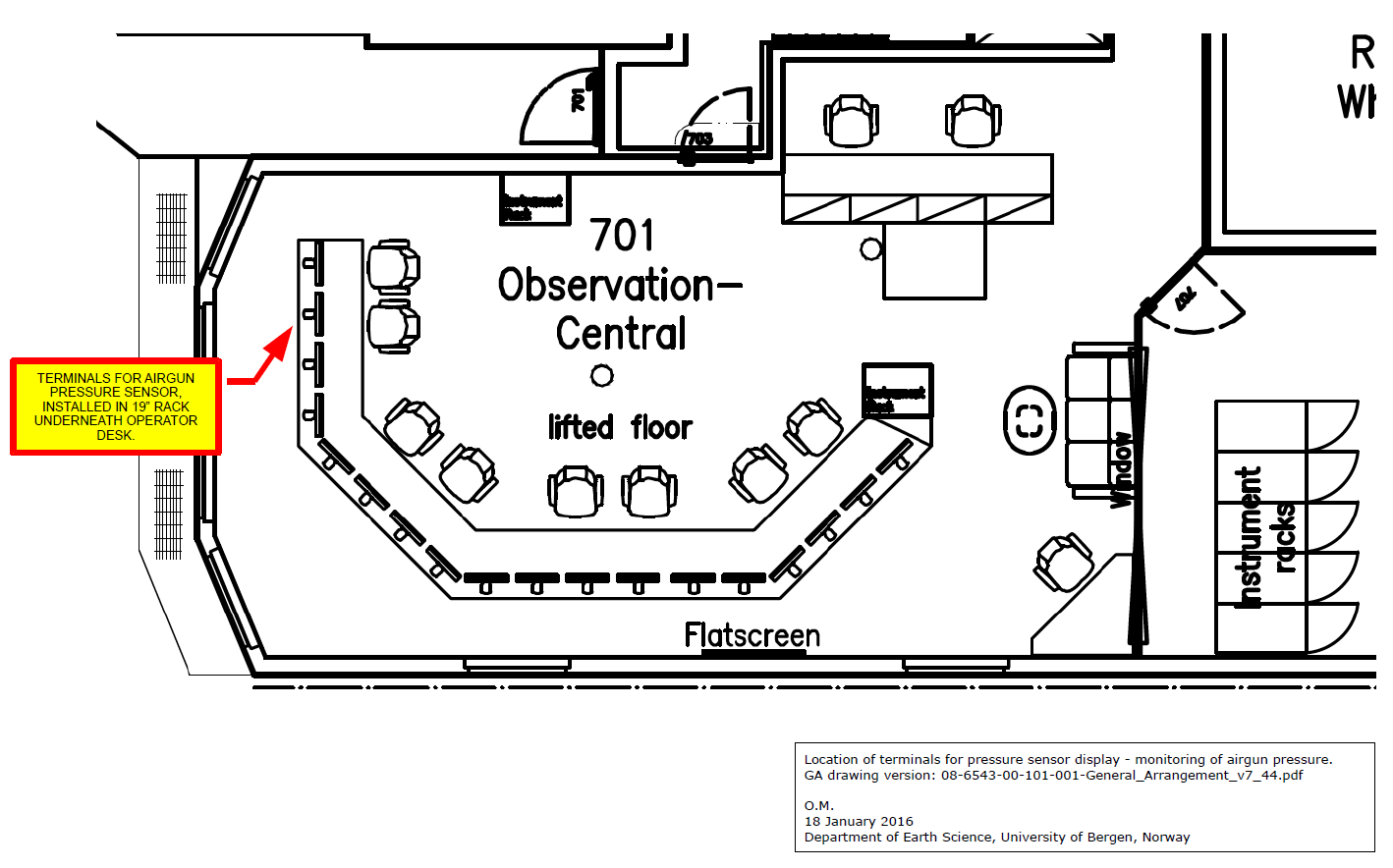

3	Terminals for airgun pressure sensor - 7th deck, room 701 "Observation central"	-		18 Jan 2016	A (draft)

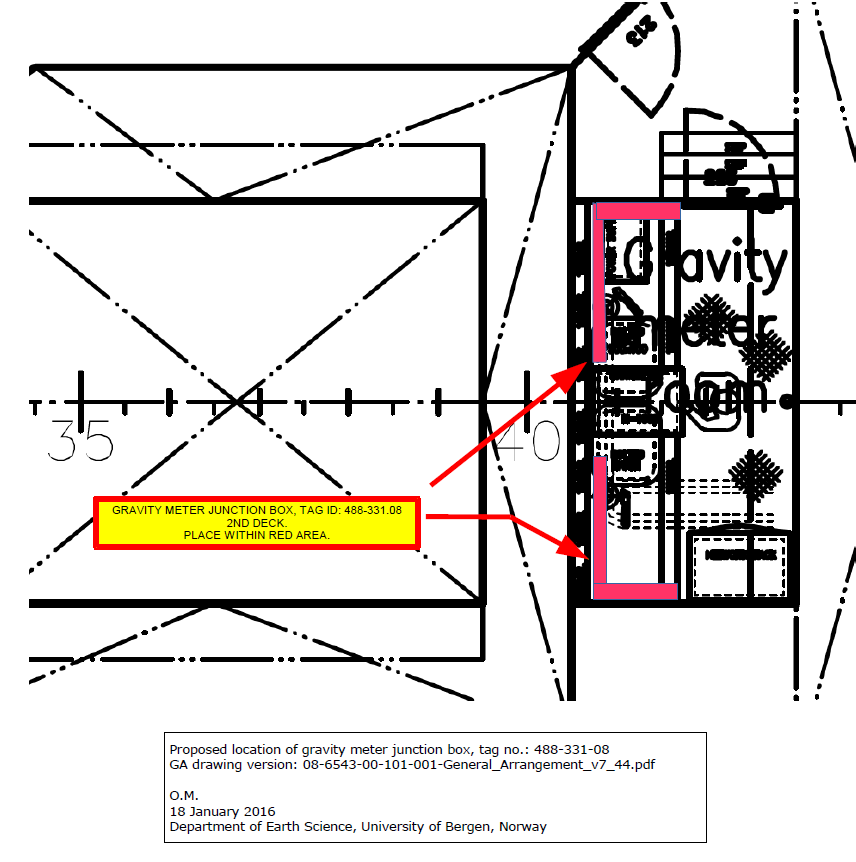

4	Gravity meter junction box, 2nd deck. TAG ID: 488-331.08	-		18 Jan 2016	A (draft)	?

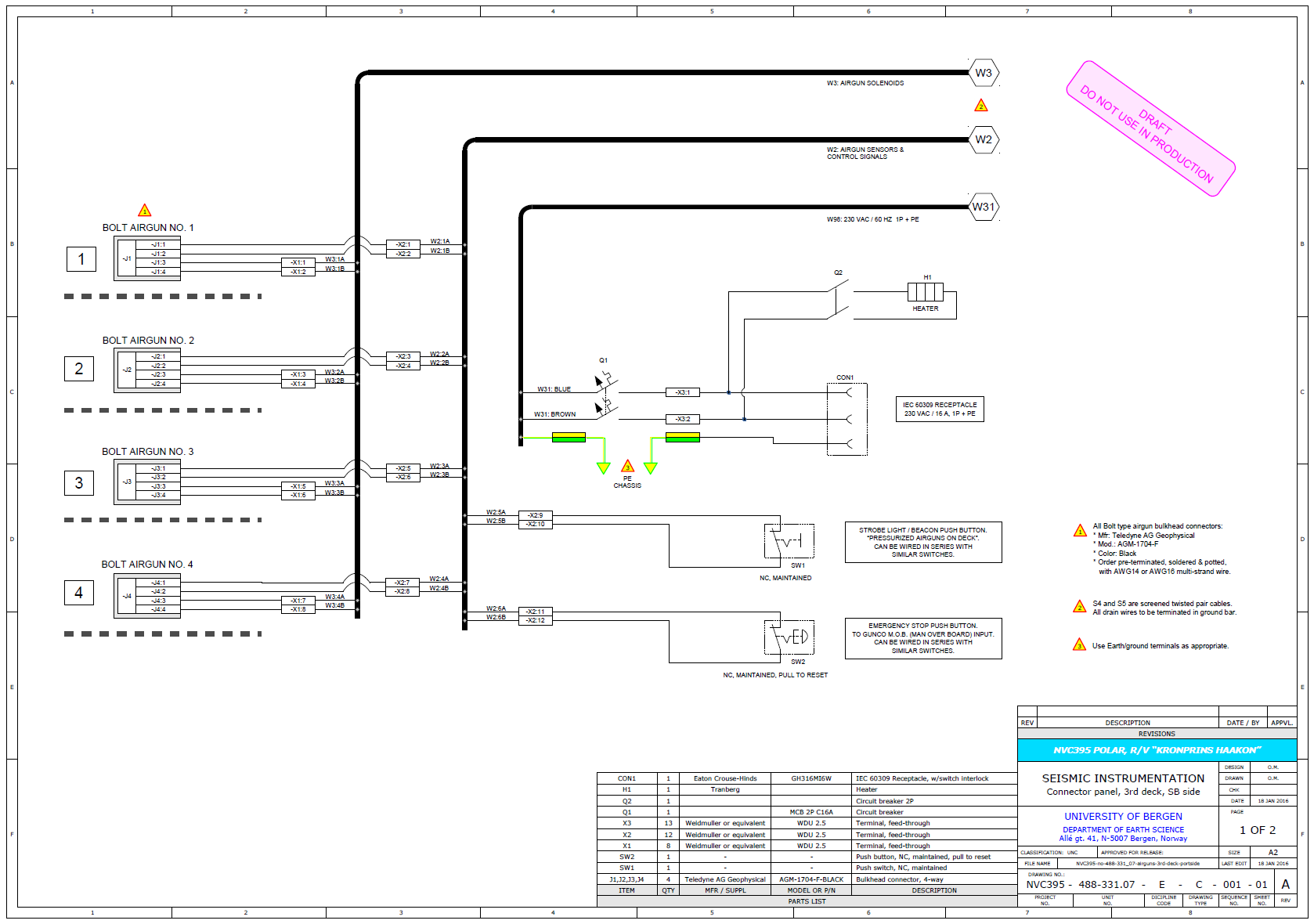

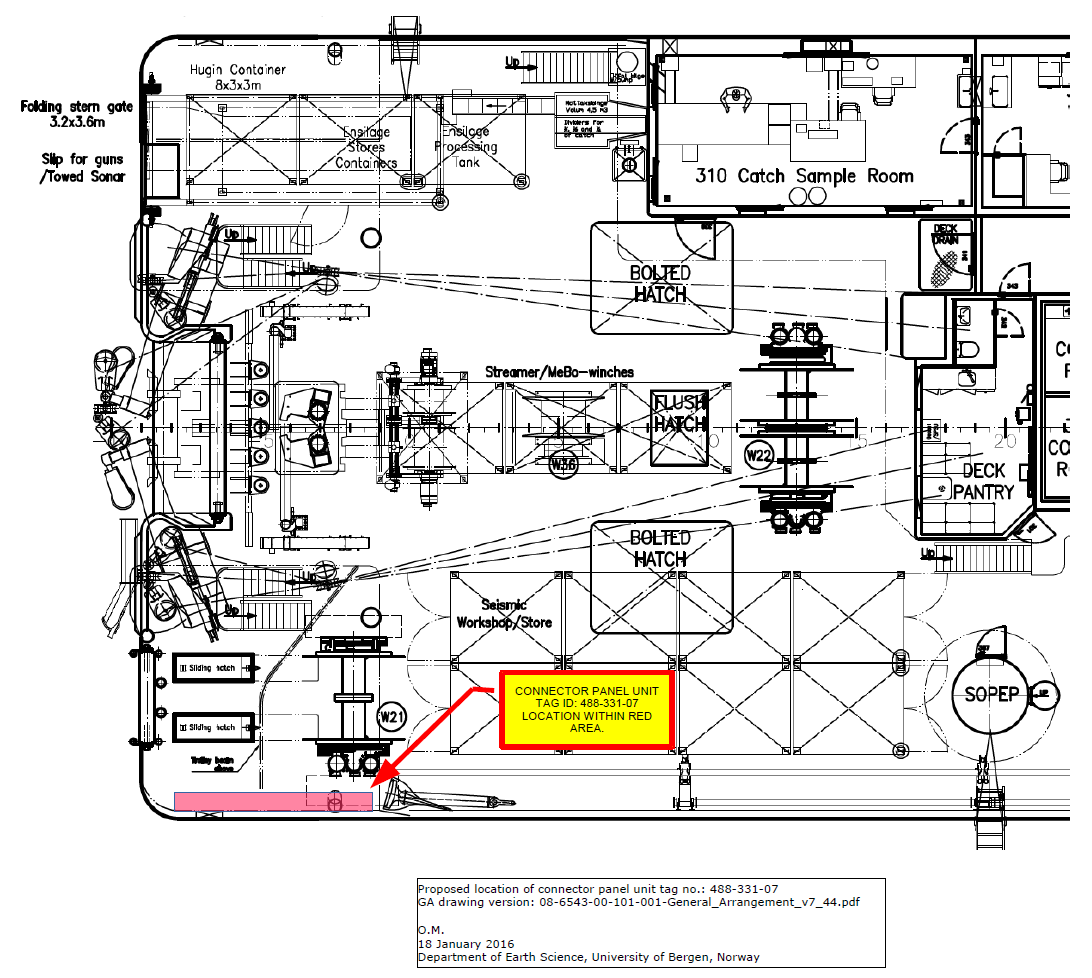

5	Airgun connector panel, 3rd deck, starboard side. TAG ID: 488-331.07			18 Jan 2016	A (draft)

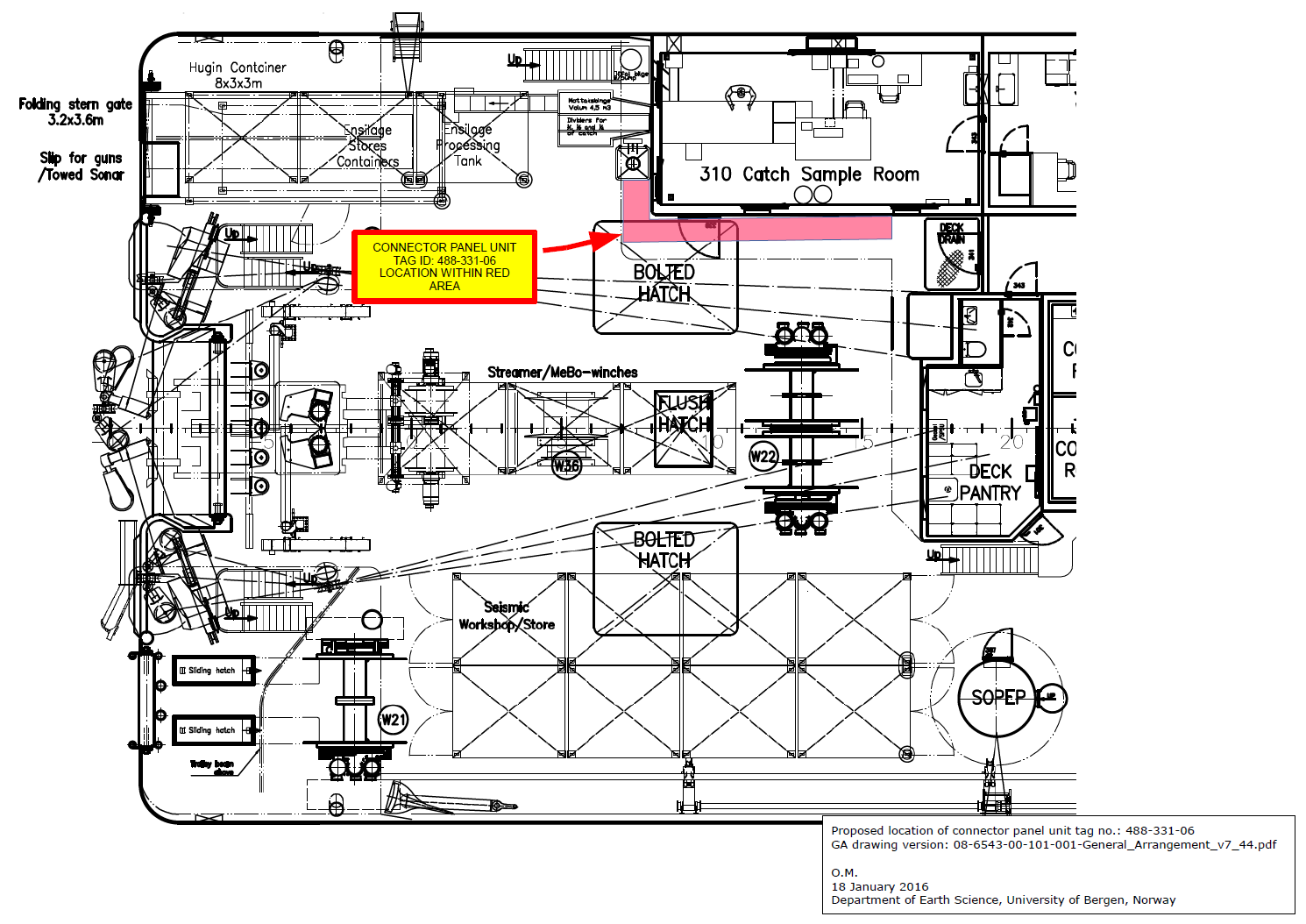

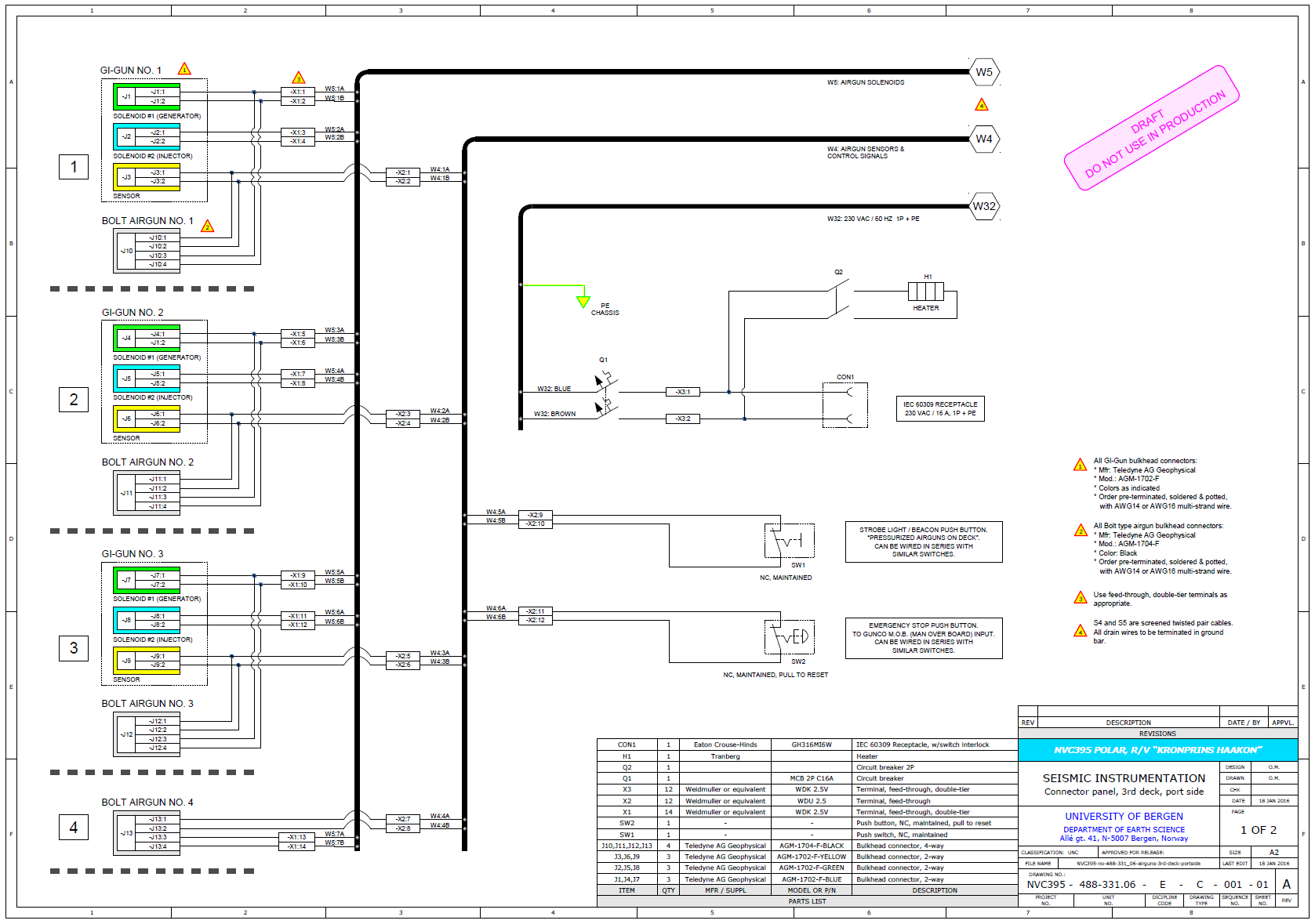

6	Airgun connector panel, 3rd deck, port side. TAG ID: 488-331.06			18 Jan 2016	A (draft)

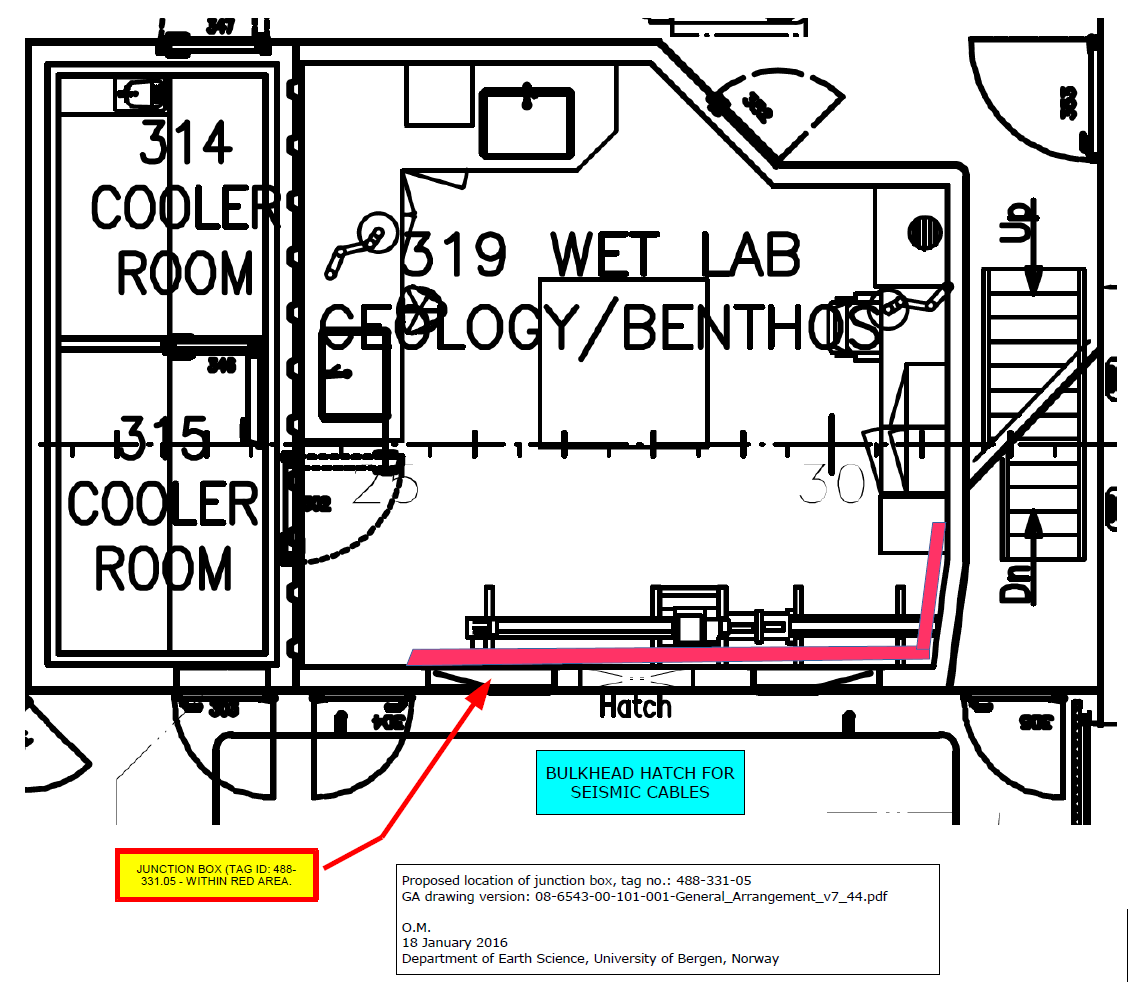

7	Junction box, inside room 319 "Wet Lab Geology" TAG ID: 488-331.05	-		18 Jan 2016	A (draft)	Δ

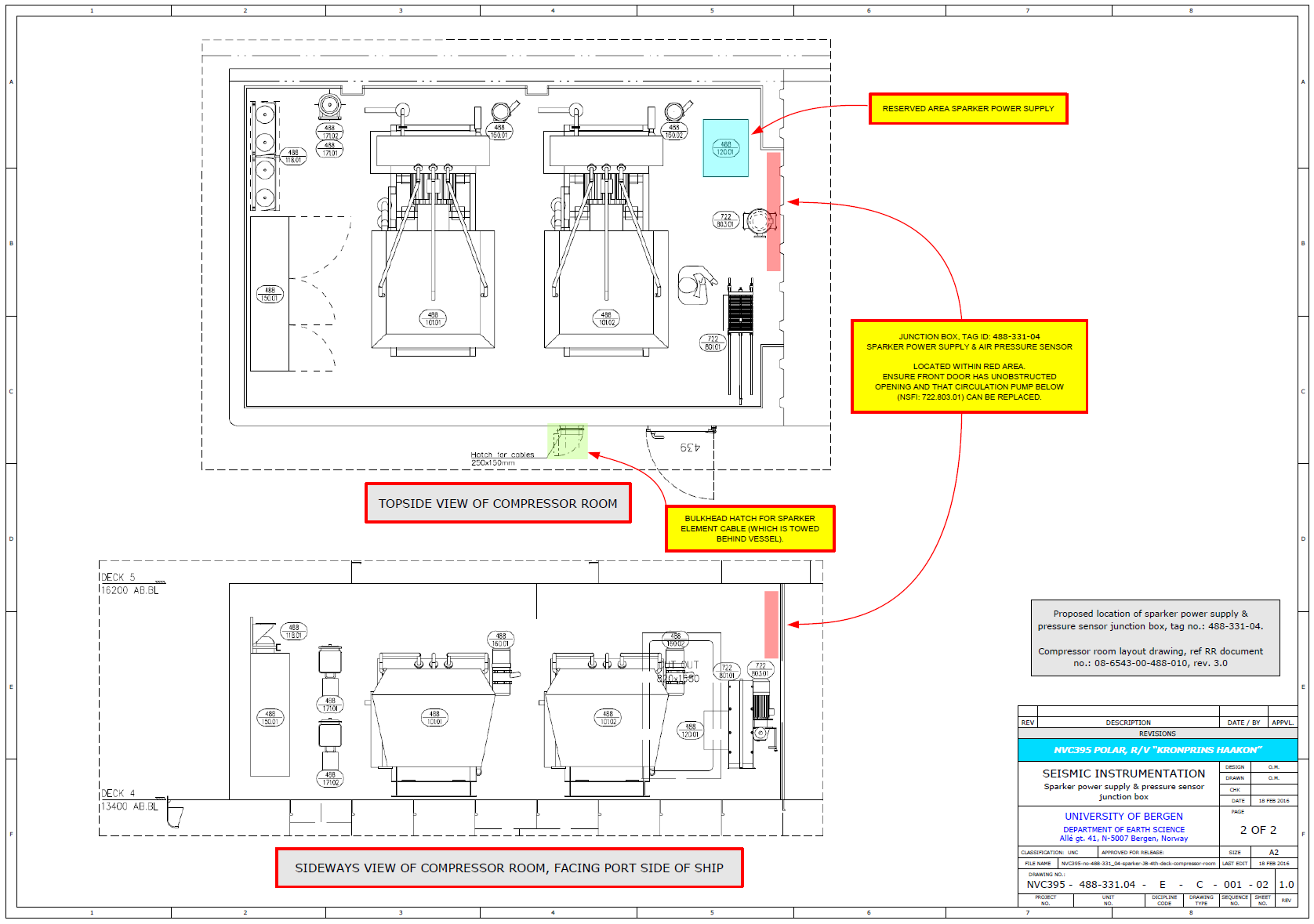

8	Sparker power supply junction box - inside compressor room 4th deck aft TAG ID: 488-331.04	-		18 Feb 2016	1.0	-

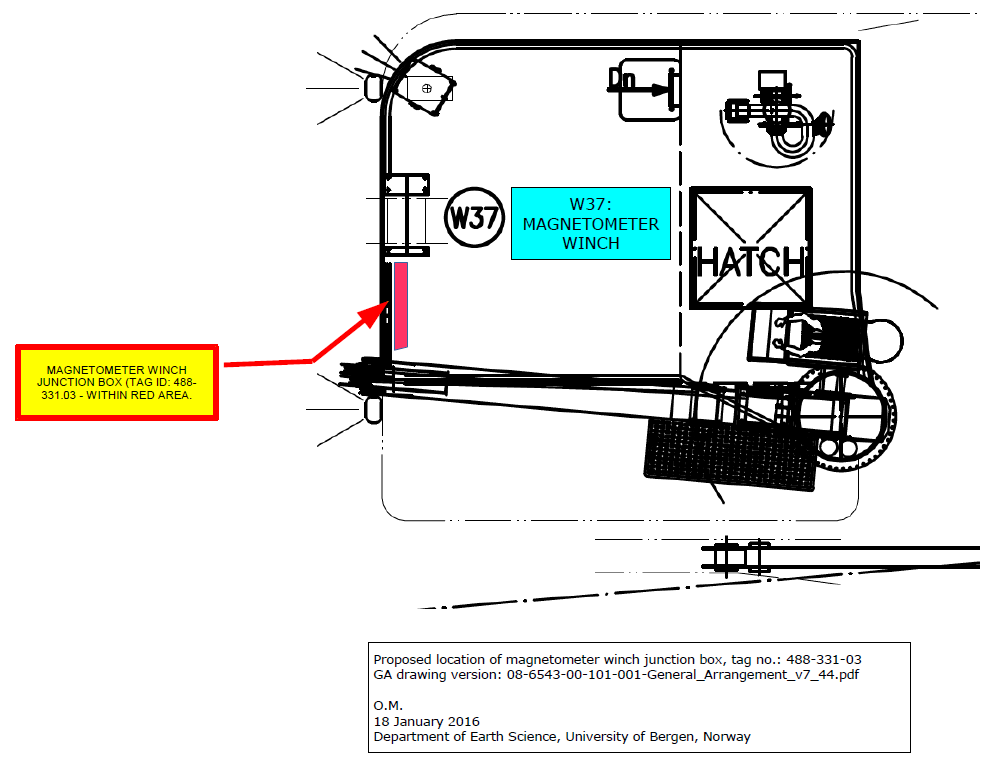

9	Magnetometer winch junction box - 5th deck, aft, port side TAG ID: 488-331.03	Teledyne AG Geophysical bulkhead connector model AGP 2708 F. Click to enlarge.		18 Jan 2016	A (draft)	?
10	Airgun connector panel, 3rd deck, port side		-	04 Dec. 2015	A (draft)

Teledyne AG Geophysical connectors

Bulkhead connectors with matching inline (cable) connectors

Teledyne AG Geophysical Bulkhead connectors. Here is Connector Catalog (PDF, 13 MByte). Sections named "NPT" refers to "National Pipe Thread Taper" standard.

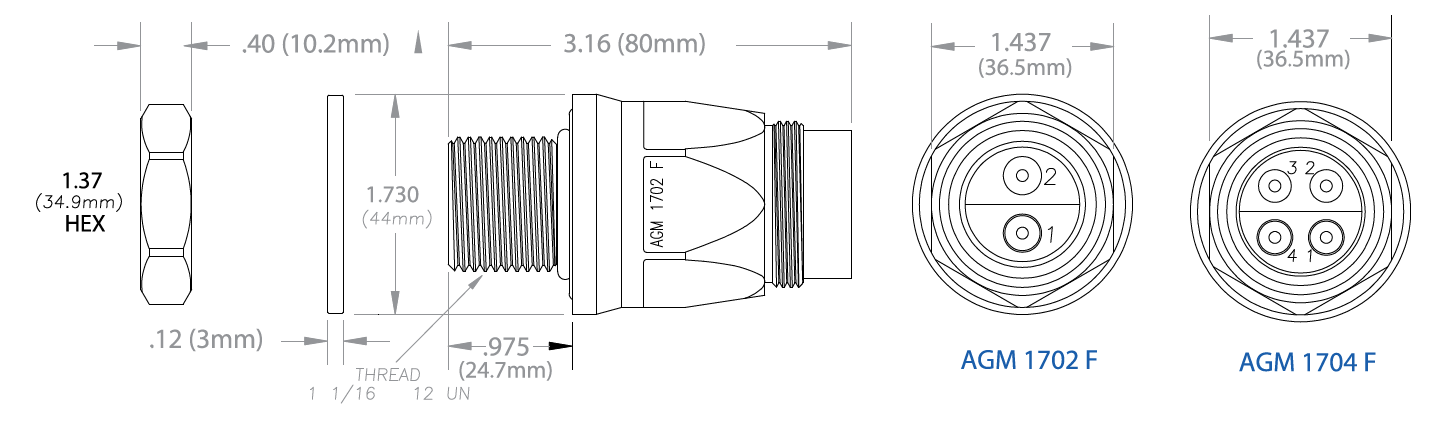

AG Geophysical mod. 170x-F bulkhead connector. From AGM Marine -> 1000 Series -> Bulkhead -> Straight-Thread catalog (PDF, 13 Mbyte). (Here is also a local copy).

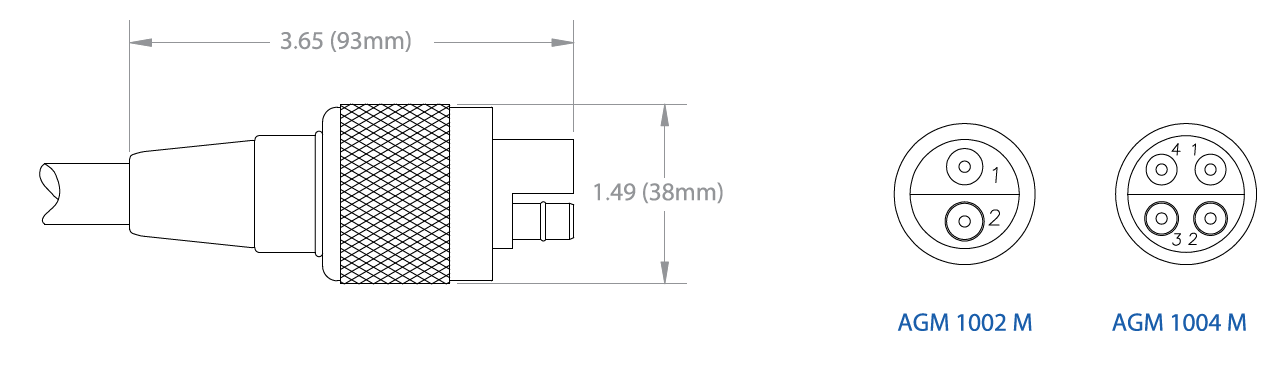

Matching AG Geophysical mod. AGM-100x-M inline connector. From AGM Marine -> 1000 Series -> Inline -> Standard catalog (PDF, 13 Mbyte). (Here is also a local copy).

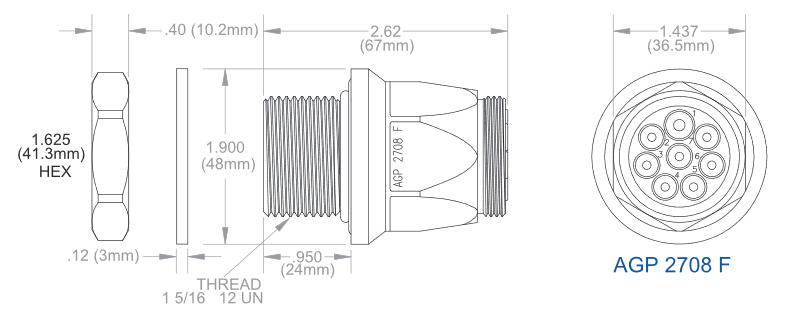

AG Geophysical mod. AGP 2708 F bulkhead connector. From AGM Marine -> 2000 series -> AGP Bulkhead Connectors -> 1 5/16" Straight Thread p. 30 (PDF, 13 Mbyte). (Here is also a local copy).

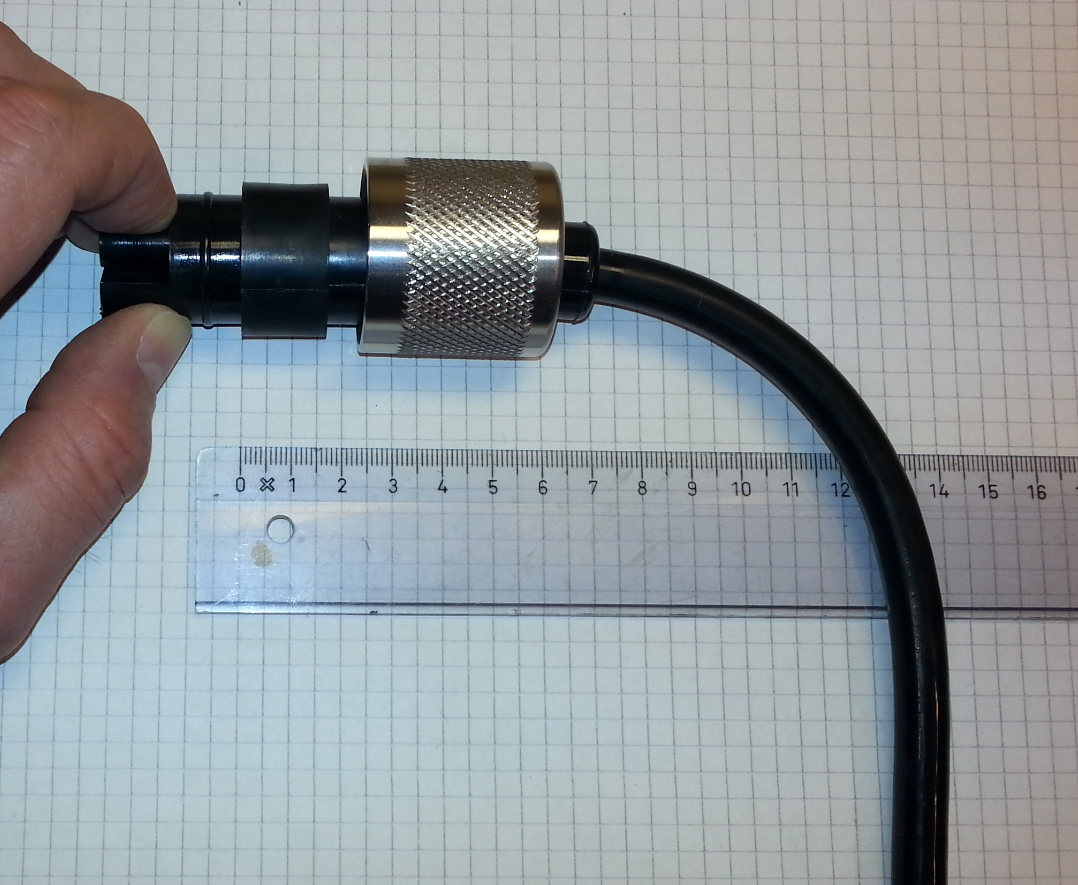

Distance required to outer door of enclosure - minimum cable bending radius

Recommended clearance distance: 160 mm

Connector panels, 3rd deck - winterization

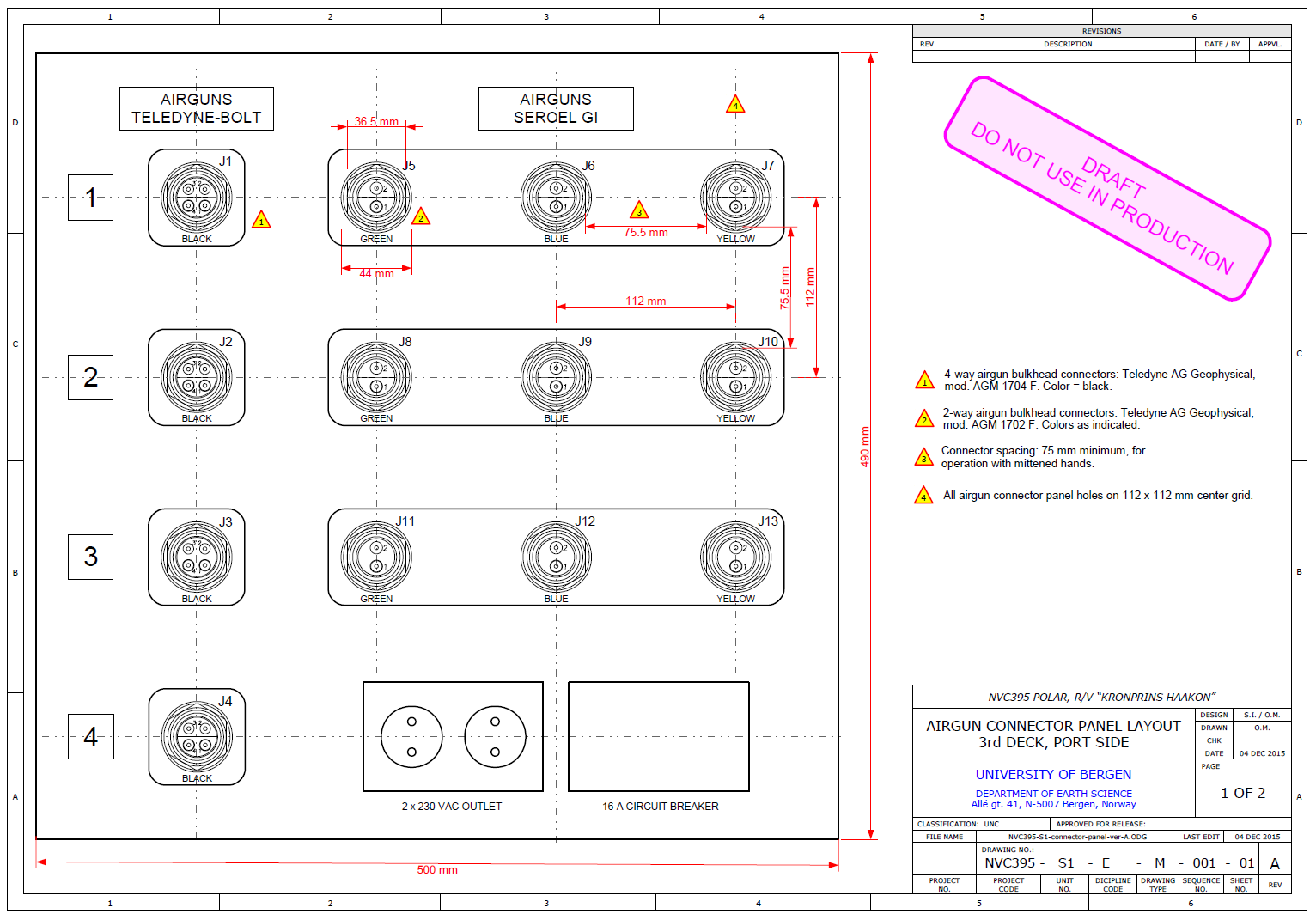

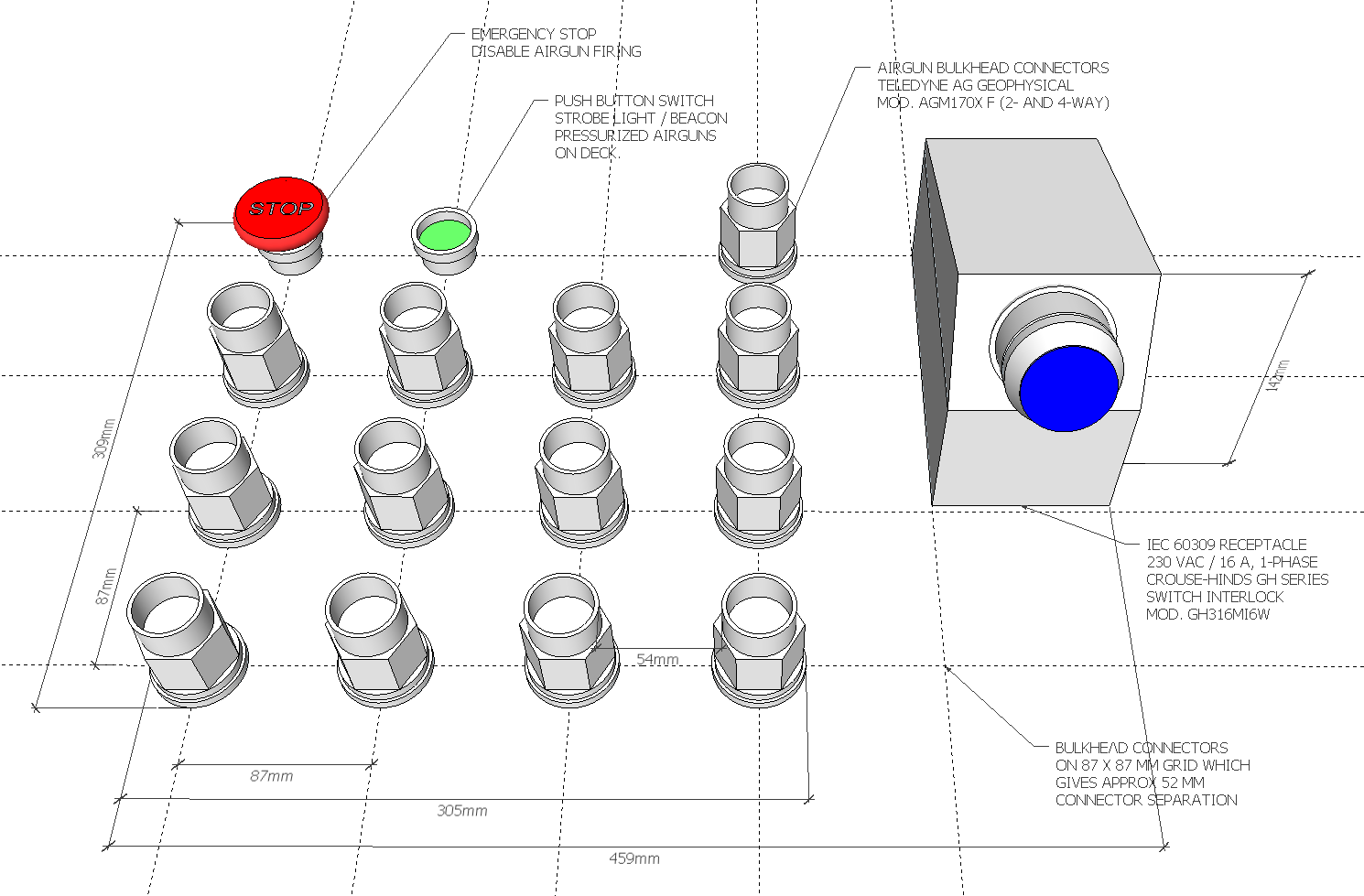

Draft layout of connector panel, 3rd deck port side, for 2+1 GI-Guns (each gun requiring 3 ea 2-way connectors), and 4 ea normal "Bolt" airguns (each requiring a single 4-way connector). Thus (3x3) + 4 = 13 bulkhead connectors are needed. Connector panel on starboard side should only accommodate 4 ea Bolt airguns - not any GI-guns. Click to enlarge.

Recommended minimum connector separation, under various conditions.

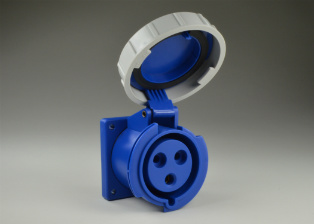

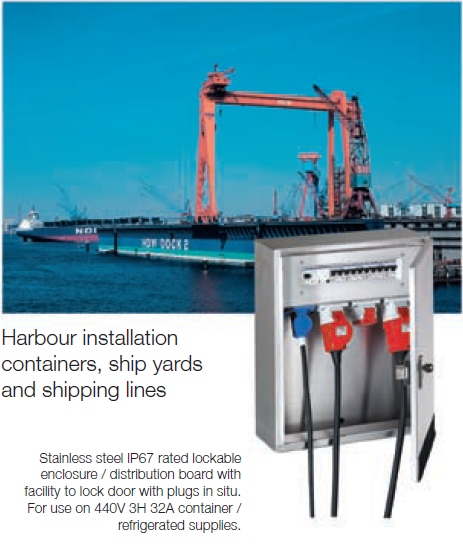

From CEE Norm UK Ltd catalog. This enclosure is made by Bals Elektrotechnik.

NOTE: 230Vac connector should be IEC 60309 type industrial - also splashproof. Eaton Crouse-Hinds series looks promising - here are the specifications.

Manufacturers of marine enclosures and connector panels

Technor enclosures looks fine
SOHOME, Bergen, Norway
TRANBERG Electrical De-Ice/Anti-Ice
STAHL-Syberg AS
Bartec-Technor
Størksen Rustfri
Atex Enclosures, built to customers dimensions
Hawke International, enclosures for harsh environments
Emerson Industrial 316 L enclosures
Pepperl & Fuchs:
- P & F Enclosures
- Pepperl & Fuchs Custom Cabinets & Junction Boxes (PDF)
Atex Delvalle - Enclosures and distribution boxes looks promising, deliveries to Johan Sverdrup offshore platforms
TRATEC:
Thorne & Derrick, supplier
T & D Enclosures

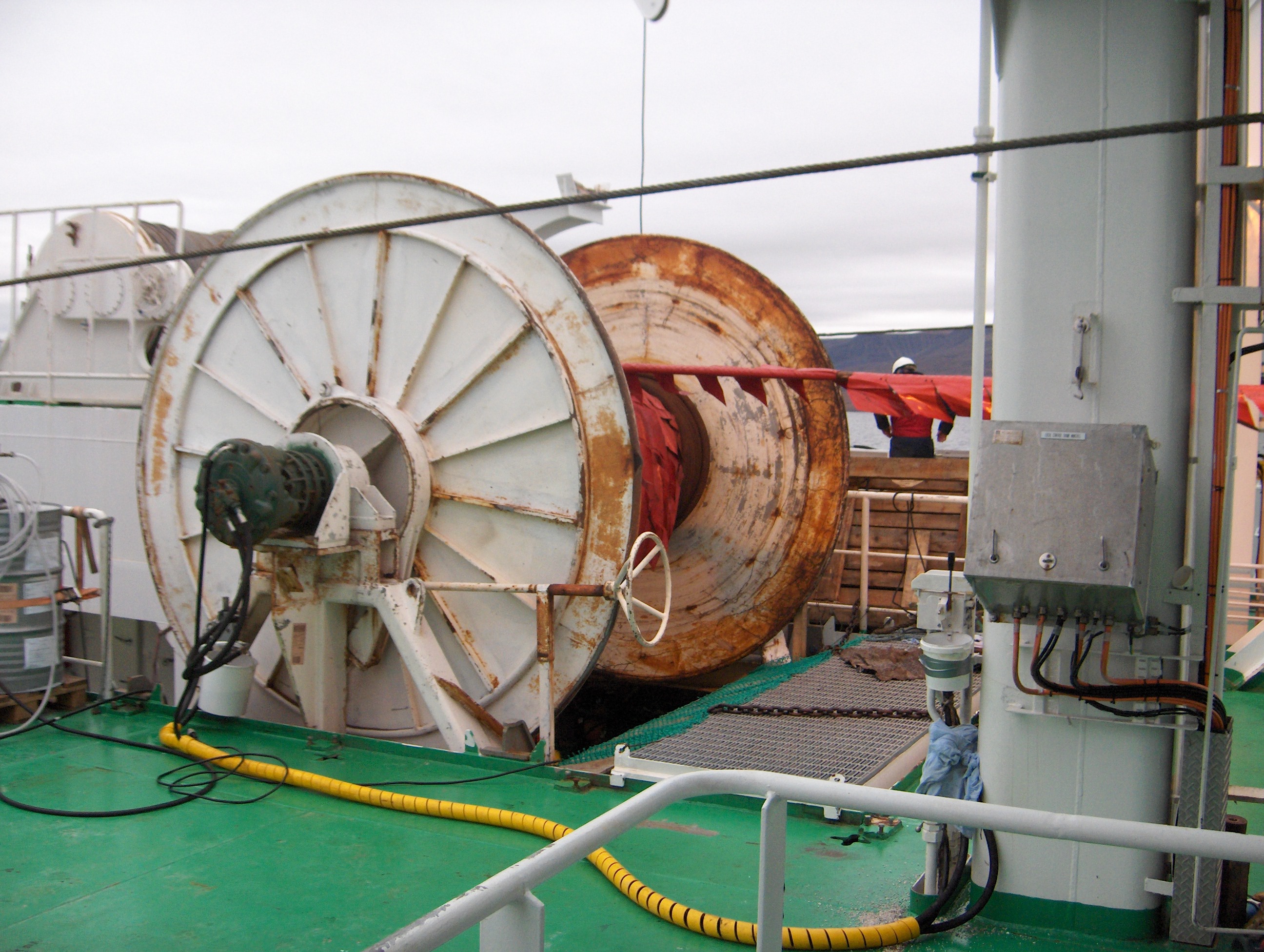

R/V "G.O.SARS 2004: Winch for 3 km streamer. Control panel box on the right is what we're looking for. Click to enlarge.	Rustfri AS delivers 316L enclosures to customer's measurements.

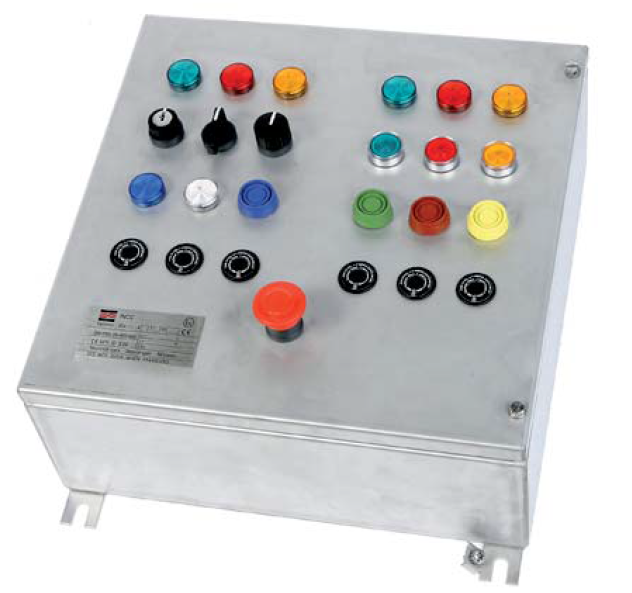

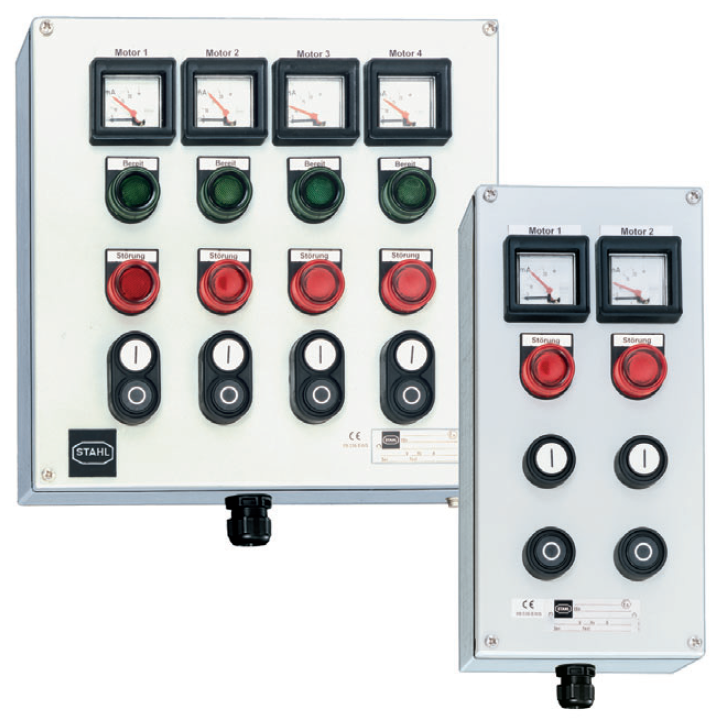

Control station manufactured by Bartec Technor, AISI 316L, to IP66 (67 and 68 available upon request) - IP68 (immersion beyond 1m) might be required - refer to building specifications. Temp rating: -40ºC to +60ºC. We do not need Ex certification.	Control station manufactured by Stahl-Syberg AS, AISI 316L, optionally with hinges cam locks or screw-on cover.* Ex certification not needed.*

AIRGUN / MAGNETOMETER CABLES ON RV "G.O. SARS (2003). For reference only.

##############################################################################
### These documents were made when RV "G.O SARS" was built in 2003 - for reference only.
### They DO NOT APPLY to new research vessel "Kronprins Haakon".
##############################################################################

R/V "G.O. SARS": Airgun & magnetometer junction boxes, 2003 - click to enlarge.

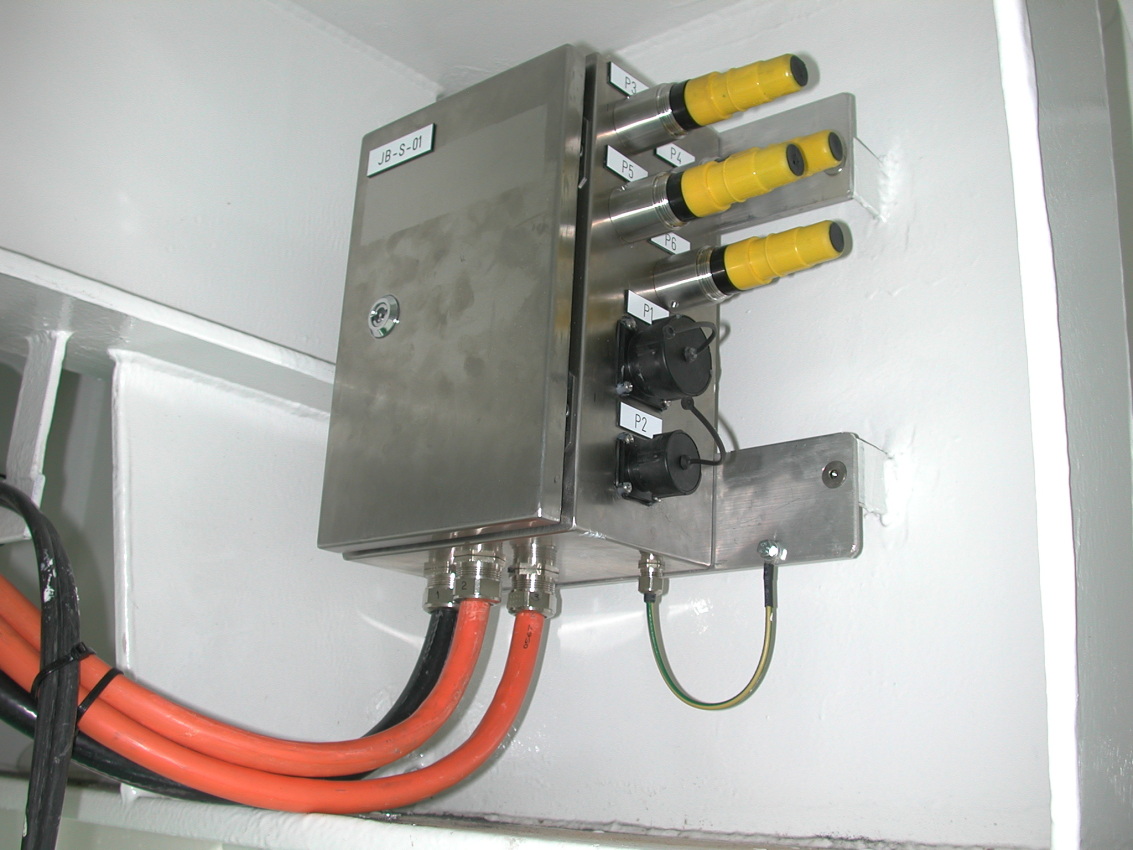

*R/V "G.O.SARS", JB-S-01*: AIRGUN / HYDROPHONE JUNCTION BOX, 2nd deck, approx. frame 5, close to Gun Winch. Ref. drawing no.: JB-S-01. NOTE: For reference only.	*R/V "G.O.SARS", JB-S-02*: 3rd deck, approx. frame 5, starboard side. Ref. drawing no.: JB-S-02. NOTE: For reference only.

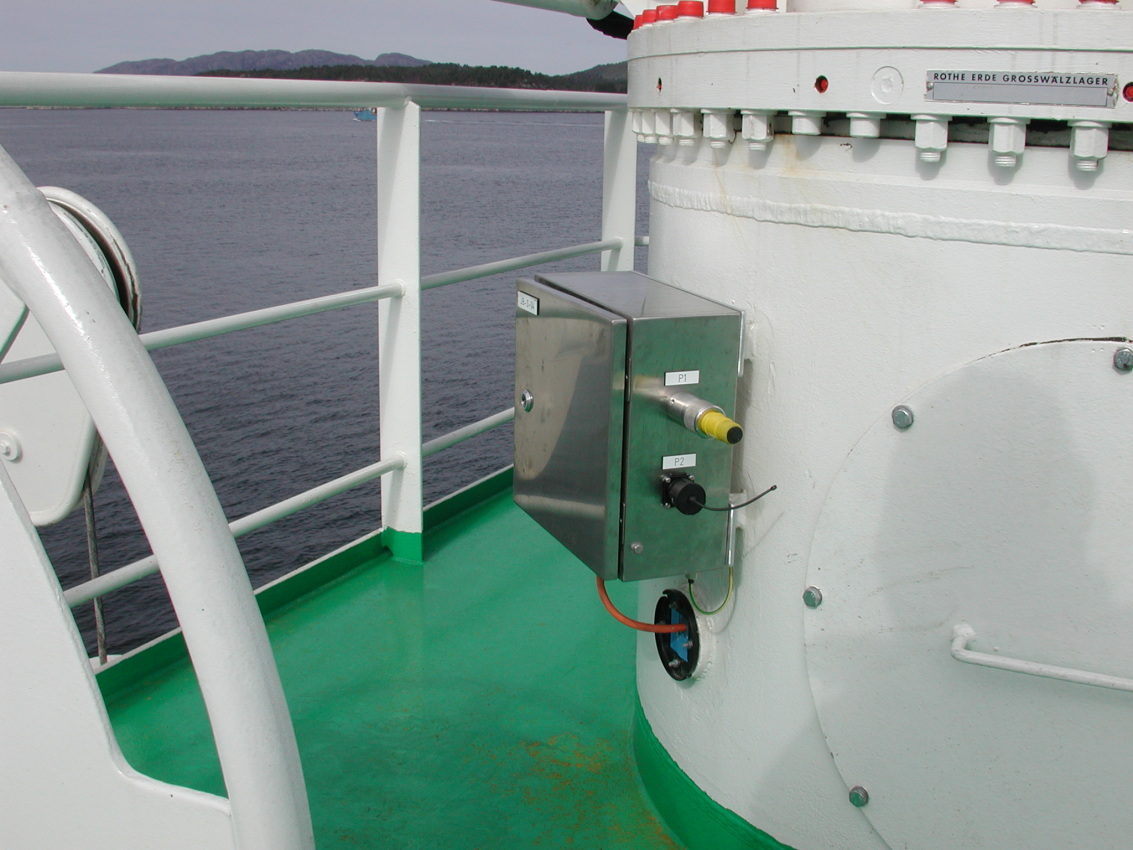

*R/V "G.O.SARS", JB-S-03*: AIRGUN / HYDROPHONE JUNCTION BOX, 3rd deck, approx. frame 5, port side. Ref. drawing no.: JB-S-03. NOTE: For reference only.	*R/V "G.O.SARS", JB-S-04*: MAGNETOMETER JUNCTION BOX, 4th deck, trawl gantry, starboard side. Ref. drawing no.: JB-S-04. NOTE: For reference only.

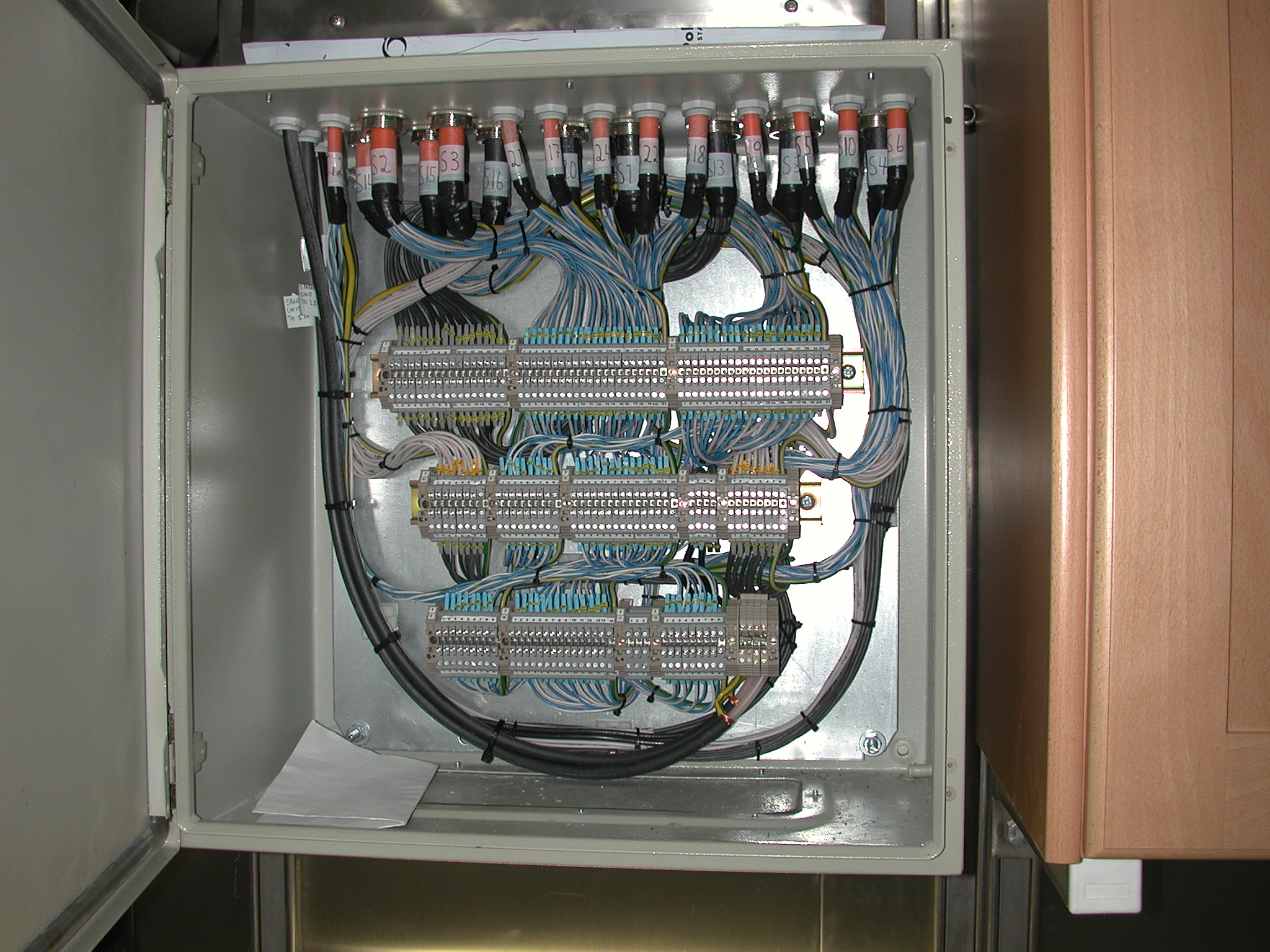

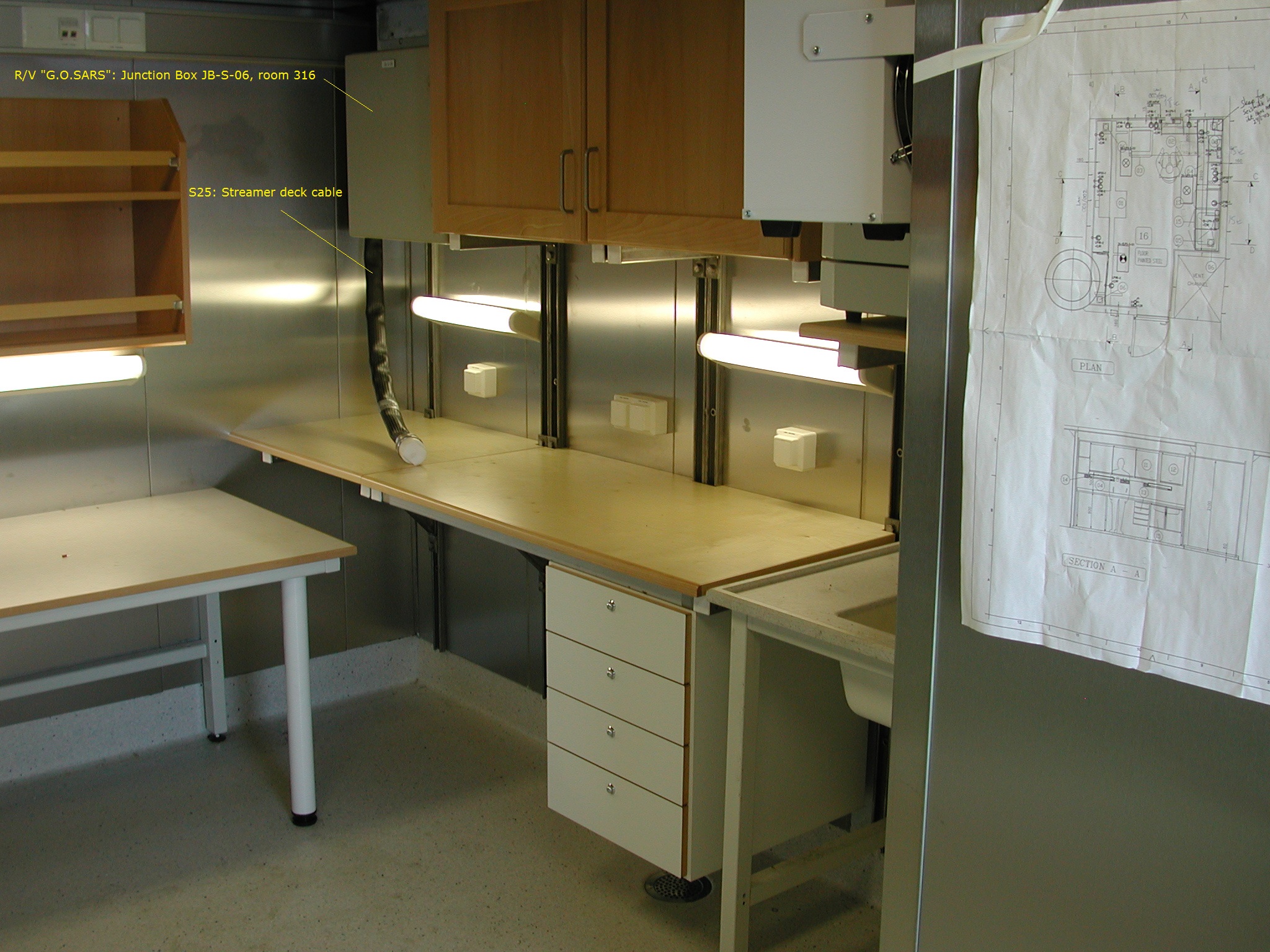

*R/V "G.O.SARS", JB-S-06*: JUNCTION BOX, 3th deck, lab 316. Ref. drawing no.: JB-S-06. NOTE: For reference only.	*R/V "G.O.SARS", JB-S-06*: JUNCTION BOX, 3th deck, lab 316. Ref. drawing no.: JB-S-06. NOTE: For reference only.

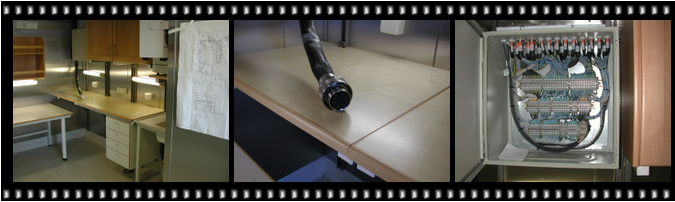

R/V "G.O. Sars" photos 7 April 2003 that shows seismic cable junction boxes, and deck cables. Click to open photo album.

Airgun/hydrophone bulkhead connector

Each airgun requires two cable pairs, one for firing the gun (the solenoid) and one for the sensor - 4 wires in total. All these four wires used in one connector, as shown below (click to open data sheet).

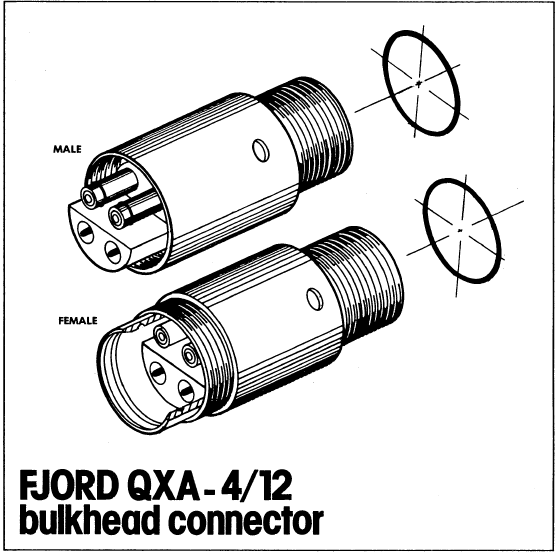

Fjord QXQ-4/12 bulkhead connector used on airgun take-out on junction boxes for R/V "G.O.SARS" in 2003. Click to open data sheet. Similar bulkhead connectors are most likely also available from alternate supplier AG Geophysical.

RV "G.O. SARS" 2003 seismic, gravi- and magnetometer wiring. For reference only.

This set of 11 drawing were produced in 2002/3 when RV "G.O. Sars" was constructed. They can serve as an example.

Item	Drawing - click to enlarge	Description	File name	Date	Rev.	Download format

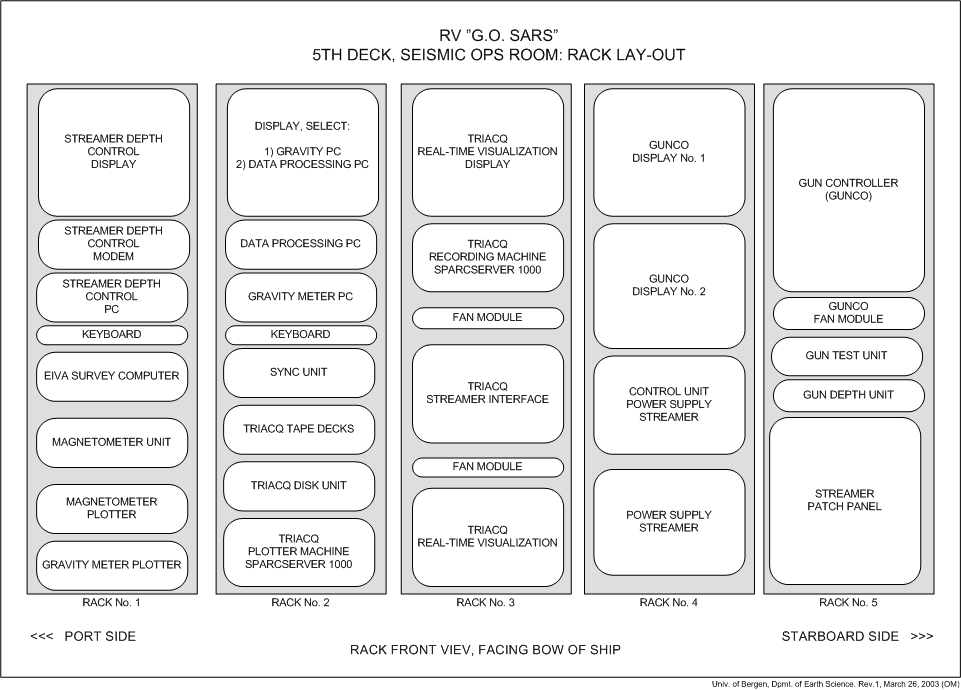

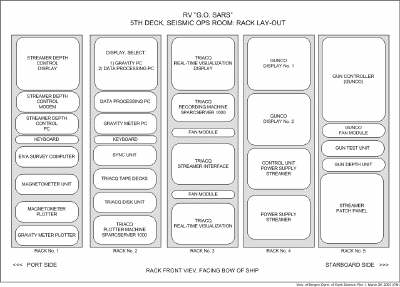

1	For reference only.	Rack layout, 5th deck, seismic ops room	racks-seismics-ops-room.vsd	26 March 2003	1.0

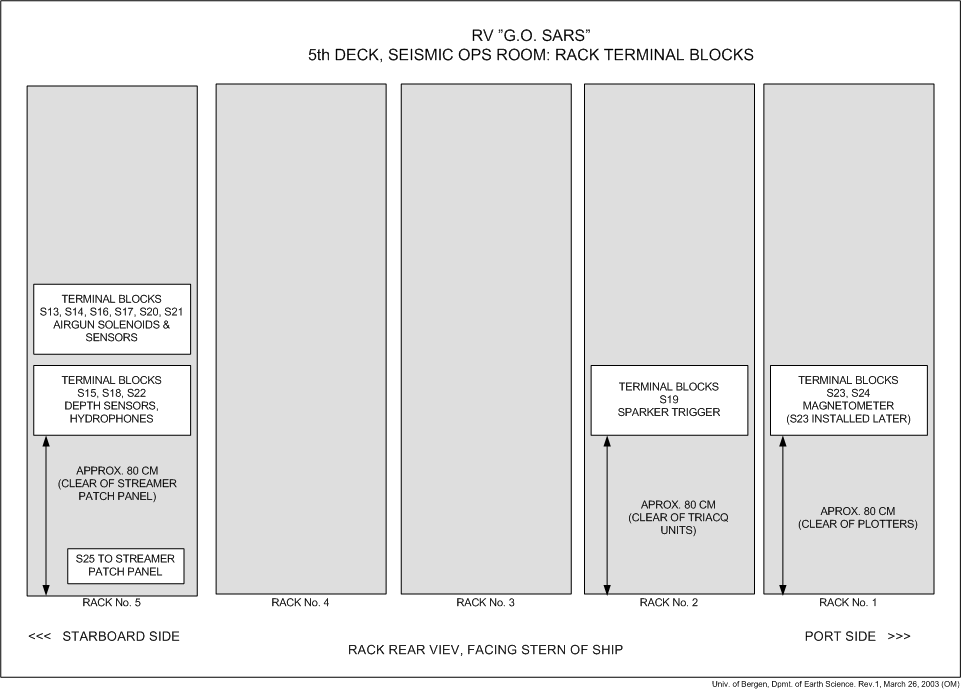

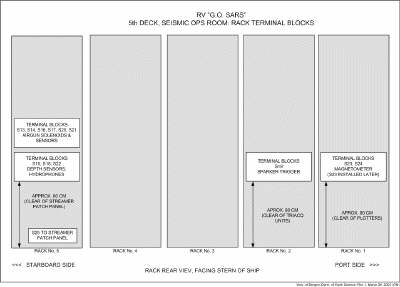

2	For reference only.	Terminals in racks, 5th deck, seismic ops room	terminal-blocks-seismics-ops-room-ver-1.vsd	26 March 2003	1.0
3	For reference only.	Main diagram	cables-seismic-01-1A.vsd	26 Nov. 2002	1.0

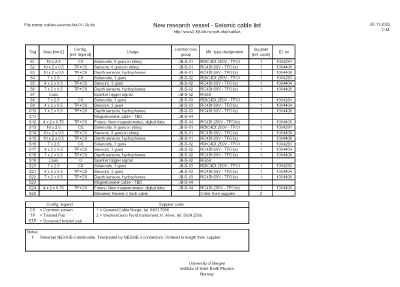

4	For reference only.	Cable tag list	cables-seismic-list-01-1A.xls	26 Nov. 2002	1.0

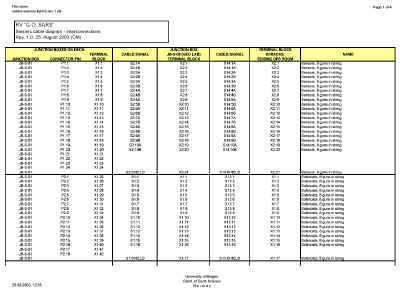

5	For reference only.	List of interconnections	cables-seismic-list-02-rev-1.xls	25 Aug. 2003	1.0

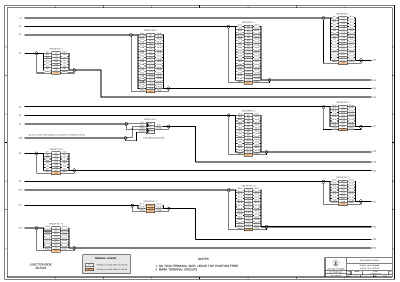

6	For reference only.	Junction Box JB-S-06 3rd deck, lab. 16	jb-s-06-rev1.vsd	27 Feb. 2003	1.0

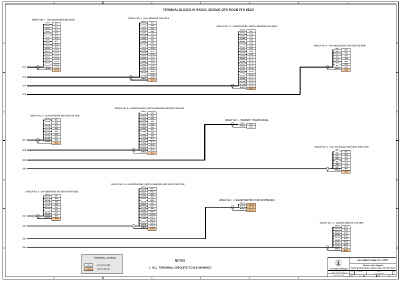

7	For reference only.	Terminal blocks in racks, seismic ops room 5th deck	jb-s-05-rev2.vsd Change history, rev. 2: Mirrored all terminal groups. Cable entries will then match those on drawing "jb-s-06-revX". Text describing all terminal groups.	25 Aug. 2003	2.0

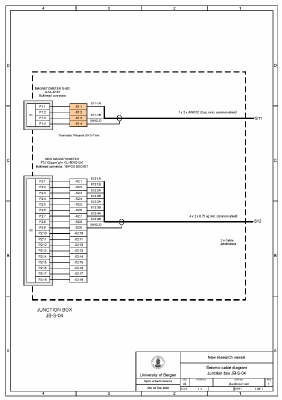

8	For reference only.	Junction Box JB-S-04 4th deck, trawl gantry, starboard side	jb-s-04-rev1.vsd	28 Feb 2003	1.0

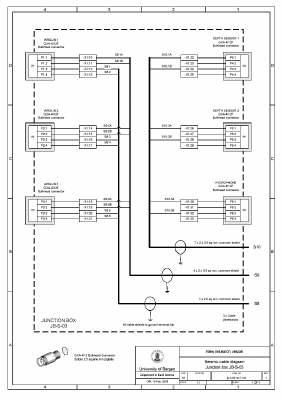

9	For reference only.	Junction Box JB-S-03 3rd deck, approx. frame 5 port side	jb-s-03-rev1.vsd	10 Feb 2003	1.0

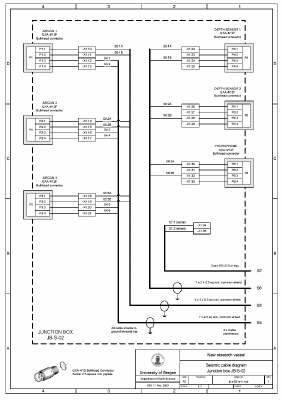

10	For reference only.	Junction Box\\ JB-S-02 3rd deck, approx. frame 5 starboard side	jb-s-02-rev1.vsd	11 Feb. 2003	1.0

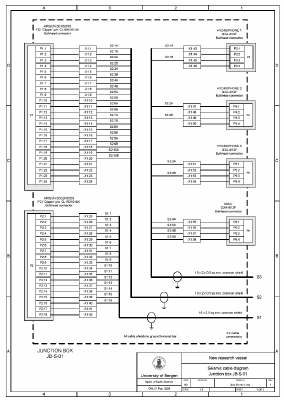

11	For reference only.	Junction Box JB-S-01 2nd deck, approx. frame 5 close to Gun winch	jb-s-01-rev1.vsd	21 Feb. 2003	1.0

G.O.SARS: 5.deck, seismic lab - cable termination. For reference only.

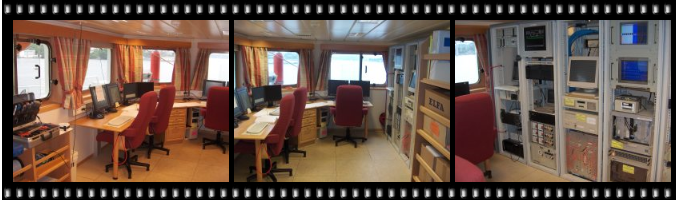

Click to open photo album, R/V G.O. Sars, seismic lab, 5th deck, 2004. For reference only.

AIRGUN CABLES ON RV "HÅKON MOSBY (1996). For reference only.

Item	Drawing - click to enlarge	Description	File name	Date	Rev.	Download format

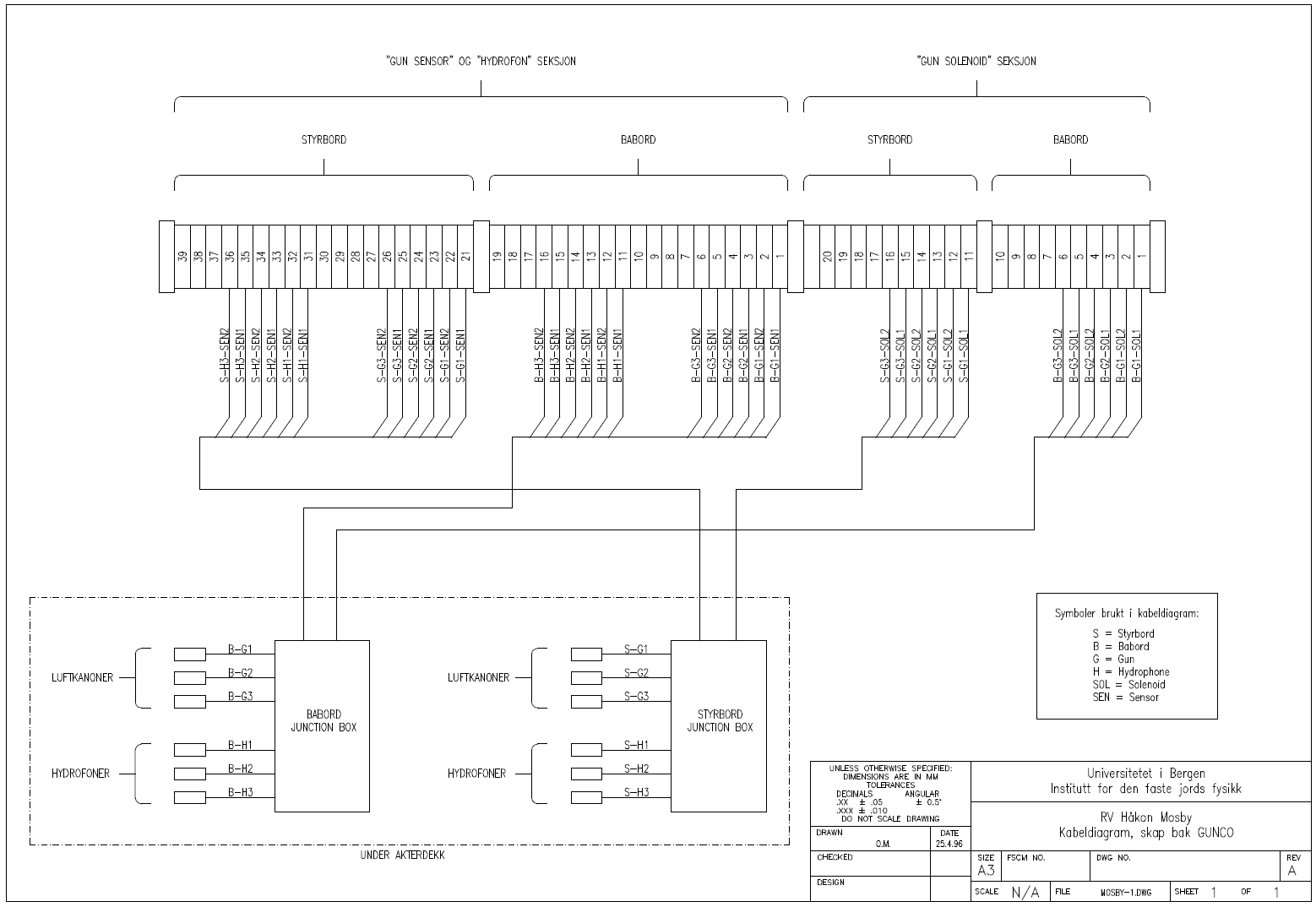

1	For reference only.	Airgun cables, between Gunco rack (instrument room) and junction boxes below deck, port and starboard side aft.	RV-Haakon-Mosby-seismic-cables-rev-A-25APR1996.pdf	25 April 1996	A		-
